HEATED CABINET SHELVING INSTALLATION/
OPERATION
SHELF INSTALLATION:
A. Hook shelf clips onto shelf standards.
B. Position all four shelf clips equal in distance from the
floor for flat shelves.
C. Shelves are oriented so that cross support bars are fac-
ing down.
D. Place shelves on shelf clips making sure all
corners are seated properly.
INSTALLING SHELF STANDARDS IN HEATED CABINETS:
(See Image 2)
A. When installing shelf standards make sure the num-
bers on the standards are facing up. These numbers
help with installing shelf clips at a level height.
B. All standards are installed in the upper most thread-
ed hole near the ceiling of the cabinet. This will leave
a threaded hole vacant below each shelf standard. A
plastic plug is provided
to cover the open threaded slot.

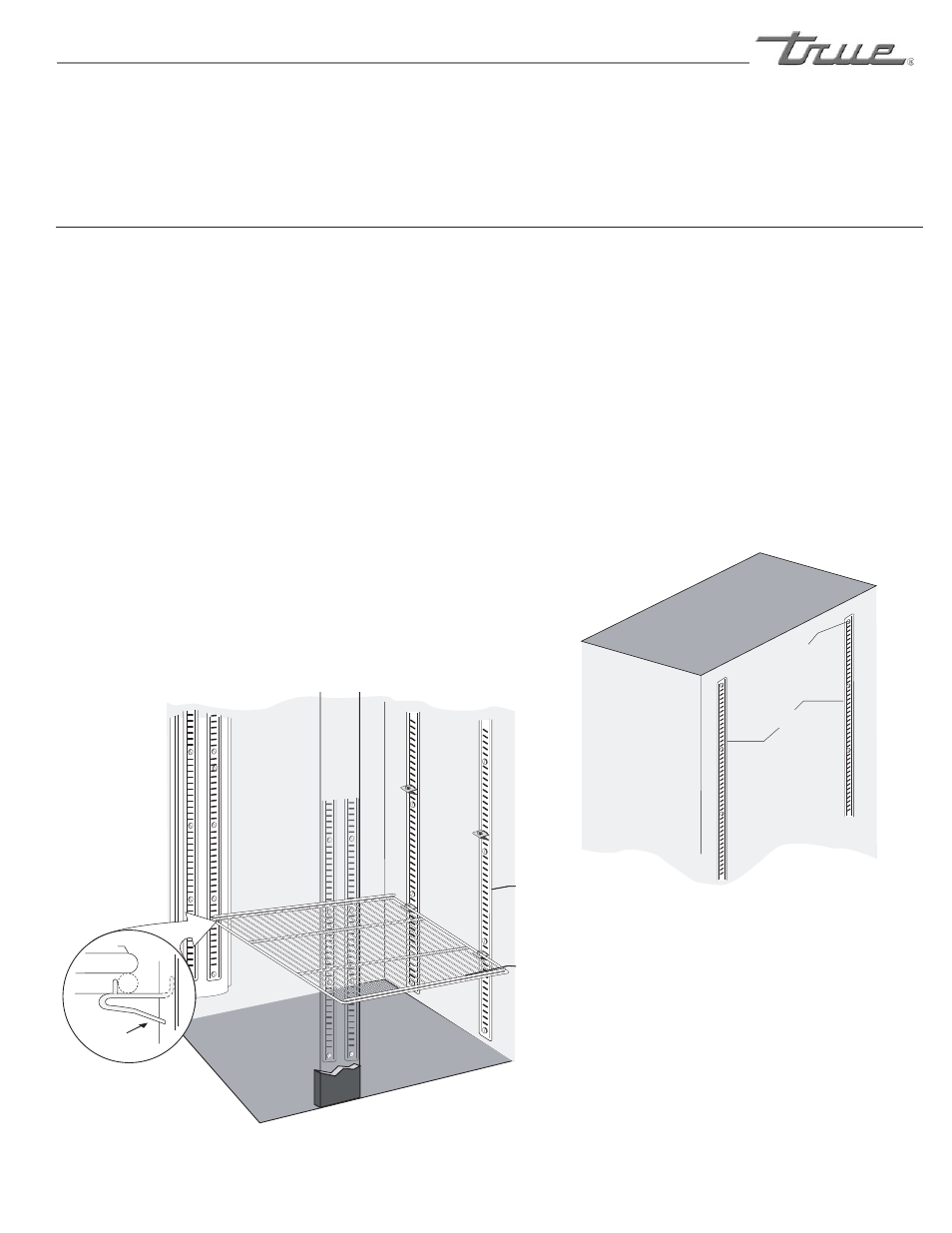

Image 1
Image 2
