Tyco Electronics 17A2 - Manual (Page 43)

Elo TouchSystems 17A2 User Guide 43

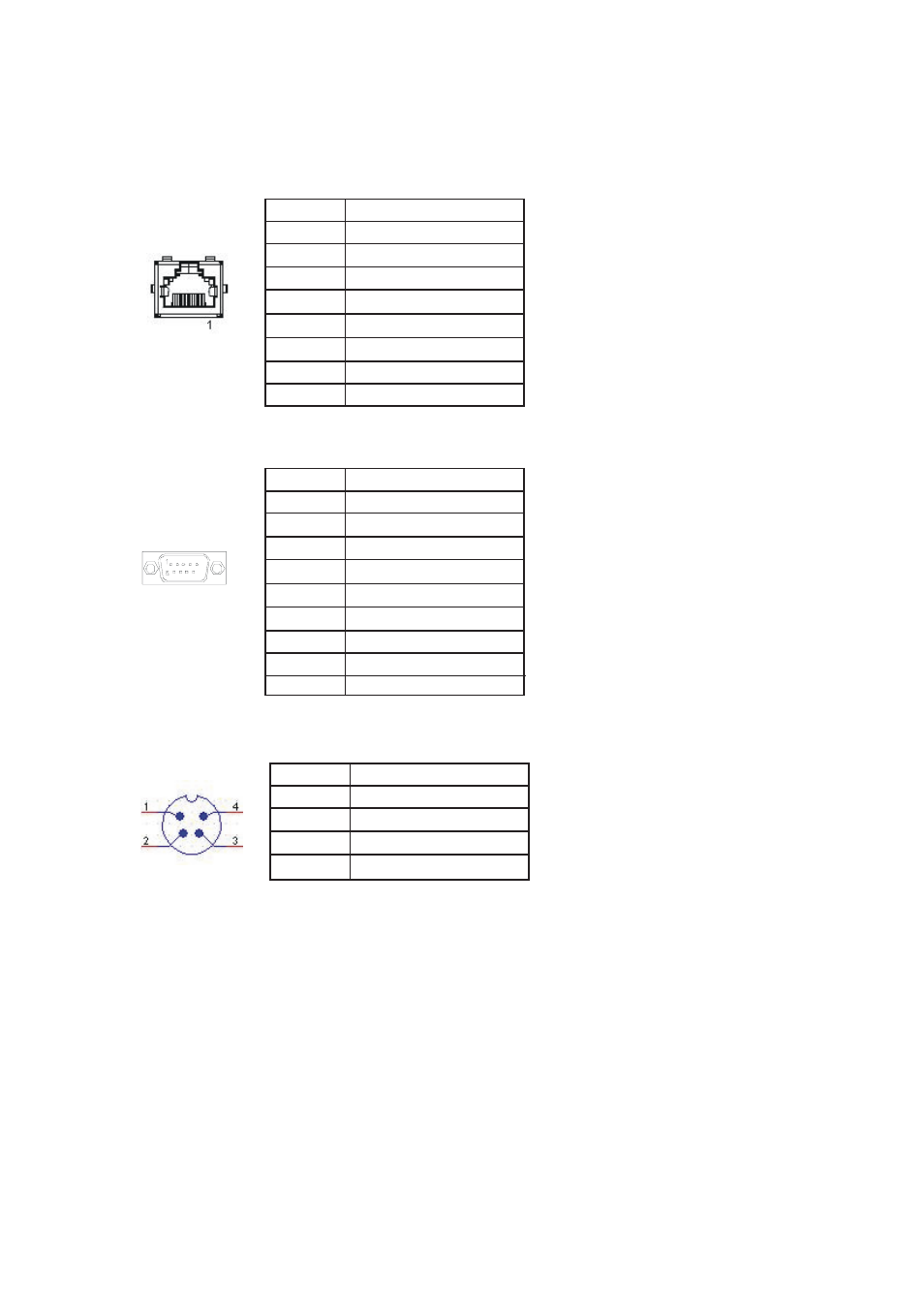

RJ45 connector Pin Definition
Pin # Signal Name
1
2 Receive Data (RD)
3 Clear to Send (CTS)
4 Signal Ground
5 Transmit Data (TD)
6 Request to send
7
8
Power Input Pin Definition
Pin # Signal Name
1 +12V
2 Ground
3 Ground
4 +12V
DB9 connector Pin Definition
Pin # Signal Name
1
2 Receive Data (RD)
3 Transmit Data (TD)
4
5 Signal Ground
6
7 Request to send
8 Clear to Send (CTS)
9
