Testing the Cash Drawer Port
To test the cash drawer port, first ensure that a cash drawer port is attached to the
touchcomputer using a cable with the correct wiring definition. For additional
information, see Cash Drawer Port Signal Definition and Control section on page 44.
1. Double-click the Cash Drawer Test icon to start the test application.

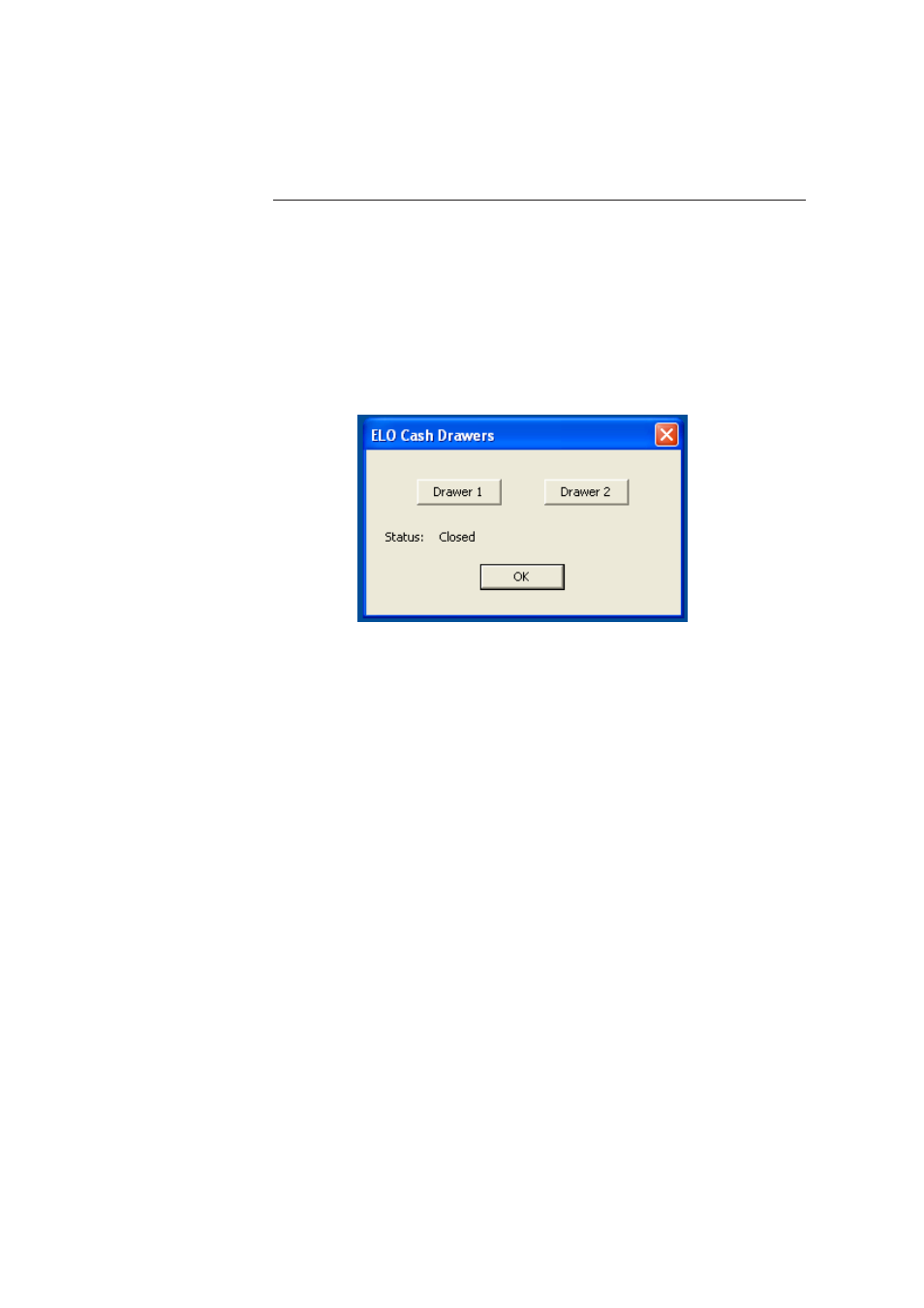

2. Click the Drawer 1 or Drawer 2 box to open the cash drawer. The status line indicates
whether the drawer is open or closed.
