Panels layout, Function description – Tripp Lite VGA Over Cat5 Extender B130-101 User Manual
Page 3
3

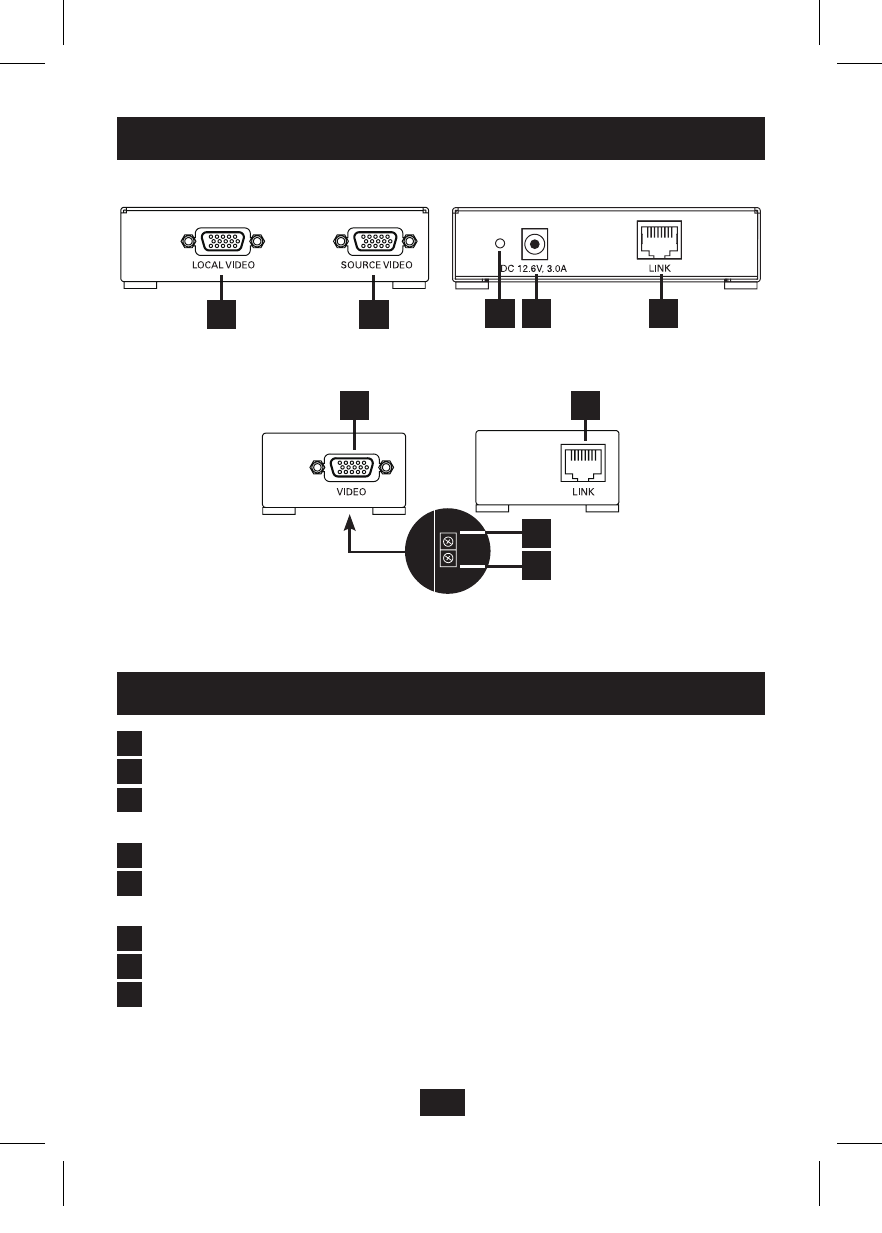

Panels Layout
Local Unit
Receiver Unit
Receiver
Bottom Panel
3
7
8
4
5
6
5
1
2
Function Description
1
Local Video-Out Port: HD15 female connector
2
Source Video-In Port: HD15 female connector
3
Local Unit Power LED: Power LED illuminates when unit is receiving
power
4
Local Unit Power Jack: Power plug for 12.6V, 3A DC power supply
5
Link: RJ-45 Modular Jack which connects to the Local Unit and the
Remote Unit
6
Remote Video-Out Port: HD15 female connector
7
EQ Adjustment: Adjust equalization length
8
Gain Adjustment: Adjust brightness
GAIN
EQ
200810164 93-2849.indd 3
12/1/2008 4:50:40 PM
