2 – Part names and functions
1
TASCAM GA-100CD

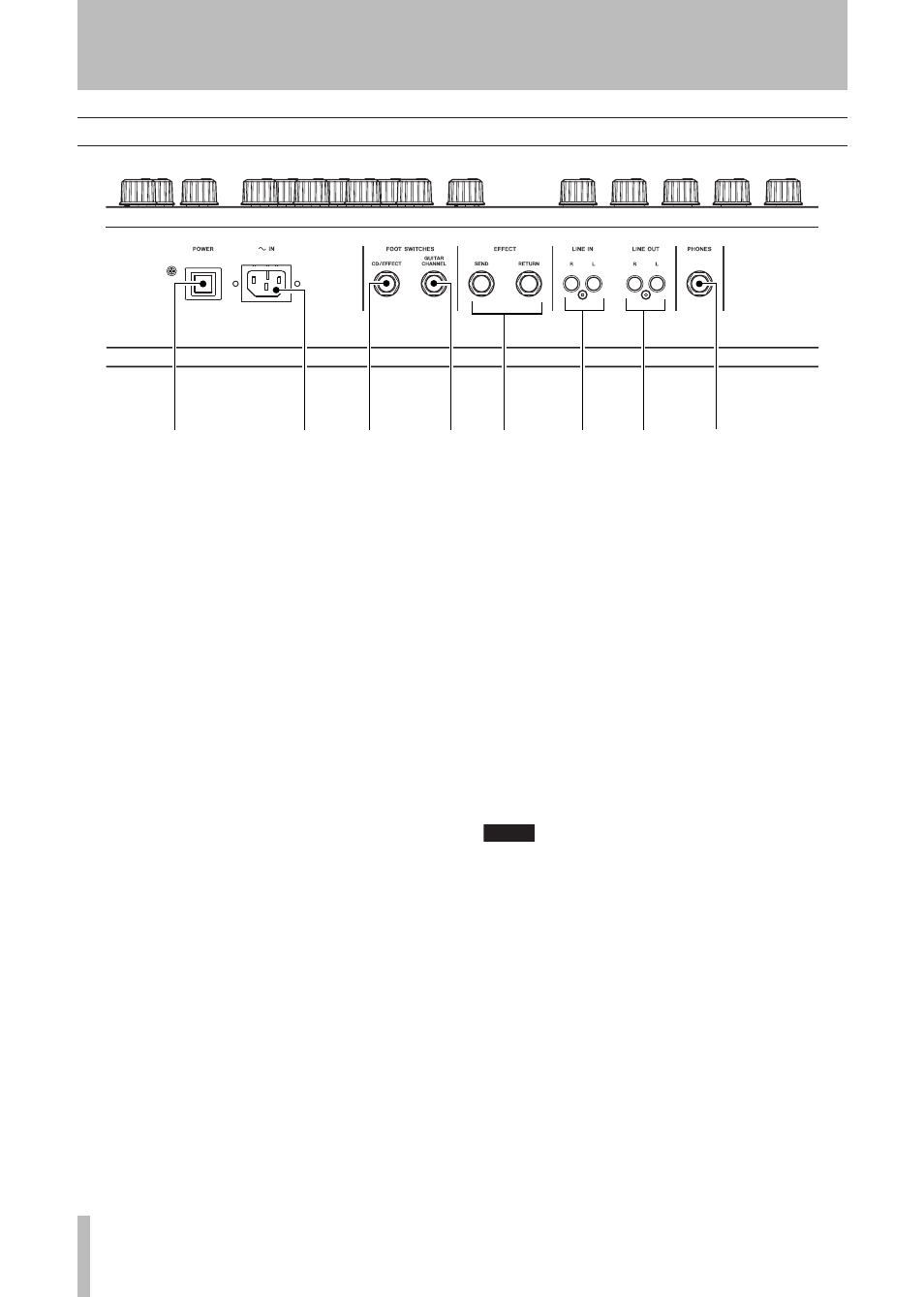

Rear panel
/ ! $ # % ^ & @
/ POWER switch
Press to turn the power ON and OFF.
! ~ IN
Use the supplied power cord to connect the amp
to an AC power outlet. Confirm that the voltage
matches that marked on the rear panel of your
GA-100CD amp.
@ CD/EFFECT FOOTSWITCH jack
Use a TASCAM RC-30P or similar footswitch
to control playback/pause, bank number, tuner
operation and other functions. Dual footswitch use
is possible. (See “Changing settings” on page 21.)
# GUITAR CHANNEL FOOTSWITCH jack
Use a TASCAM RC-30P or similar footswitch to
change between clean and overdrive channels.
$ EFFECT SEND and RETURN jacks
Use these to send the guitar signal to an external
effect loop after it has passed through the
GA-100CD’s preamp.
% LINE IN (L, R) jacks
Connect an external line level (-10 dBV) signal from
a synthesizer, guitar preamp, MD player or other
device. The signal from the external device is output
through the sub-speakers.
^ LINE OUT (L, R) jacks
Outputs the mix of MAIN MASTER VOLUME and
SUB MASTER VOLUME signals and the signal
from the LINE IN jacks at –10 dBV levels.
& PHONES jack
Connect standard stereo headphones to this 1/4"
jack to listen to CDs or practice alone.
Outputs the mix of
MAIN MASTER VOLUME and
SUB MASTER VOLUME signals along with the
input signal from the LINE IN jack.
NOTE
When the Phones jack is in use, the GA-100CD will
not output sound from its speakers.
