MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 6
5. ANALOG LINE SPECIFICATIONS
The MIU202T contains analog circuitry for connection to the public
conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex voice
grade leased lines or metallic lines (eg; pilot wires). The MIU202T will
also interface to Power Line Carrier or Microwave radio voice channel
networks.

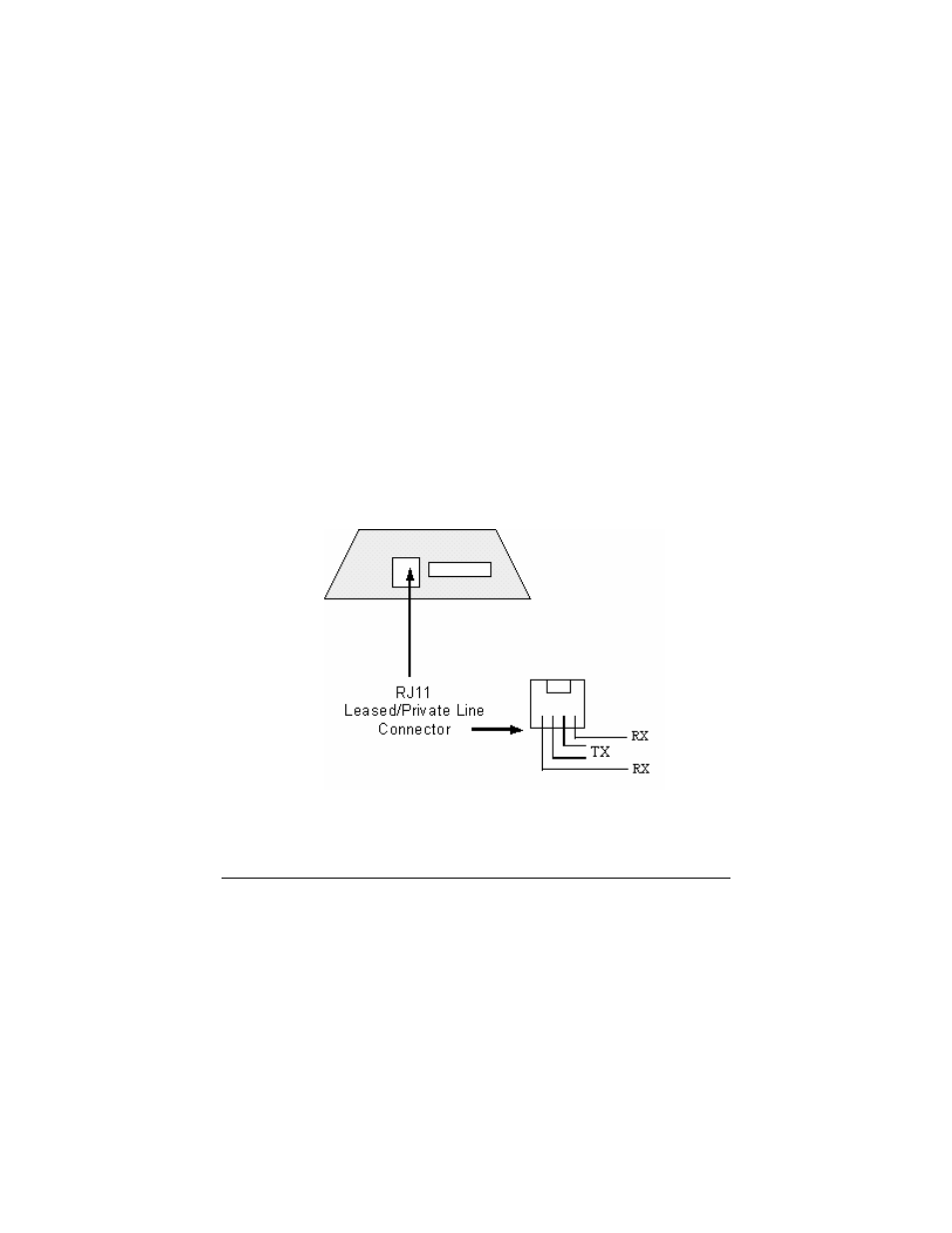

The MIU202T has an RJ-11terminated connector. The following lists the
MIU202T analog interfaces
Analog Line Type:
Conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex
voice grade or metallic lines or better.
Analog Line Specifications:
Bandwidth
300 Hz to 3400 Hz ( ±3dB)
Impedance 600 / 900 ohms , balanced
Frequency Response 400 to 3000Hz ( ±2dB)
Receiver Input Level -16dBm max.
Output Level +7 dBm
Noise Signal Level -48 dBmO
