Installation
Color Selection (select models)
Select models can be configured to match black or gray equipment. Switch the gray front panel
on the unit for the black front panel if included. If you wish to install an alternate color bezel
not included with your unit, call Customer Support at (773) 869-1234.

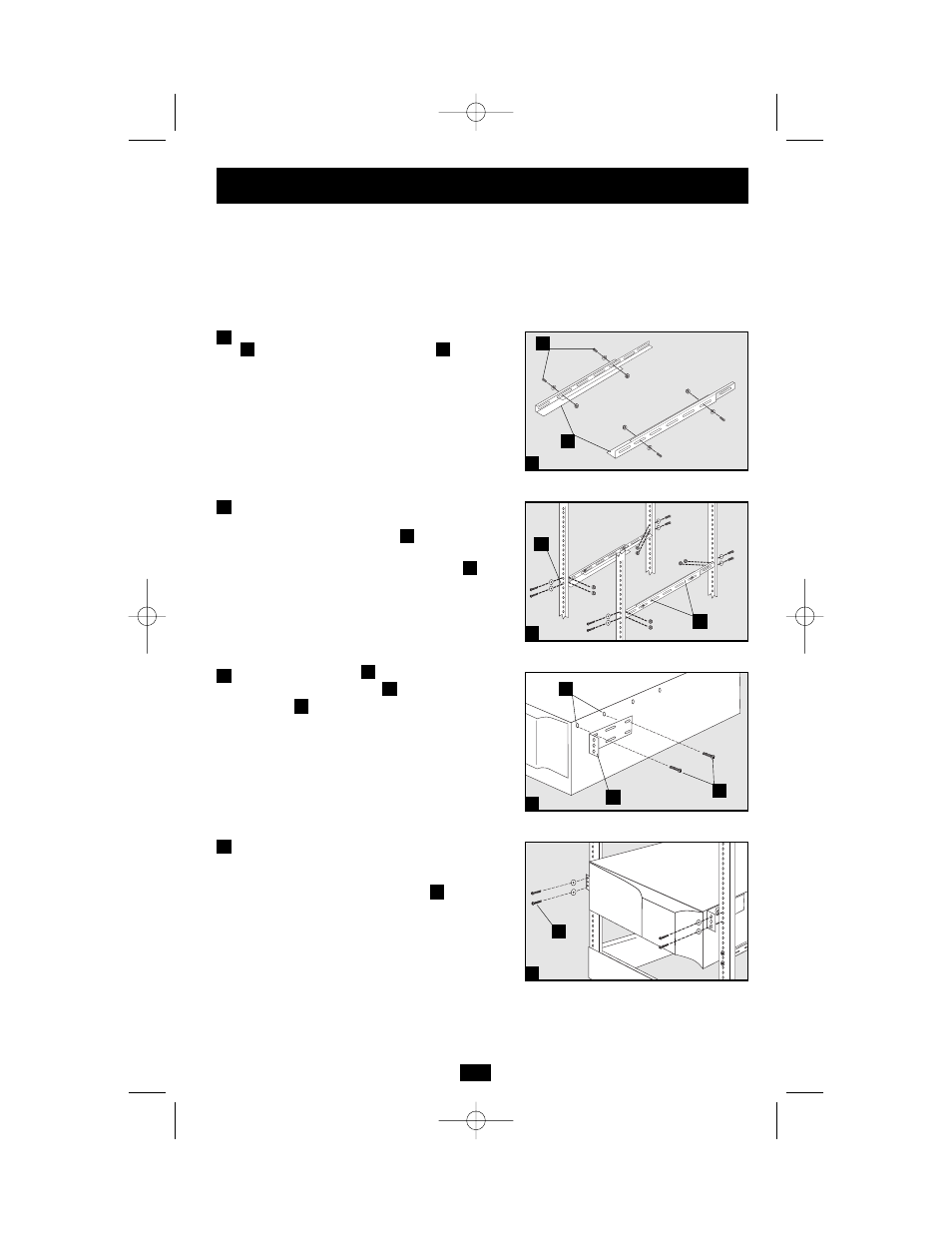

Single Unit Installation
Connect the shelves to the shelf extensions
using the included hardware . Leave
the screws slightly loose so that the shelves
can be adjusted in the next step.
Adjust each shelf to fit your rack, then mount
them in the lowest available space of your rack
with the hardware provided
. Note that the
support ledges should face inward. Tighten the
screws that connect the shelf segments
.
Attach mounting ears to the front mounting
holes of your equipment using the screws
provided . The ears should face forward.
Using an assistant if necessary, lift your
equipment and slide it onto the mounting
shelves. Attach your equipment to the rack by
passing user-supplied hardware
through
its mounting ears and into the rack rails.
G
F
E
D
B
C
B A
1
2
3
4
B
A
C
B
E
D
F
G
1
2
3
4
