TL-WN321G 54M Wireless USB Adapter User Guide

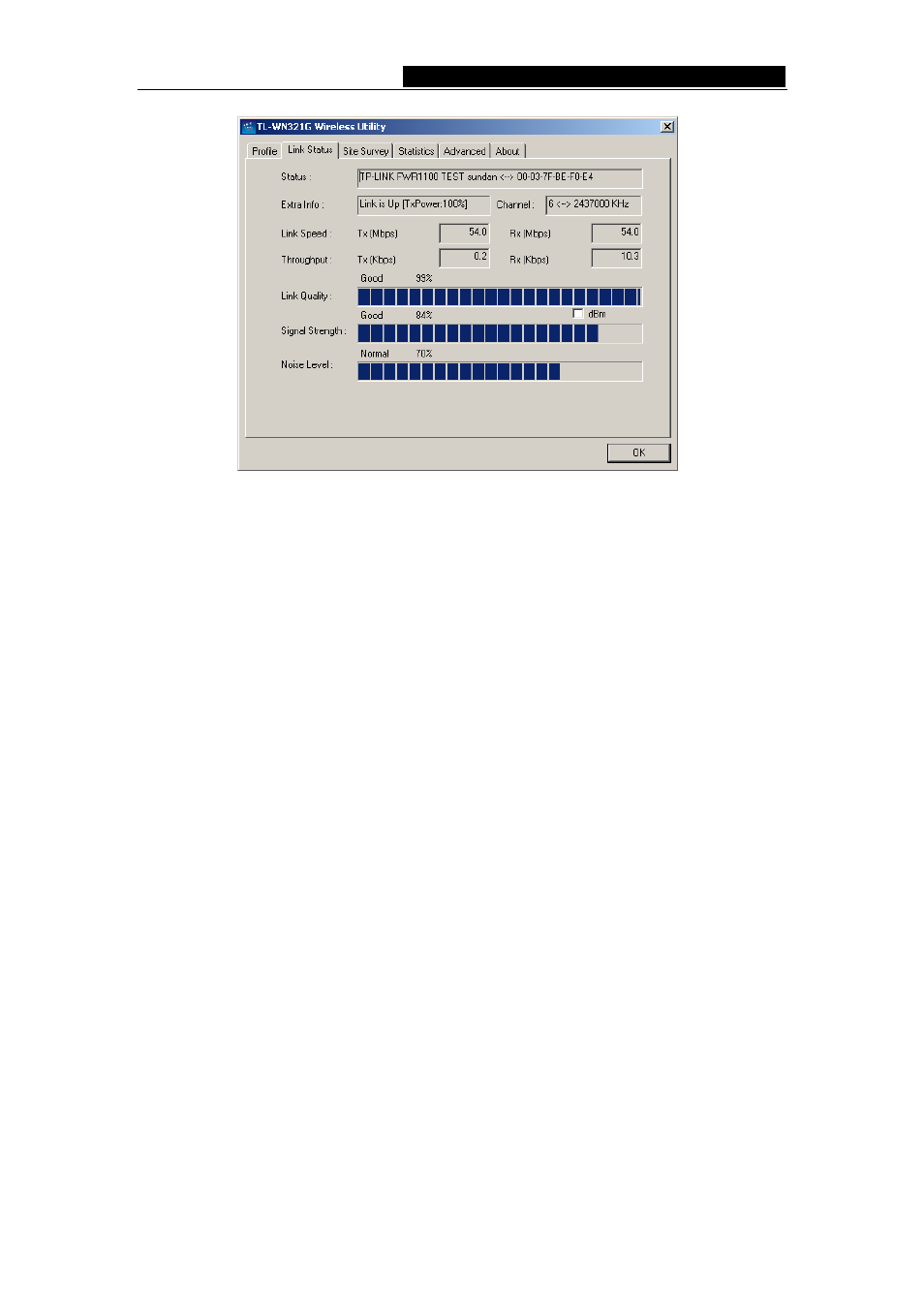

Figure 3-4 Link Status
The following table describes the items found on the Network Status screen.
¾ Status - Shows whether the station is connected to the wireless network, if not
connected, display RF is closed; if connected, display AP name and BSSID.
¾ Extra Info - Shows link status and the current channel in use.
¾ Link Speed - Shows the current max Transfer rate, unit is Mbit/sec.
¾ Throughput - Displays Tx and Rx rate, unit is Kbits/sec.
¾ Link Quality - Shows the quality of the signal.
¾ Signal Strength - Shows the strength of the signal.
3.3 Site Survey
Click the Site Survey tab of the Utility and the Site Survey screen will appear, figure 3-5.
On the Site Survey screen you can scan the Available Infrastructure and Ad Hoc
Networks.
- 11 -
