Arraying and Rigging
TCS series
TCS series Arraying and Rigging - Page 5

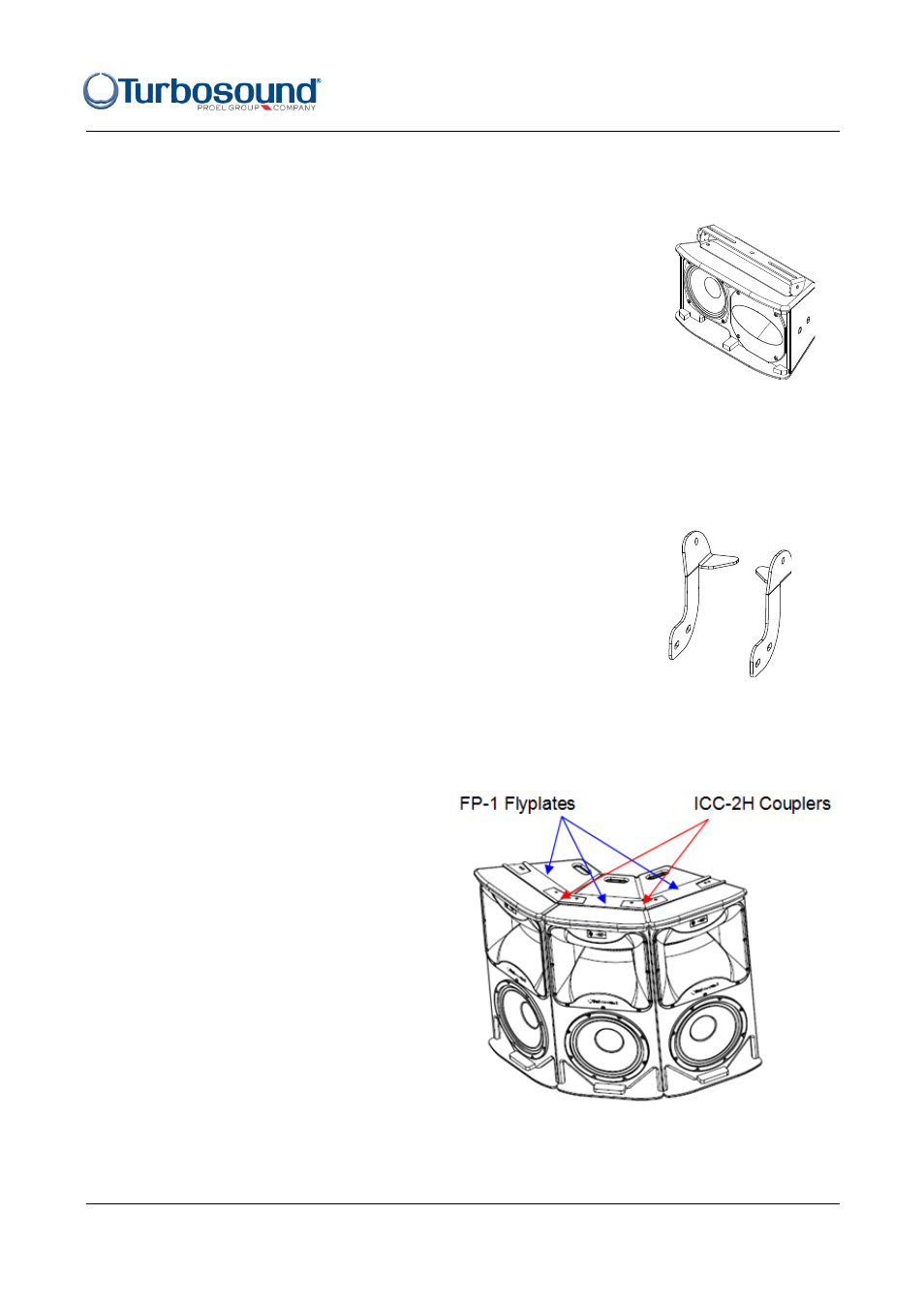

SB-61 07G0375
The SB-61 is a swivel bracket used to hang the TCS-61 in standalone
applications such as ceiling mounting in bars or clubs, or as an under-
balcony fill. It consists of two parts: a ceiling plate and a speaker plate,
allowing each part to be fixed individually and then assembled and
angled to achieve the desired coverage.
The SB-61 can also be used to hang the TCS-61 underneath the wider
TCS-152 cabinet, with the facility to alter the downward angle.
ICC-61 07G0370
To hang the TCS-61 as a downfill speaker underneath the TCS-122, you
will need a pair of ICC-61 inter-cabinet links fitted between the cabinets
which positions the TCS-61 at an optimum angle to the TCS122.
Following are some diagrams that illustrate these components and kits in action.
In this example cluster three TCS-122
cabinets are tight packed together using
FP-1 flyplates on top and bottom and
tied together with ICC-2H couplers. The
horns are rotated to 40°h by 90°v and
the cluster produces combined
coverage of 120°h by 90°v. Pick up the
array using M10 eyebolts attached to
the inside flypoints on the two outer
boxes. Parts required:
3 x FP-1 kits (6 pcs)
2 x ICC-2H kits (4 pcs)
2 x M10 eyebolts
