Arraying and Rigging
TCS series
TCS series Arraying and Rigging - Page 3
cabinets where appropriate.
Flying multiple cabinets
When creating loudspeaker arrays the essential components are a pair of steel flyplates fitted to the
sides of each flown cabinet, ensuring that all the rigging is steel-to-steel without any load being taken
through the cabinets’ woodwork. Sets of joiners mate with the flyplates to connect one cabinet to the
next adjacent cabinet.

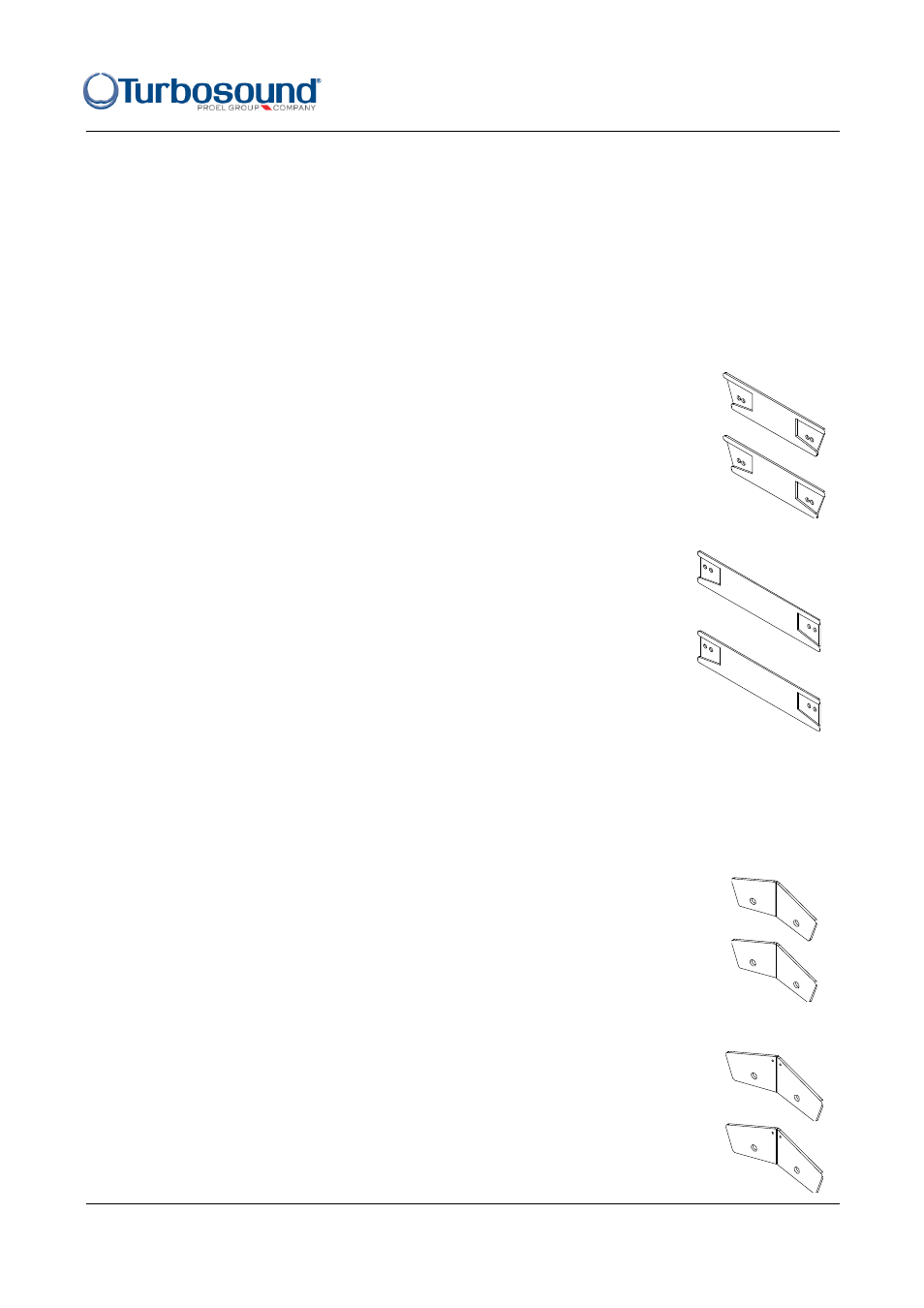

Following is a summary of the kits required and their component parts.
FP-1 KIT 07G0335
Consists of a pair or steel flyplates that fit both the TCS-122 and TCS-152 cabinets.
1 x FP-1 kit is required for each cabinet that is to be arrayed.
The FP-1 kit includes two flyplates, four M10 x 40mm bolts and four M10 spring
washers.
FP-2 KIT 07G0340
Consists of a pair of steel flyplates for the flyable TCS-B15A and TCS-B15B
subs. 1 x FP-2 kit is required for each sub cabinet. The TCS-B15A is
dimensioned to fly with the TCS-122, while the TCS-B15B is dimensioned to fly
with the TCS-152.
The FP-2 kit includes two plates, four M10 x 40mm bolts and four M10 spring
washers.
With the flyplates installed on each box to be flown, now select the appropriate inter-cabinet couplers
to connect the flyplates from one box to the flyplates of another.
ICC-2H KIT 07G0345
A pair of steel inter-cabinet couplers for linking two TCS-122 cabinets together.
The couplers fit into the recesses provided in the flyplates and are secured using
the M10 bolts and washers that are supplied with the FP-1 flyplate kits.
ICC-3H KIT 07G0350
A pair of steel inter-cabinet couplers for linking two TCS-152 cabinets together.
The couplers fit into the recesses provided in the flyplates and are secured using
the M10 bolts and washers that are supplied with the FP-1 flyplate kits.
