10
Data Entry: Create a menu of screens for changing different parameters .
ANNUNCIATOR LEDs: The OIS10 has 2 user definable LEDs, the OIS15 has 4 user definable
LEDs. Each LED can be turned ON or OFF when a designated coil or bit in the PLC is ON or
OFF. Each designated LED can also be turned ON when one of the following occurs: A register
value is less than, equal to, or greater than a specified limit.

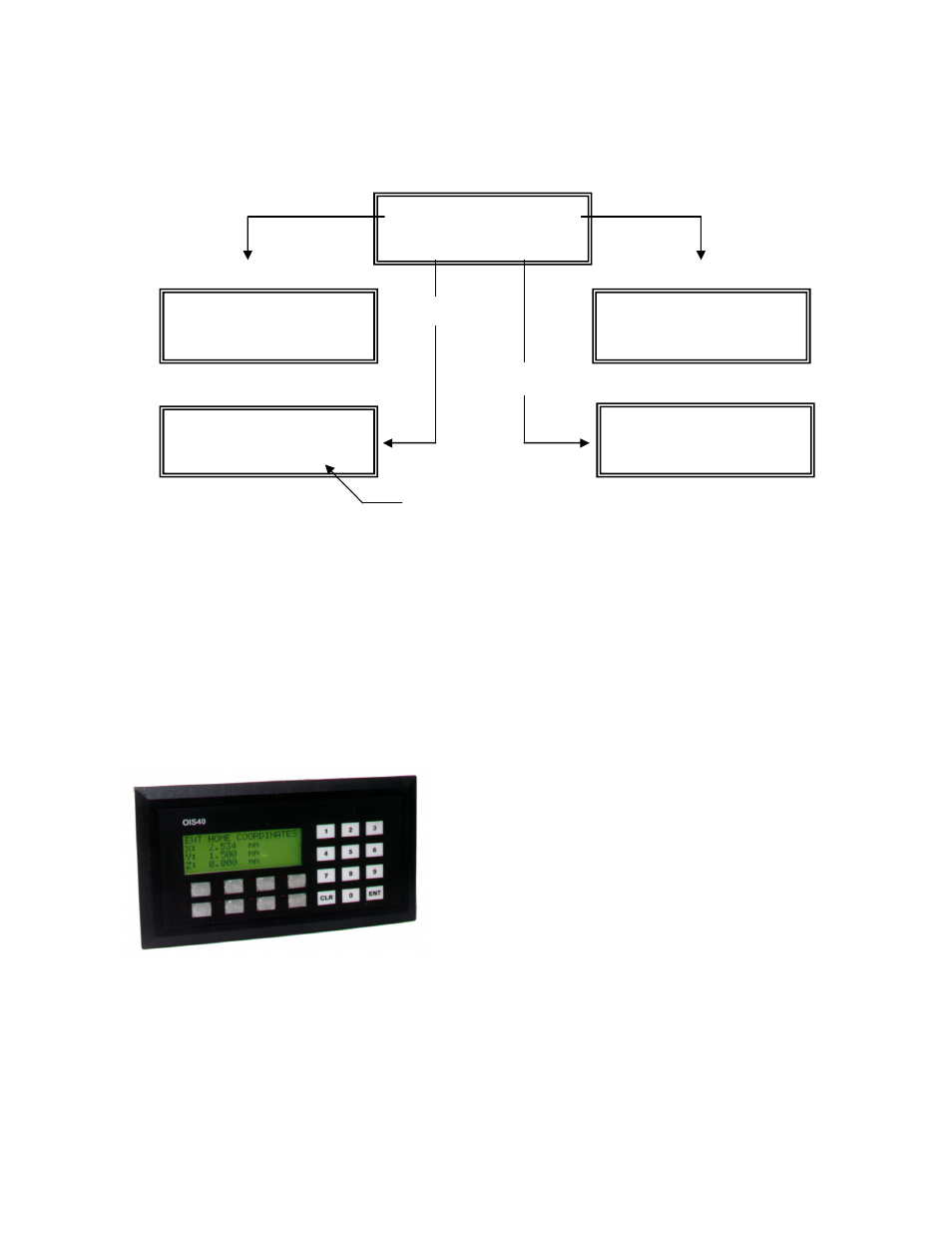

OIS40/40R
OIS40 OIS40R
Display 4 lines x 20 ch. 4 lines x 20 ch.
Power From PLC Separate 24 Vdc
Connection PLC RS232 Port PLC RS485 Port
Prgm Sfwr OISetup32 OISetup32
Fun Keys 8 8
LEDs 8 8
The OIS40 and the OIS40R have full function
numerical keypads for applications requiring
repetitive data entry.
The OIS40R is the remote version with the RS485 connection to the PLC. It can be mounted up to
1000 meters ( 0.6 miles) away from the PLC. One (1) OIS40R can talk to multiple PLCs. Both the
OIS40 and the OIS40R use the same OISetup32 software used by the touchsceen OISs.
OIS10
Message Display
F1 Mtr1 F2 Mtr2
F3 Mtr3 F4 Mtr4
Message Display
Mtr1 Prev 3000
F5 Rtn New
____
Message Display
Mtr2 Prev 2520
F5 Rtn New ____
Press F2 Press F1
Message Display
Mtr3 Prev 1800
F5 Rtn New
____
Message Display
Mtr4 Prev 0900
F5 Rtn New ____
Press F4
Press F3
Data Entry for New
Speed Setting, at
Flashing Line
