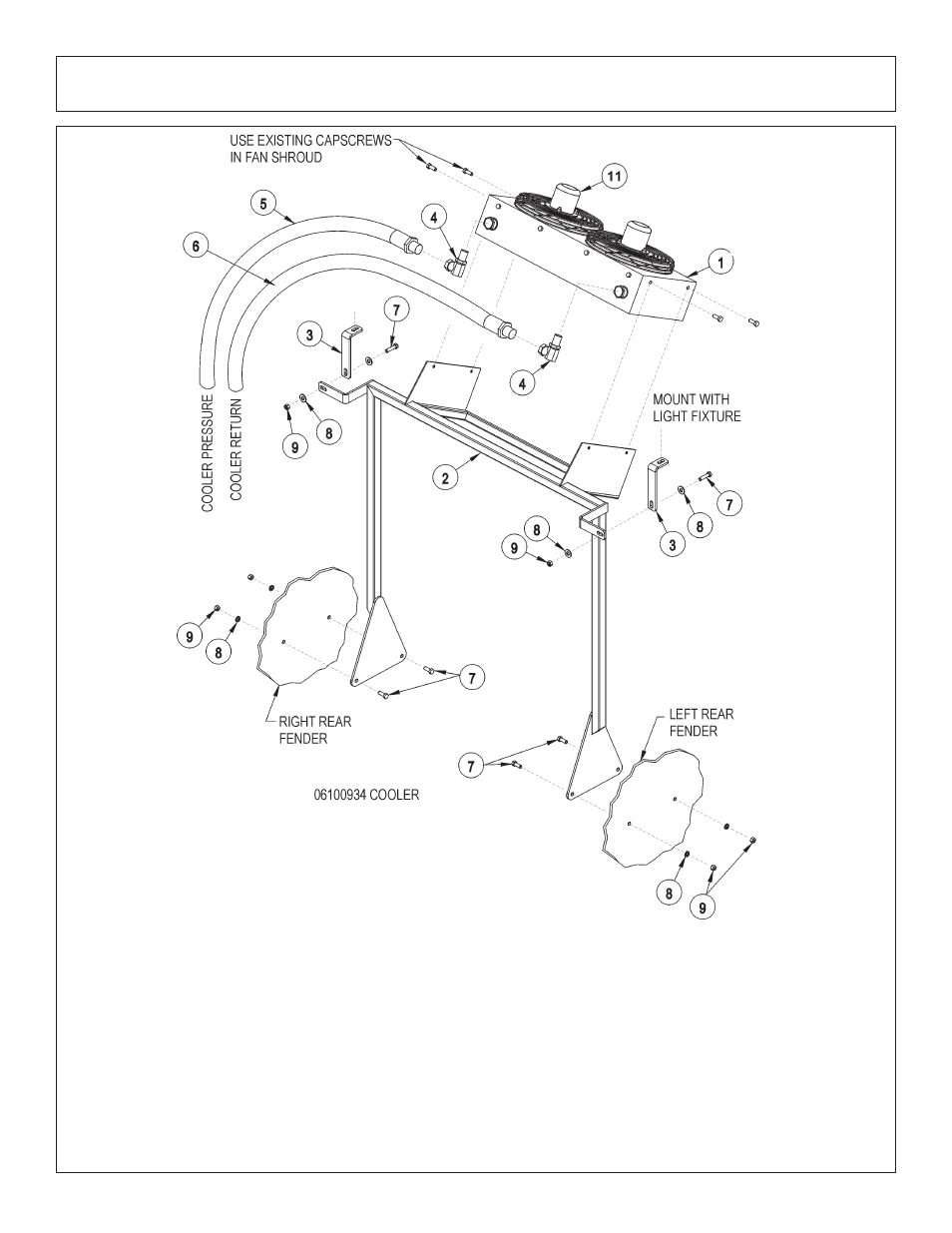

Hydraulic cooler - cab 5520 – Tiger Products Co., Ltd JD 5520 User Manual
Page 105
Parts Section 5-23
ITEM PART NO.
QTY.
DESCRIPTION
1
34374
1
COOLER ASSY.
*
TF4619
AVAL
COOLER
*
TF4614
AVAL
COOLER COIL
2
34372
1
COOLER STAND
3
34373
2
MOUNTING BRACKET
4
33260
1
ELBOW 1”MJ X 1”MOR
5
34375
1
HOSE 1” X 218”
6
34402
1
HOSE 1” X 238”
7
21632
6
CAPSCREW 3/8" X 1 1/2"
8
22016
8
FLATWASHER 3/8”
9
21627
6
NYLOCK NUT 3/8"
10
30379
1
KIT, REVERSER SWITCH (NOT SHOWN)
11
27053
AVA
FAN ASSY
*
TF4615
2
BLADE
*
TF4616
2
GAURD/MOTOR BRKT
*
TF4618
2
MOTOR
HYDRAULIC COOLER - CAB 5520
11-20-01
