The TPA311 MSOP Audio Power Amplifier Evaluation Module
3-3 Details
3.2 The TPA311 MSOP Audio Power Amplifier Evaluation Module
The TPA311 MSOP audio power amplifier evaluation module is powered by
a TPA311 350-mW low-power audio amplifier IC, includes a shutdown control
signal input with onboard switch, and can be operated in either the BTL or
single-ended output mode.
The module can be used with the TI plug-n-play audio amplifier evaluation
platform (Figure 3 –1) or wired directly into circuits or equipment. The module
has single in-line header connector pins mounted to the under side of the
board. These pins allow the module to be plugged into the TI platform, which
automatically makes all the signal input and output, power, and control
connections to the module.
The module connection pins are on 0.1-inch centers to allow easy use with
standard perf board and plug board-based prototyping systems. Or, the EVM
can be wired directly into existing circuits and equipment when used
stand-alone.

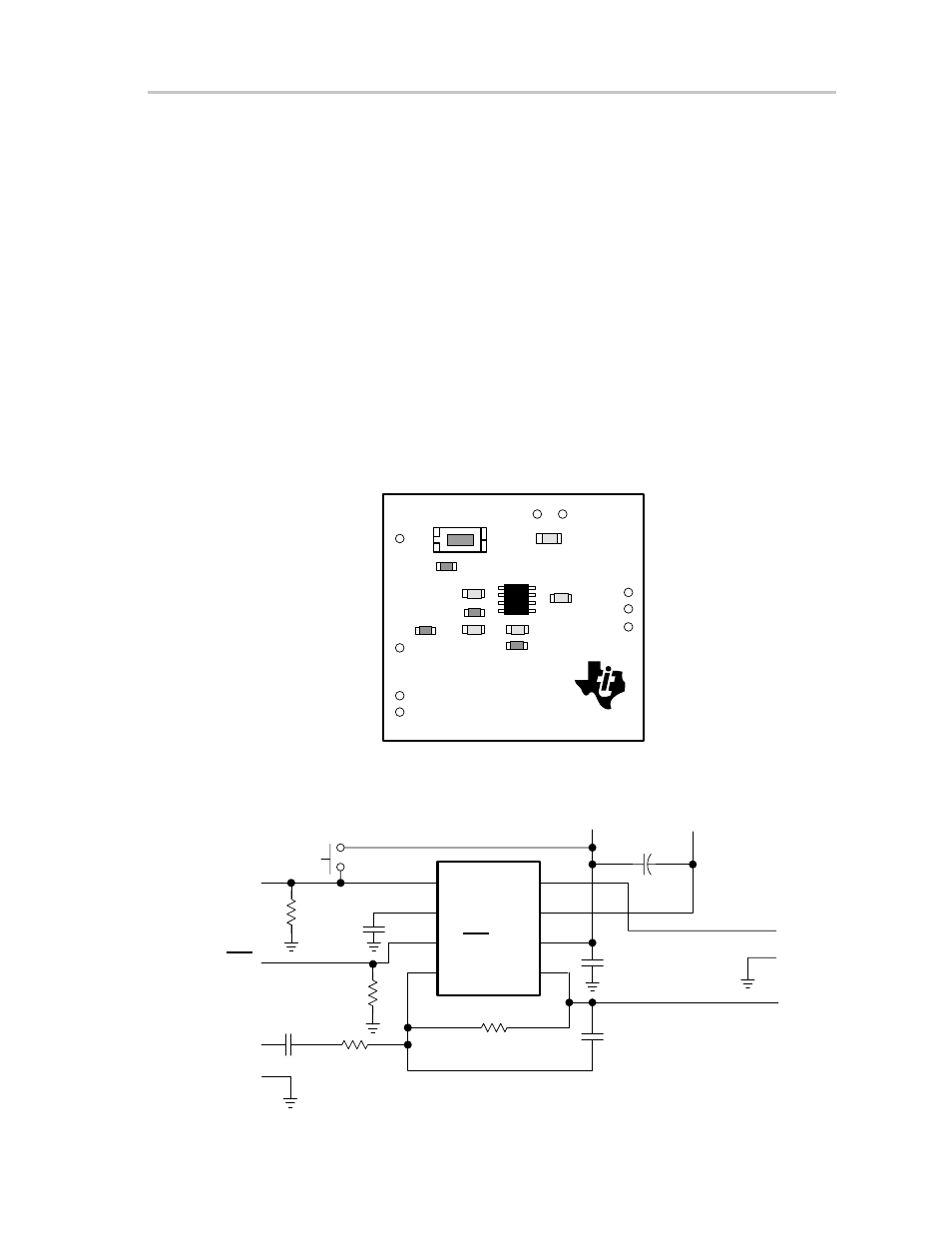

The module appears in Figure 3–2 and its schematic is shown in Figure 3 – 3.
