Transition Networks SMACF10XX User Manual

Quick start guide, Smacf10xx management aggregation converter

background image

Install SMACF10xx in Network

1.

Unpack and Install SMACF10xx Units Place SMACF10xx units
on table or other flat, stable surface in well-ventilated area.

2.

Power On SMACF10xx Units Install power adapter cord at back
of each SMACF10xx unit. Connect power adapter plug to AC
power. Verify power by observing illuminated LEDs.

3.

Connect SMACF10xx Units to Ethernet

Network Locate path

to Ethernet

segment. Use Category 5 twisted-pair cable and

appropriate fiber cable to connect SMACF10xx Management Unit
through any port (optionally through a hub or switch) to the
Ethernet

segment. Connect

AT LEAST ONE port on EACH

installed SMACF10xx Reporting Unit (optionally through a hub or
switch) to the same Ethernet

segment.

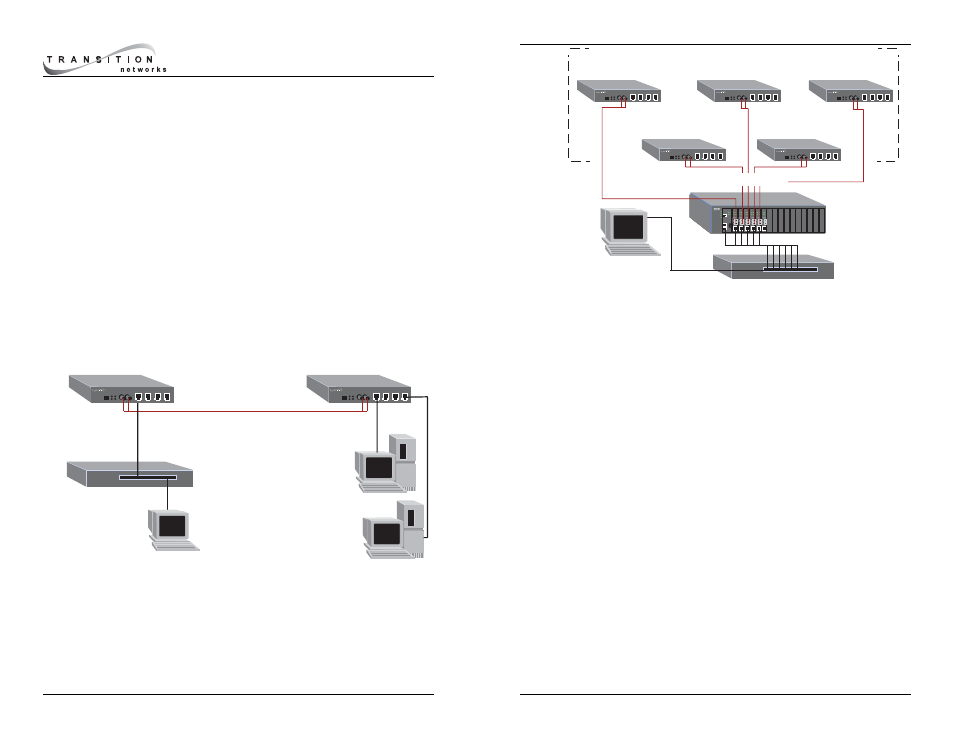

Network managed by SMACF10xx Management Unit.

SMACF10xx Management Aggregation Converter

QUICK START GUIDE

Main Management Unit

Reporting Unit

MM or SM Fiber

In-Band Management
VLAN Segmentation
10 or 100 Mb/s Speed Selection

SNMP Management
of Both Main Management
and Reporting Units

LAN Switch

CAT 5

CAT 5

CAT 5

CAT 5

Network managed by CPSMM-xxx PointSystem

Management

Module connected to switch on same segment as Reporting Units.

Configure Main Management Unit or Management Module
Installed in Chassis

NOTE: The SMAC10xx Management Unit contains both a Management
Unit and a Reporting Unit. Each must be configured separately.
4.

Connect Management Unit or Management Module to Terminal
Locate null modem DB-9 serial port cable with female DB-9
connector. Attach DB-9 serial port female cable connector to
DB-9 serial port male connector on SMACF10xx Management
Unit OR on CPSMM-xxx

PointSystem

Management Module

installed in Media Conversion Center. Attach other end of DB-9
serial port cable to ASCII terminal or terminal emulator.

5.

Verify Terminal Settings

Default terminal settings are 9600

Baud/ 8 data bits/ 1 stop bit/ no parity. If necessary, use methods
appropriate to terminal to modify settings.

6.

Bring up Management Unit Interface at Terminal

(SMACF10xx

Management Unit ONLY) First set switch at back of SMACF10xx
Management Unit to UP position.

(SMACF10xx Management

Unit and CPSMM-xxx PointSystem

Management Module) Press

at terminal keyboard to bring up command-line prompt.

7.

Enter

superuser Mode At command-line prompt, type and enter

the su command, using the

case-sensitive Transition Networks

default password private.

CPSMM100> SU=private

2

Manufacturing
& Logistics

SNMP Management
of all Remote Reporting Units

MM or SM Fiber

Sales & Marketing

Corporate
Management

Accounting

Technical
Publications

Remotely
Managed
Converters

PointSystem
Modular Chassis

Copper Switch
