Issue 1 September 2005
#
Chapter 3: Mount the Device
You can mount the P330 in a rack.
The P330 chassis fits in most standard 19-inch racks. It is 2U (3.5”, 88 mm) high.
Before you Install the P330 in a Rack
●
Disconnect all cables from the unit before proceeding with the rack installation.
●
When installing P330 in a rack, ensure that the equipment is positioned such that it will not
cause the rack to become unstable or tip over.
●
Ensure that the combination of equipment in the rack will not cause an overload or
overcurrent condition on the power strip being used and/or the customer's branch circuit.
●
The P330 units weigh a maximum of 15 pounds (6.8 kg). Be careful when installing or
removing the P330 product from the rack.
●
If a power strip is being used in the rack, ensure that it has a reliable earth connection. If
the P330 equipment will be plugged directly into a wall outlet, ensure that there is a reliable
ground connection at the outlet.
●
Ensure that the internal rack ambient temperature is within the operating specification
limits of the P330.
●
Ventilation for the P330 is from side to side. Ensure that there is adequate space on each
side of the P330 equipment when installed in the rack to allow sufficient airflow.
Place the P330 in the rack as follows:
Note:
Note:
The P333T is used to illustrate this procedure which is the same for all P330
switches.
1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes. Refer to

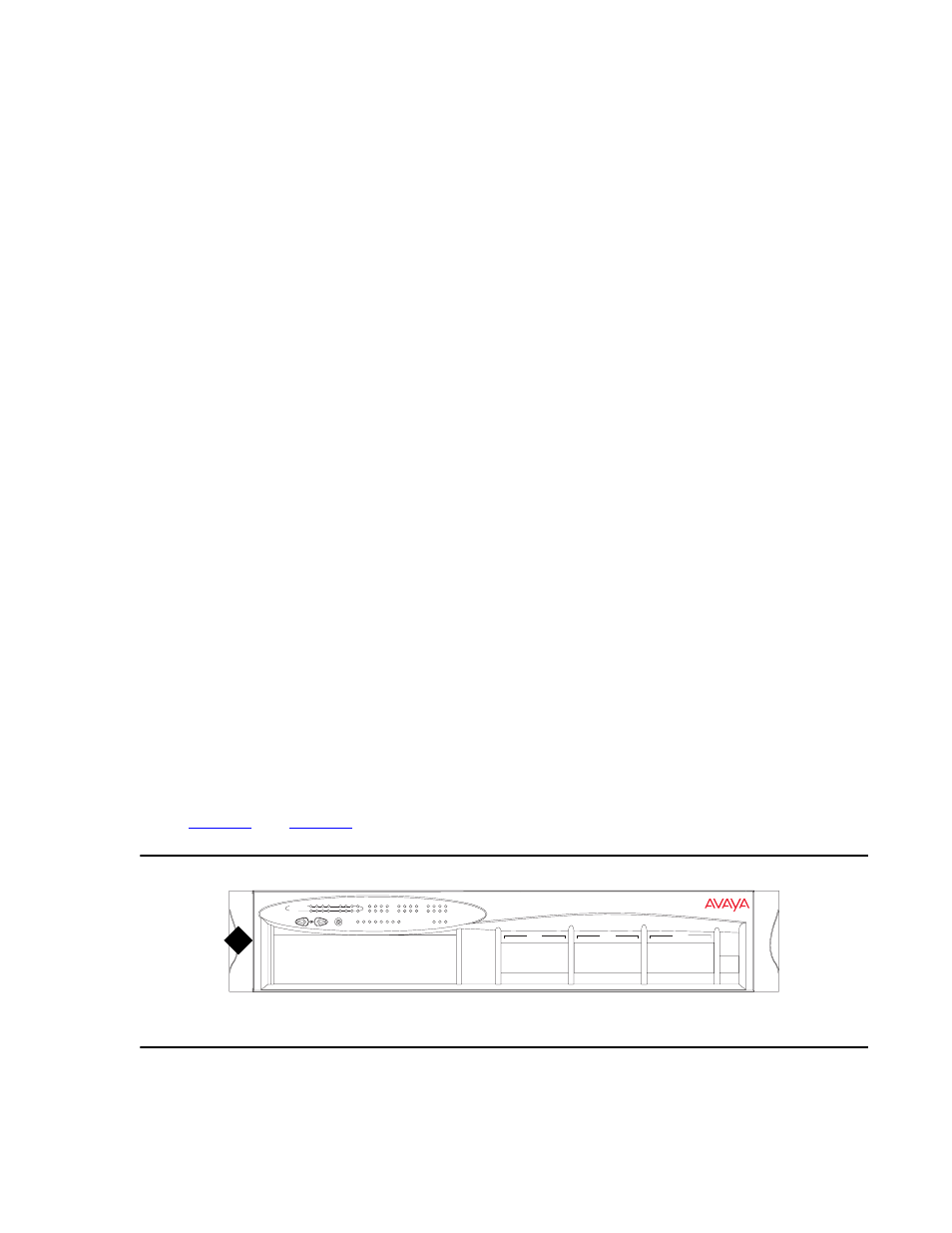

Figure 2: Closed hinged end
Figure notes:
1. Closed hinged end
P333T
EXPANSION
SLOT
51
59
FDX
15
56
64
53
61
52
60
54
62
FIV
55
63
COL
LNK
58
66
57
65
Tx
Rx
1
13
2
3
14
8
20
5
LAG
17
Hspd
FC
4
16
6
18
7
19
10
22
SYS
9
21
OPR PWR
23
11 12
24
13
14
15
16
17
1
LAG
2
3
4
5
CONSOLE
21
18
19
20
23
22
24
9
6
LAG
7
8
11
10
LAG
12
1
