Turning Vanes

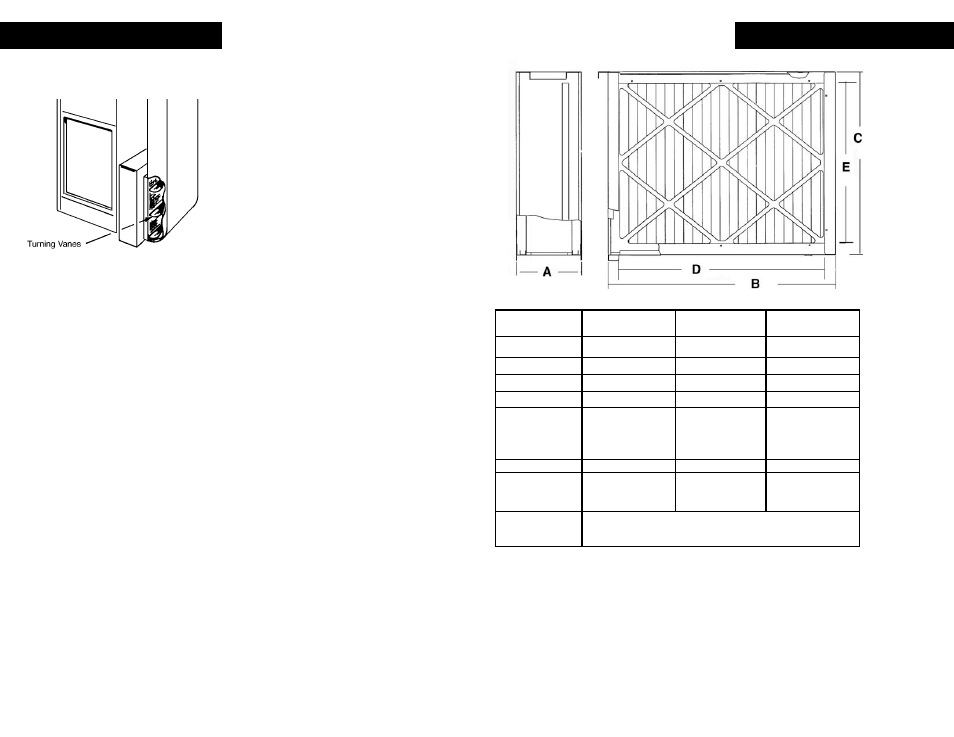

If the air cleaner is installed adjacent to a 90° duct elbow, add turning vanes inside
the duct to improve the air distribution across the face of the air cleaner.
Direction of Air Flow Through the Air Cleaner
The air cleaner is set up for left to right air flow, when facing the access door. For
right to left air flow remove filter cartridge, turn it around and replace in cabinet.
The directional arrows on the filter cartridge must point in the direction of air
flow.
Humidifiers
Location of the system humidifier is important to the operation of the air cleaner.
When an evaporative type humidifier is used, it may be installed between the
furnace warm air duct and the return air duct without affecting the air cleaner.
Atomizing and spray type humidifiers should be installed downstream of the air
cleaner. If the humidifier must be installed upstream, allow at least 6 feet
between the air cleaner and humidifier.
Installation
6
Model
Filter Cartridge
Part Number
Air Flow (CFM)
Dimensions
A
B
C
Duct Opening
D
E
Filter Cartridge
Replacement
Air Bear Supreme
1400
20” x 20” x 5”
455604-019
600-1400
7 1/8” (181mm)
21 3/8” (543mm)
20 1/4” (514mm)
19” (483mm)
17 7/8” (454mm)
Air Bear Supreme
1400
16”x25”x5”
455602-119
600-1400
7 1/8” (181mm)
24 7/8” (632mm)
16 1/4” (413mm)
22 1/2” (572mm)
13 7/8” (352mm)
Air Bear Supreme
2000
20”x25”x5”
455602-019
600-2000
7 1/8” (181mm)
24 7/8” (632mm)
20 1/4” (514mm)
22 1/2” (572mm)
17 7/8” (454mm)
9-12 months between changes
UL class 2
Dimensions
3
