10 TCX series

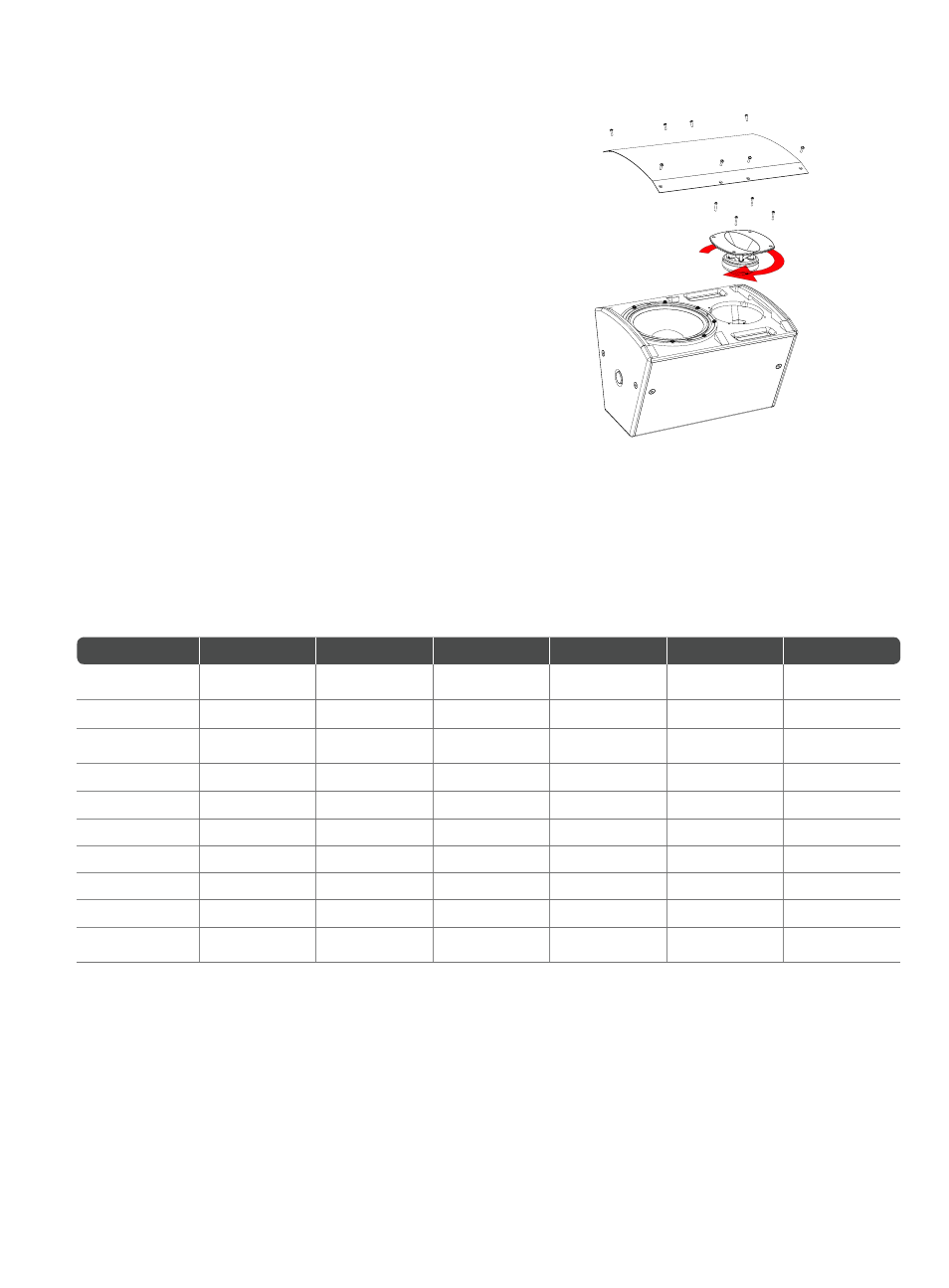

Rotating the HF Horn Pattern
The high frequency horn in all TCX two-way models can
be rotated through 90° in order to swap the horizontal
and vertical dispersion patterns, particularly useful to
retain the wide horizontal dispersion when the cabinet is
installed horizontally in venues with limited ceiling height.
1. Remove the loudspeaker grille as before.
2. Remove the M5 hex head HF horn fixing screws.
3. Lift the horn / driver assembly out, rotate the horn as
necessary to achieve the desired coverage pattern and
replace it in the cabinet.
4. Replace the horn fixing screws and tighten.
5. Replace the grille and phase check the cabinet before use.
EASE Data
EASE data is available for TCX series loudspeakers to enable software simulation of audio coverage
installation projects. Please visit turbosound.com for a free EASE data download.
Technical Specifications
Model TCX-8 TCX-10 TCX-12 TCX-15 TCX-15B TCX-18B
Dimensions
(H x W x D)
16.1 x 12.3 x 11"
408 x 312 x 280 mm
19.4 x 14.6 x 13.1"
492 x 370 x 332 mm
21.7 x 16.1 x 14.5"
552 x 410 x 368 mm
25.7 x 18.5 x 16.6"
652 x 470 x 422 mm
23.6 x 19.7 x 23.6"
600 x 500 x 600 mm
26 x 22 x 26"
660 x 560 x 660 mm
Net weight 24.4 lbs / 11.1 kg 33.2 lbs / 15.1 kg 42.9 lbs / 19.5 kg 53.9 lbs / 24.5 kg 78 lbs / 35.5 kg 84.7 lbs / 38.5 kg
Components
1 x 8" LF driver
1 x 1" HF driver
1 x 10" LF driver
1 x 1" HF driver
1 x 12" LF driver
1 x 1" HF drive
1 x 15" LF driver
1 x 1" HF driver
1 x 15" LF driver 1 x 18" LF driver
Response (±10 dB) 70 Hz – 20 kHz 68 Hz – 20 kHz 68 Hz – 20 kHz 55 Hz – 20 kHz 28 Hz – 170 Hz 25 Hz – 170 Hz
Dispersion @ -6 dB 90° H x 60° V 90° H x 60° V 90° H x 60° V 90° H x 60° V N/A N/A
Sensitivity 1 w @ 1 m 94 dB 95 dB 97 dB 99 dB 95 dB 97 dB
Power handling 200 W 250 W 300 W 400 W 1000 W 1000 W
Calc. max SP 123 dB 125 dB 128 dB 131 dB 131 dB 133 dB
Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms
Connectors
2 x Speakon NL4
4-way barrier strip
2 x Speakon NL4
4-way barrier strip
2 x Speakon NL4
4-way barrier strip
2 x Speakon NL4
4-way barrier strip
2 x Speakon NL4
4-way barrier strip
2 x Speakon NL4
4-way barrier strip
