[Phaser 480 Quick Cleaning Procedure]
#8801, 3-14-95
Any comments or corrections to this document should be faxed to (503) 685-3063, Attn.: HAL Coordinator
7
8

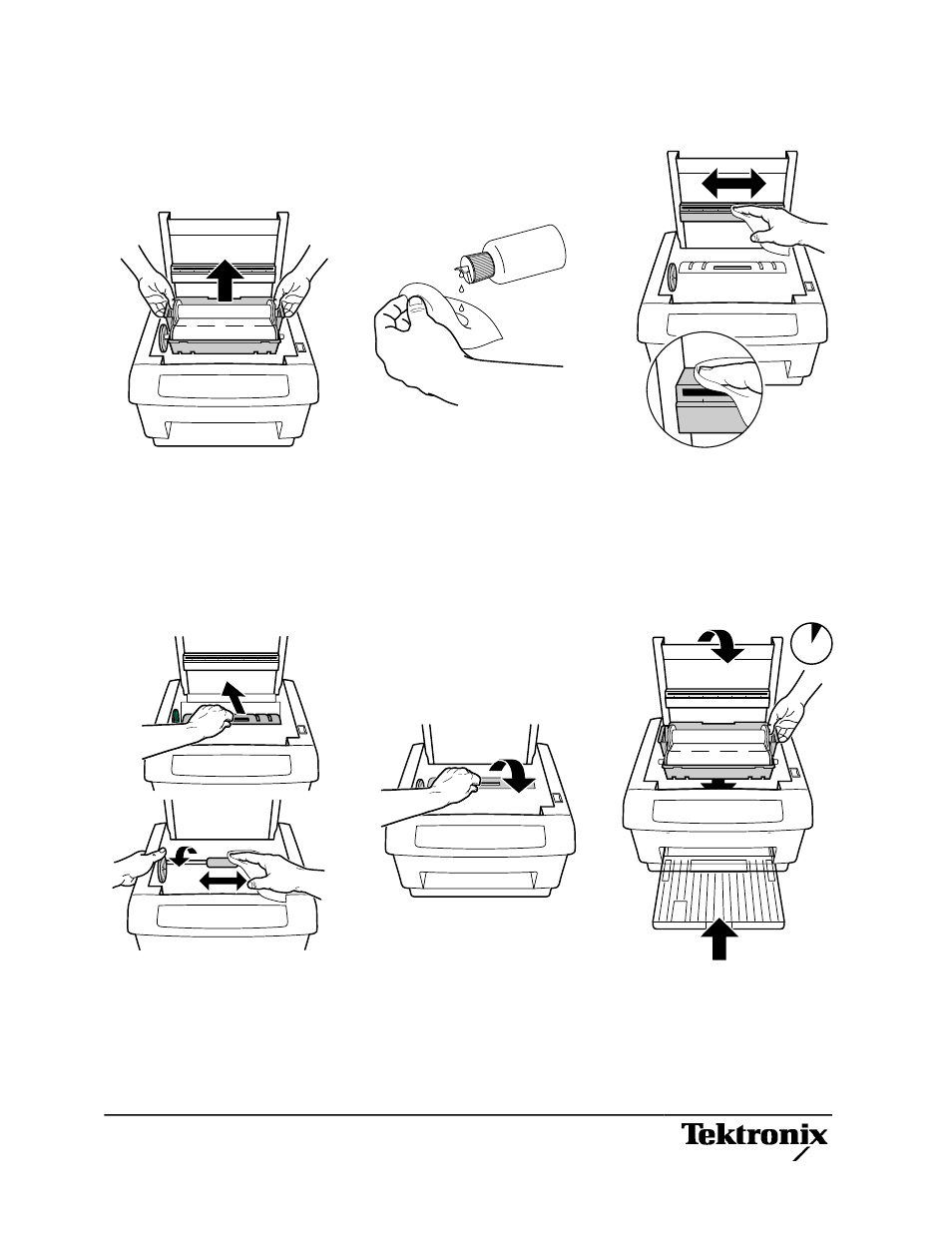

• Clean the thermal head.
WARNING - head may be warm!
• Pushing towards the back of the printer,
open the gray plastic paper guide
to expose the roller underneath.
• Vigorously clean the roller inside.
- Turn the roller to reach all surfaces.
9
• Close the paper guide.
• Replace the transfer roll tray.
• Close the cover.
• Put paper in tray and replace tray.
• Wait approximately 1 minute
for Ready light.
1 min
10
5
Isopropyl
6
• Open the top cover.
• Remove the transfer roll tray.
• Dampen a lint-free wipe with approximately
ten drops of isopropyl alcohol.
• Or use a pre-moistened alcohol wipe.
