Getting Started
Unpacking the system:
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one user’s guide;
• AM loop antenna;
•
FM wire antenna
• one Thomson warranty card

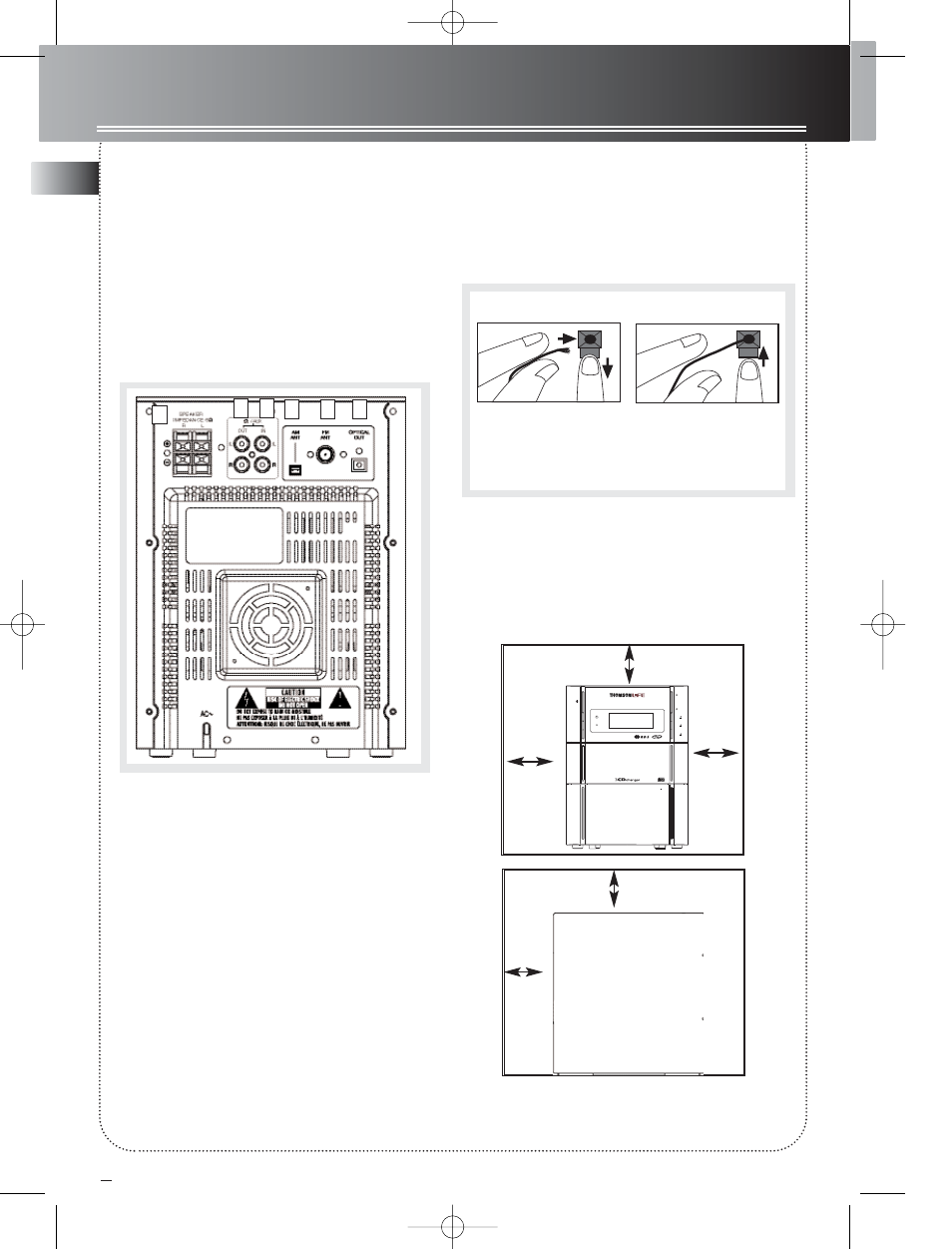

Back View
1. Main Speaker Jacks
2. Line Out Connector
3. Aux In Connector
4. AM Antenna Jack
5
. FM Antenna Jack
6. Optical Out
Using the Antenna
Before you use your audio system, you’ll want to
make sure the FM antenna is positioned properly.
Connect the FM antenna to FM ANT jack on the back
of the unit. Uncoil it, making sure it is fully extended
(you may even want to tape it to the wall behind the
unit, if possible. The higher, the better.)
For AM reception, you need to connect the AM loop
antenna. For better AM reception, rotate the AM
loop antenna.
Connecting the Speakers
Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers, match
the red wires to the red jacks and the black wires to
the black jacks.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
10 cm/ 4”
10cm
/ 4”
Front View
10 cm
/ 4”
10 cm/ 4”
5 cm
/ 2”
Side View
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the speaker wires at all connection points.
Speaker Wire Connection
Push terminal tab down to
insert wire.
2
1
2 4 5 6 3
Control panel
PUSH
TIMER
SOURCE
VOL
DISC1
DISC2
DISC3
ON / ECO
IR
ECO
COMPACT DISC AUDIO
CD-RW COMPATIBLE
DIM/ DEMO STANDBY
CS300
