9
Installation procedure
WARNING :
Ą To avoid injury, use protective gloves when installing the plate
and when handling/installing the cooktop. Stainless steel parts could have
sharp edges.
For safety reasons, the heat shield must be properly installed. This prevents
components from overheating as a result of the recirculation of hot air from the
cooktop.
The heat shield is the same width as the cooktop. For shipping, it is screwed to the
burner box.

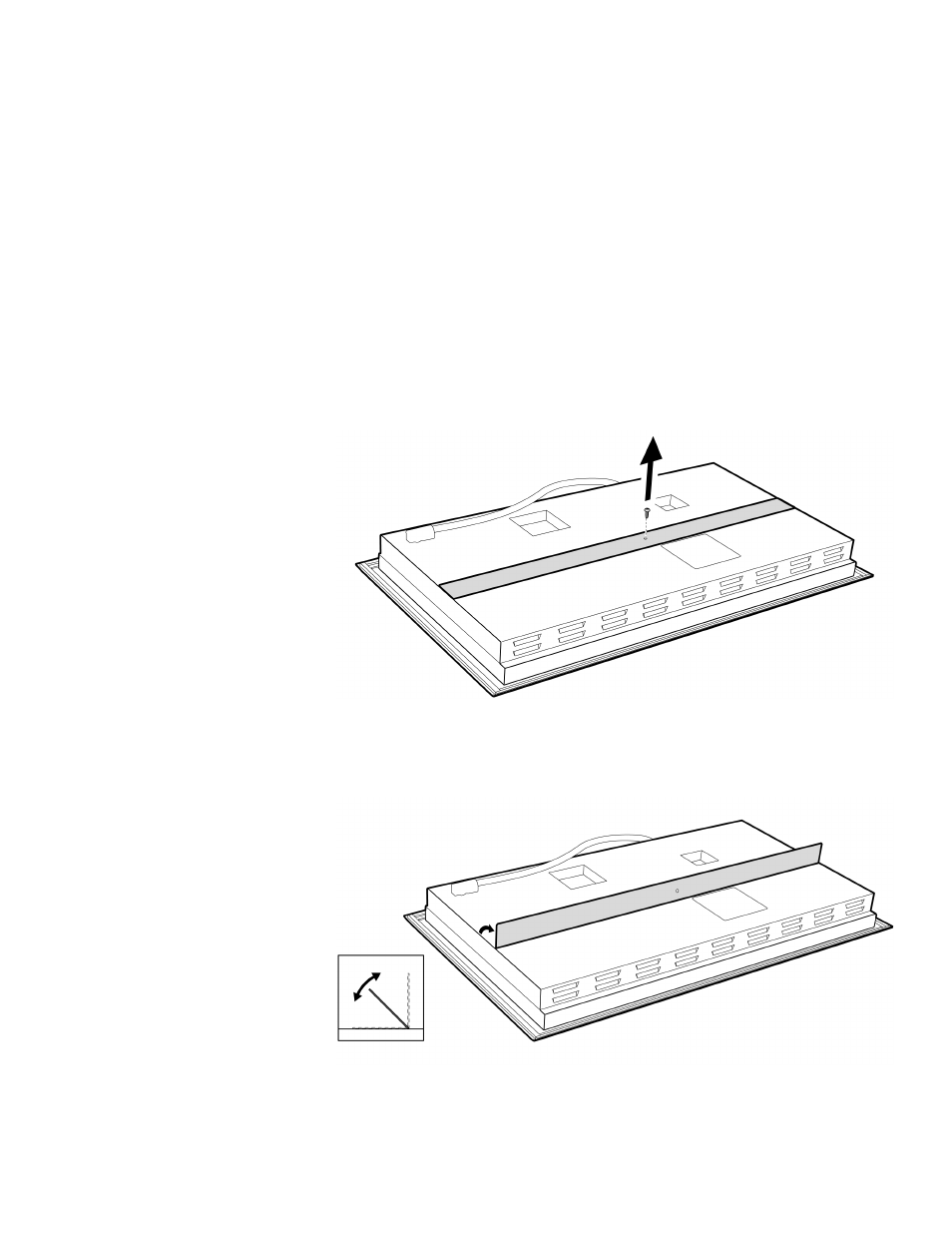

After unpacking the cooktop, unscrew the heat shield (see illustration).
The heat shield will be able to rotate freely, as shown in the illustration.
ř
Installing the heat shield
