11
PREP
ARA
TION
VHF UHF
VHF/UHF OUT
( TO TV)
IN
( FROM ANT.)
RF
CH
OUT (TO TV)
IN (FROM ANT.)
OUT IN
VIDEO
AUDIO
3 4
RF

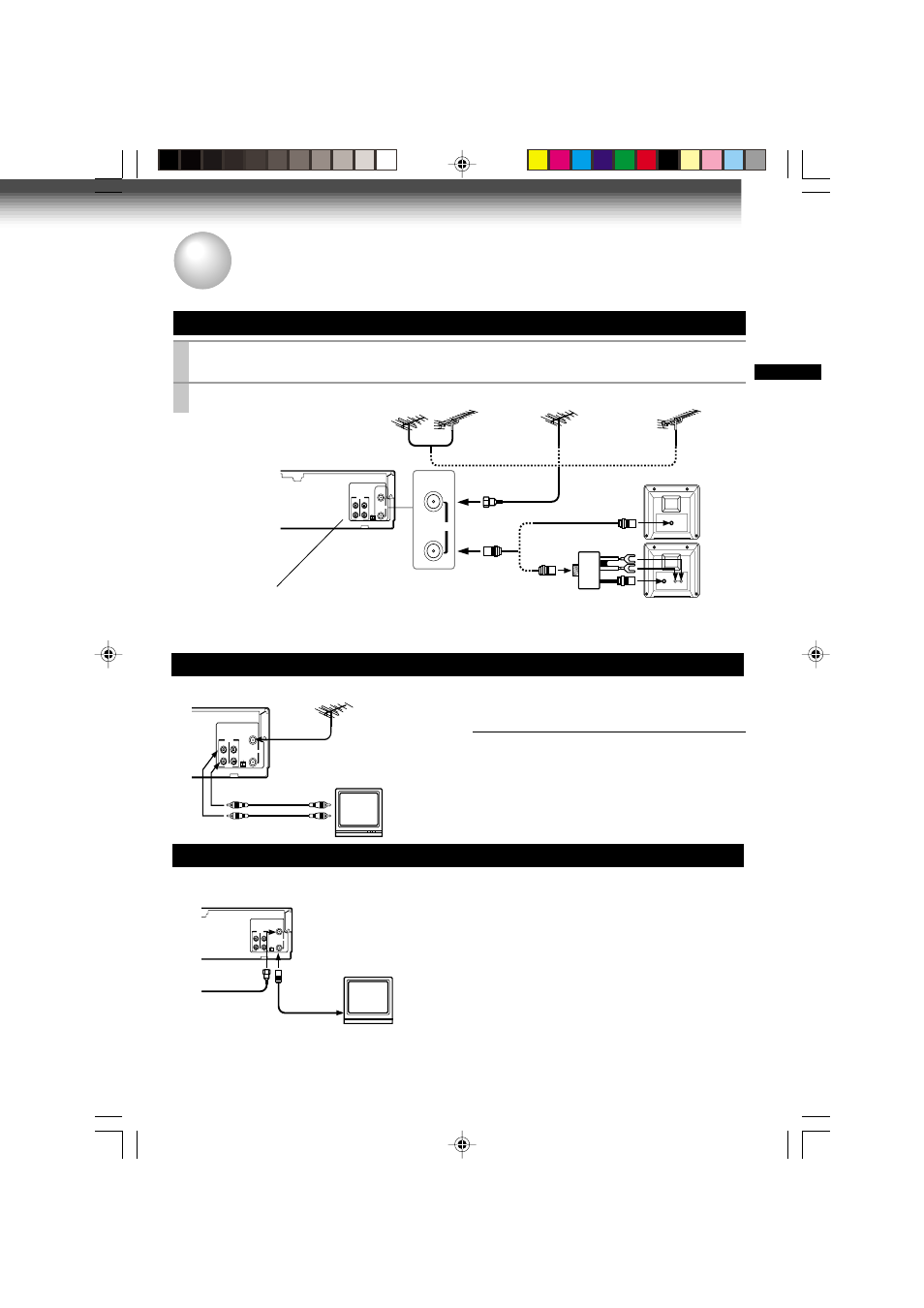

Antenna/VCR/TV Connection
1 Disconnect the antenna cable from your TV and connect it to the RF IN terminal on the
VCR.
2 Connect the RF OUT terminal to the TV.
AUDIO/VIDEO Connections
The AUDIO/VIDEO jacks are also available to connect your TV.
When connected your TV using the
AUDIO/VIDEO OUT jacks
To watch video pictures, set the video input mode
on your TV. For the video input mode, refer to
the manual of your TV.
Setting the VCR Output Channel
When the VCR is connected in this way, the VCR sends the output
signals to channel 3 or 4 on your TV. Set the output channel
selector (CH selector) of the VCR to “3” or “4”, whichever is vacant
in your area.
VHF/UHF
combination antenna
VHF antenna
only UHF antenna
only
Antenna splitter
(not supplied)
1
2
Connections
Before you use this VCR, it is necessary to connect it to your TV. Several ways of connecting are
available depending on your use of TV or cable box. Select one which is applicable to your equipment.
PREPARATION
Cable Connection
Choose one of the below according to your usage of the cable box.
This set-up will enable you to:
– record an unscrambled channel.
– watch an unscrambled channel while recording it.
– record an unscrambled channel while watching
another (only when you connect a cable-
compatible TV).
You will need to:
• select TV channel 3 or 4 to receive video signals.
• to record a channel while watching another, press
TV/VCR on the remote control to turn off the
“VCR” indicator in the VCR display and select a
desired channel on the TV (only when you connect
a cable-compatible TV).
CH
OUT
( TO TV)
IN ( FROM ANT.)
OUT IN
VIDEO
AUDIO
3 4
RF
Incoming cable
VIDEO IN
AUDIO IN LINE OUT AUDIO
CH
OUT
( TO TV)
IN
( FROM ANT.)
OUT IN
VIDEO
AUDIO
3 4
RF
LINE OUT VIDEO
W-412 (ENG)* 1/17/01, 9:50 AM 11
