Page 10

E6581402c
- 9 -

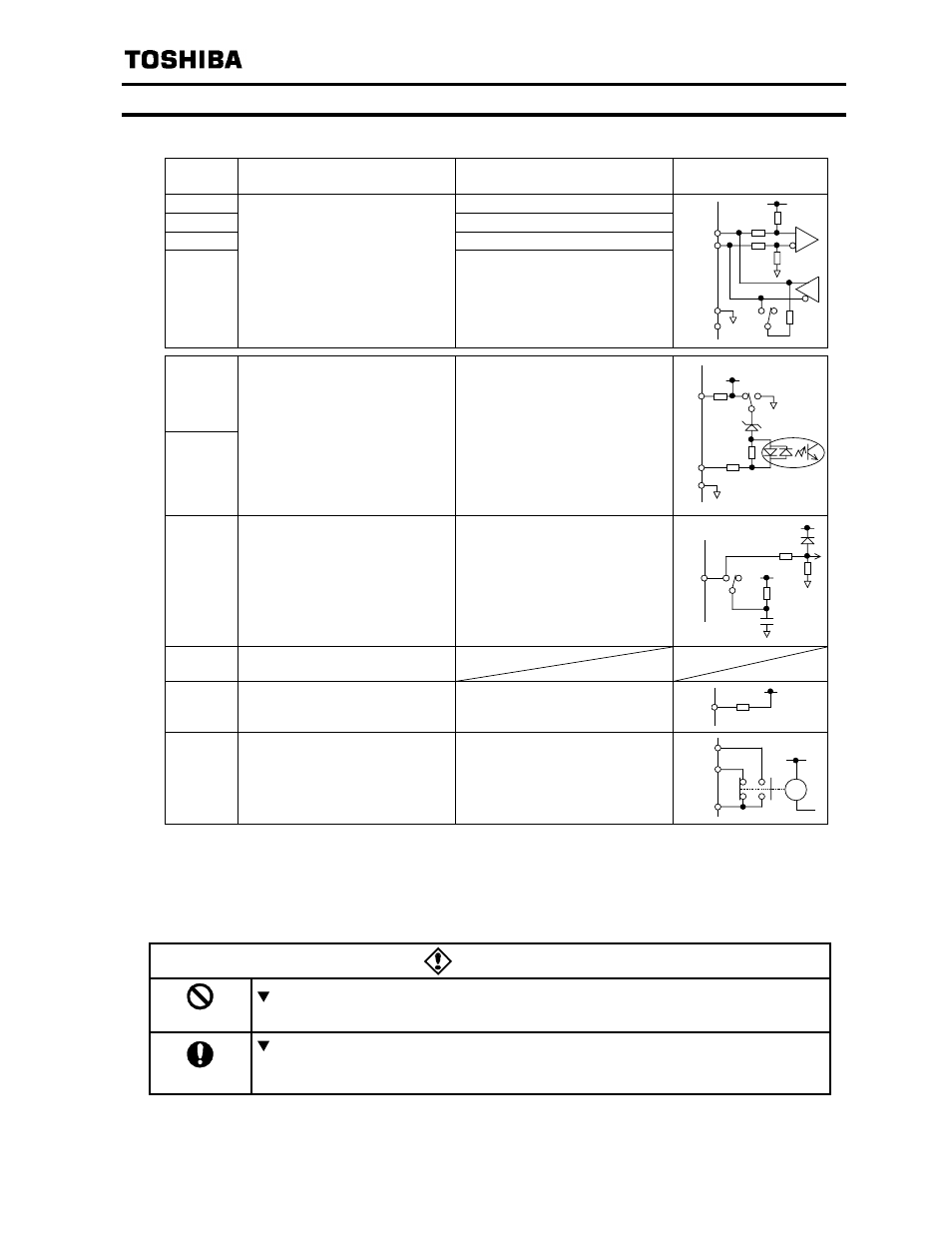

3.2. Description of terminals
Terminal
symbol
Function
Electrical specifications
Internal circuits
B
Communication signal (+)
A
Communication signal (-)
GND
Signal common
SCR
BACnet communication
signal
EIA-485
Shield terminal.
Connect to network ground.
B
A
GND
SCR
47k
47k
4.7k
4.7k
120
SW4
TERM
F
R
Multifunctional programmable
contact input.
SINK/SOURCE can be
selected with SW.
No voltage contact input
24V
DC
, 5mA or less
N.B. Use contact parts for low
current.
F, R
CC
P24
4.7k
P24
PTC
SOURCE
SINK
820
VIB
Multifunction programmable
analog input.
with internal pull-up resistor
for PTC
0 to 10V
DC
input
Using this terminal as PTC
input, set SW2 to PTC side
and set the parameters
(f645 and f646) to
proper value.
VIB
15k
VIB
P10
PTC
15k
3.3k
CC
Control circuit¶s equipotential
terminal
P24
24 V
DC
power supply output
24V
DC
-50mA
P24
P24
PTC
FLA
FLB
FLC
Multifunctional programmable
relay contact outputs
1c contact
30V
DC
-0.5A
250V
AC
-1A (cosI=1㧕
250V
AC
-0.5A (cosI=0.4)
FLA
FLB
FLC
Ry
Danger
Prohibited
Do not change switches settings while the power is on.
It may lead to electric shocks or damage.
Mandatory
Turn off the motor operation signals before setting the parameter and the switch
(SW), when changing the VIB function. Otherwise, the motor may suddenly start
and that may result in injuries.
