Rear Panel
LINE IN 1 AUDIO (Rear)
If the connected equipment is monaural (has one audio output jack), connect the L (MONO) side, the same
sound is recorded on both L and R on the Hi-Fi track.

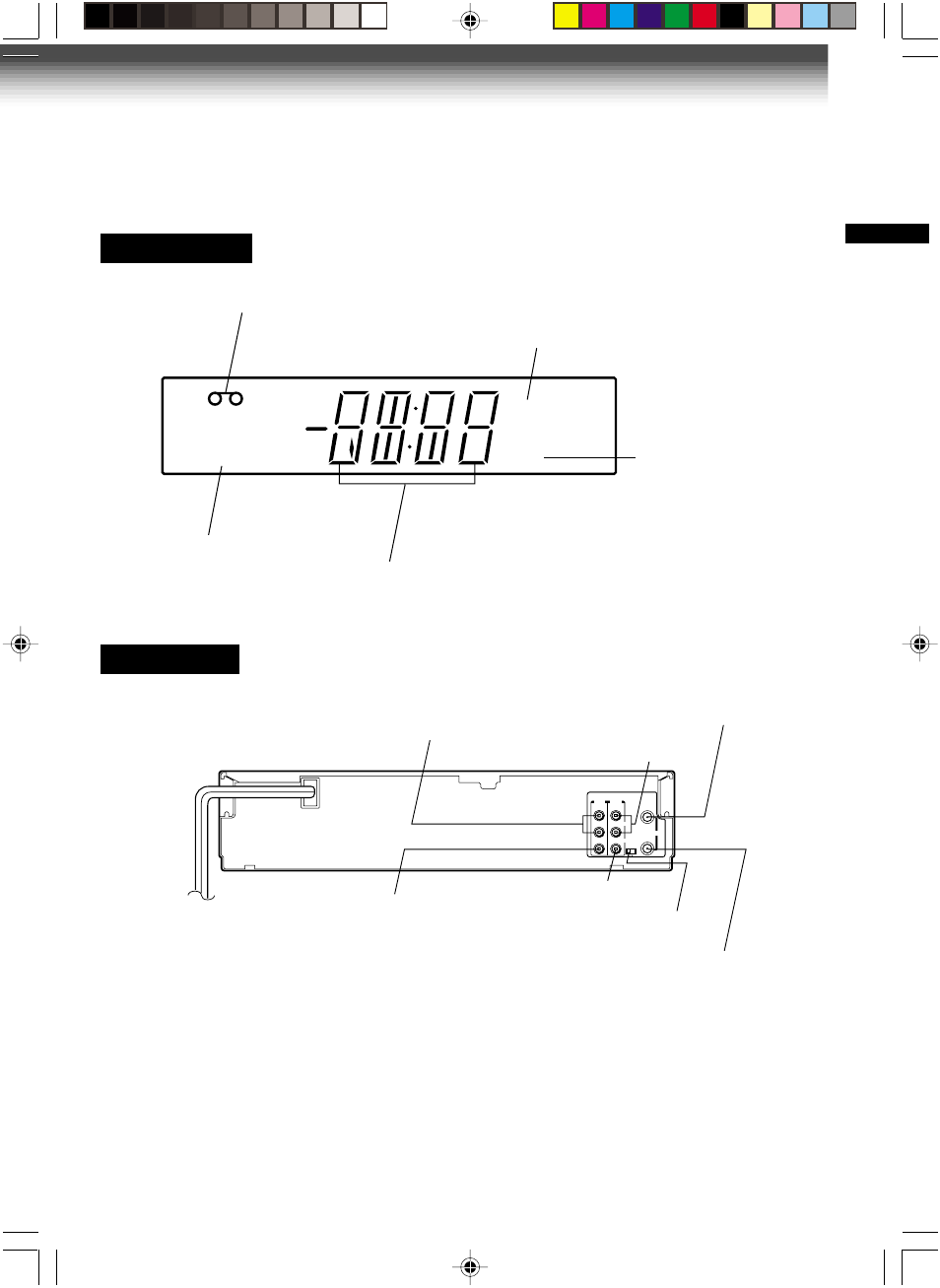

Multifunctional
indicator
VCR indicator
Cassette indicator
Timer recording indicator
VCR Display
VCR
TIMER
Hi-Fi
INTRODUCTION
L
R
CH selector (3/4)
LINE OUT AUDIO jacks (L, R)
LINE OUT VIDEO jack
RF IN (FROM ANT.) terminal
LINE IN 1 AUDIO jacks (L, R)
RF OUT (TO TV) terminal
LINE IN 1 VIDEO jack
CH
OUT
(
TO TV)
IN
(
FROM ANT.)
LINE
OUT
LINE
IN 1
VIDEO
AUDIO
3
4
RF
To wall outlet
Hi-Fi indicator
