Trojan 30 - Manual (Page 8)

1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
PART OF OUR SERVICE IS
PROVIDING REPLACEMENT
PARTS. Parts may be obtained
IF YOUR LOCAL DISTRIBUTOR
CANNOT SUPPLY PARTS,
CONTACT:

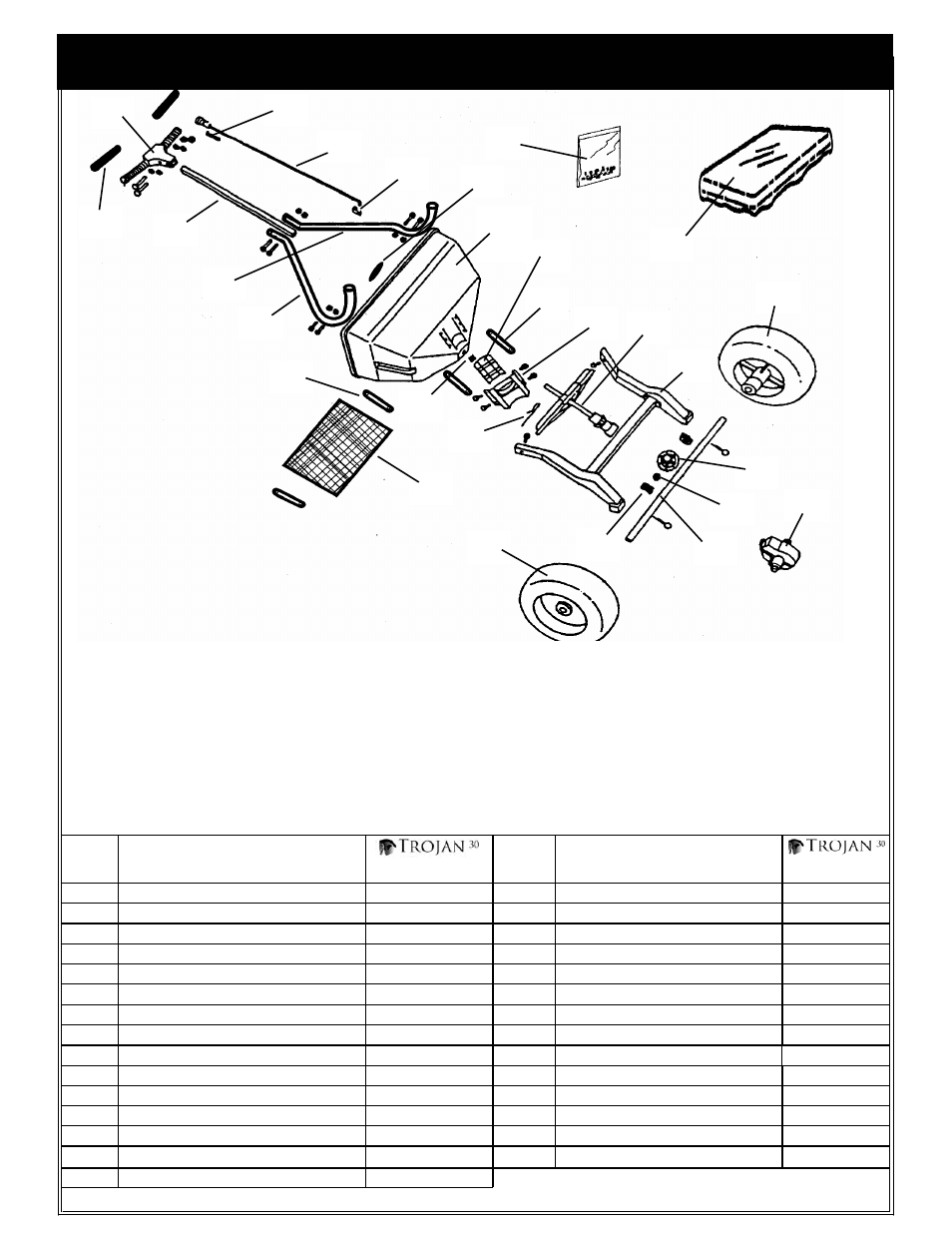

Parts List
1
1A
4
2
3
5
6
11
10
12
15
8
14
7
16
17
18
13
19
20
21
22 23
24
25
9
27
Key
No.
Description
Part No.
Key
No .
Description
Part No.
1 Hopper Assembly 15383 15 Impeller Shaft Bearing * 14312-1
1A Hopper * 15270 16 Hopper Screen 14603-1
2 Shutoff Plate * 14454-1 17 Screen Clips (2) 14022
3 Shutoff Plate Guides (2) * 15377 18 Handle Brace W/ Plug– LH. 15378
4 Rate Cam & Chute Assembly * 14455-1 19 Handle Brace W/ Plug– RH. 15379
5 Impeller Assembly 15263 20 Handle Tube 15283-1
6 Frame Assembly 15262-2 21 Handle Grips (2) 15264
7 Drive Wheel 14939-1 22 T-Handle Assembly 13634-2
8 Axle Gear 13360 23 Control Knob Spring 14462
9 Gear Cover Assembly 14629 24 Control Knob & Wire Ass’y. 13640-1
10 Axle Collar 13362 25 Wire Retaining Clip 13643-1
11 Axle 15380 26 Hopper Plug 15271
12 Axle Bushings (2) 14951 27 Parts Package 15287
13 Free Wheel 14940-1 28 Hopper Cover 14606-1
14 Agitator 14510
26
* Parts included in Hopper Assembly
