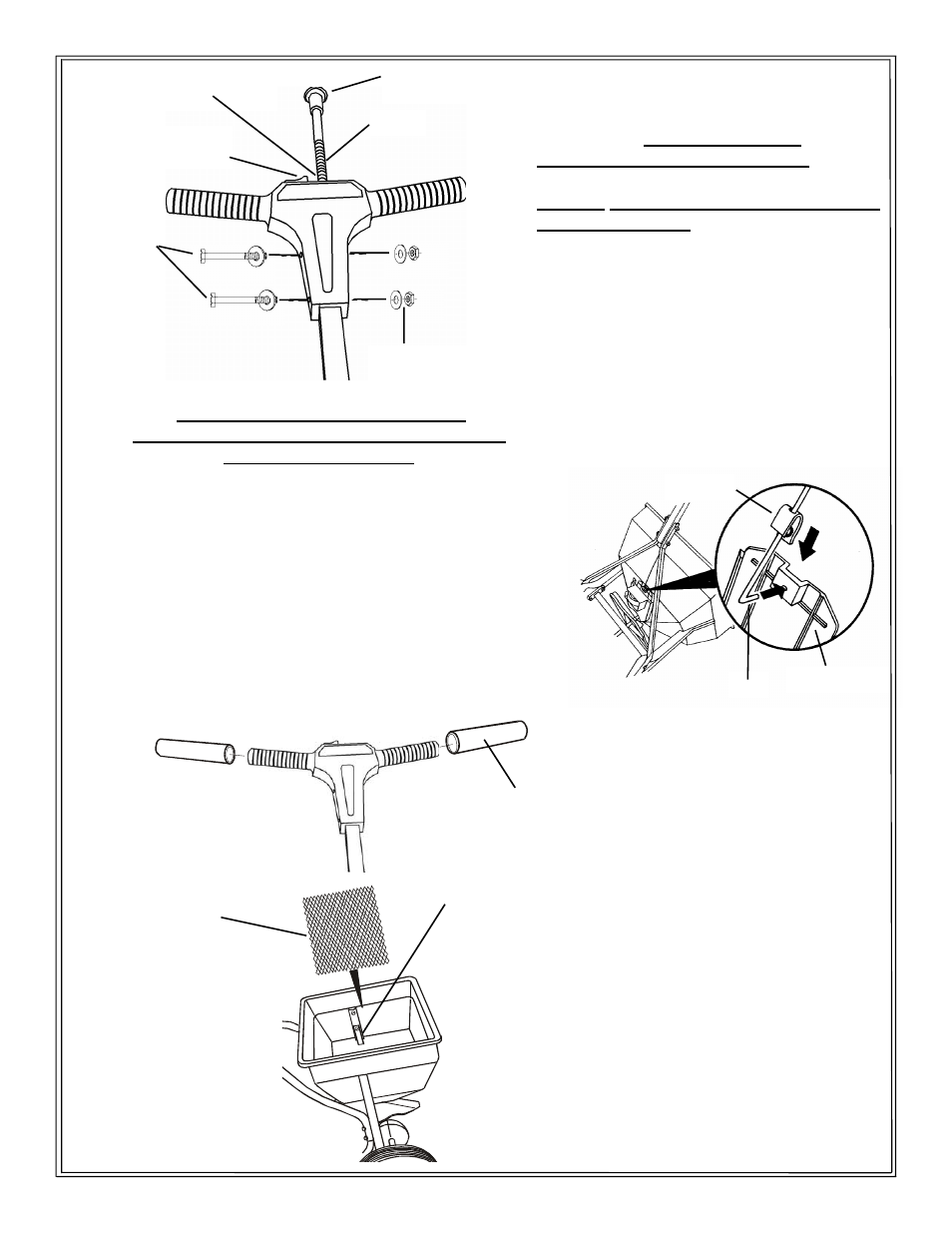

4.

Feed control knob/wire through the

T-handle until spring touches the
round hole. CAUTION: Do Not
Compress Spring At This Time.

Feed

wire through the square handle tube.
Be sure wire passes above the bolts in
the handle brace. Secure T-handle to
the tube with (1) 1/4-20 x 2 1/4” hex
bolts, (2) washers, and (1) hex nut in
the holes. Remove caution label and
push the thumb release toward the
centre and push down knob and
shutoff spring until knob latches.

CAUTION: Once knob is latched,

do not move thumb release until you have

completed in step #5.

Control Knob &
Wire Assembly

Spring

Thumb
Release

1/4-20 x 2 1/4”
Bolt & Washer

1/4-20 Hex

Nut & Washer

Remove Caution
Label

5

.

Slide wire retaining clip onto wire as shown.

Insert wire through hole shutoff plate. Slide
wire retaining clip over shutoff plate and wire
until the clip locks into place.

Wire Clip

Shutoff Plate

Wire

6

.

Install handle grips onto the handle

as shown. Soapy water will ease
installation. (Do not use petroleum
based products). Insert screen into
hopper by sliding it under the screen
clips.

Handle Grips

Screen

Screen Clips
