Mounting and Fixing
TXD series cabinets are equipped with pole mount sockets to enable use with a range of speaker poles of different lengths.
TXD series cabinets can be rigged in permanent installations using optional M10 shoulder eyebolts coupled to the internal
rigging points provided on the top and back. Remove the appropriate M10 countersunk screws and replace them with M10
eyebolts, which must have a thread length of at least 18mm. Use the rear rigging point to angle the cabinet for optimum
room coverage.
Turbosound wall and ceiling brackets are available as options for installing TXD series cabinets. The PB-55 pole bracket
can be used to wall mount all types of cabinets fitted with a pole mount socket.
Model Wall Mount Ceiling Mount Pole Mount Eyebolts
TXD-081 WB-20 CB-55 PB-55 M10
TXD-121 WB-20 CB-55 PB-55 M10
TXD-151 WB-20 CB-55 PB-55 M10
Spares and Accessories
CD-111 / RD-111 Compression driver / diaphragm for TXD-081, TXD-121, TXD-12M, TXD-151
CD-212 / RD-212 Compression driver / diaphragm for TXD-15M, TXD-252
LS-1219 / RC-1219 12” low frequency loudspeaker / recone kit for TXD-121, TXD-12M
LS-1521 / RC-1521 15” low frequency loudspeaker / recone kit for TXD-151, TXD-15M
LS-1522 / RC-1522 15” low frequency loudspeaker / recone kit for TXD-252
LS-1523 / RC-1523 15” low frequency loudspeaker / recone kit for TXD-115, TXD-215
LS-1811 / RC-1811 18” low frequency loudspeaker / recone kit for TXD-118, TXD-218
LS-8010 8” low frequency loudspeaker for TXD-081
Turbosound Ltd 2003, Star Road West Sussex RH13 8RY, UK
tel: +44(0)1403 711447 fax: +44(0)1403 710155 www.turbosound.com
version 1.3 10/08/05

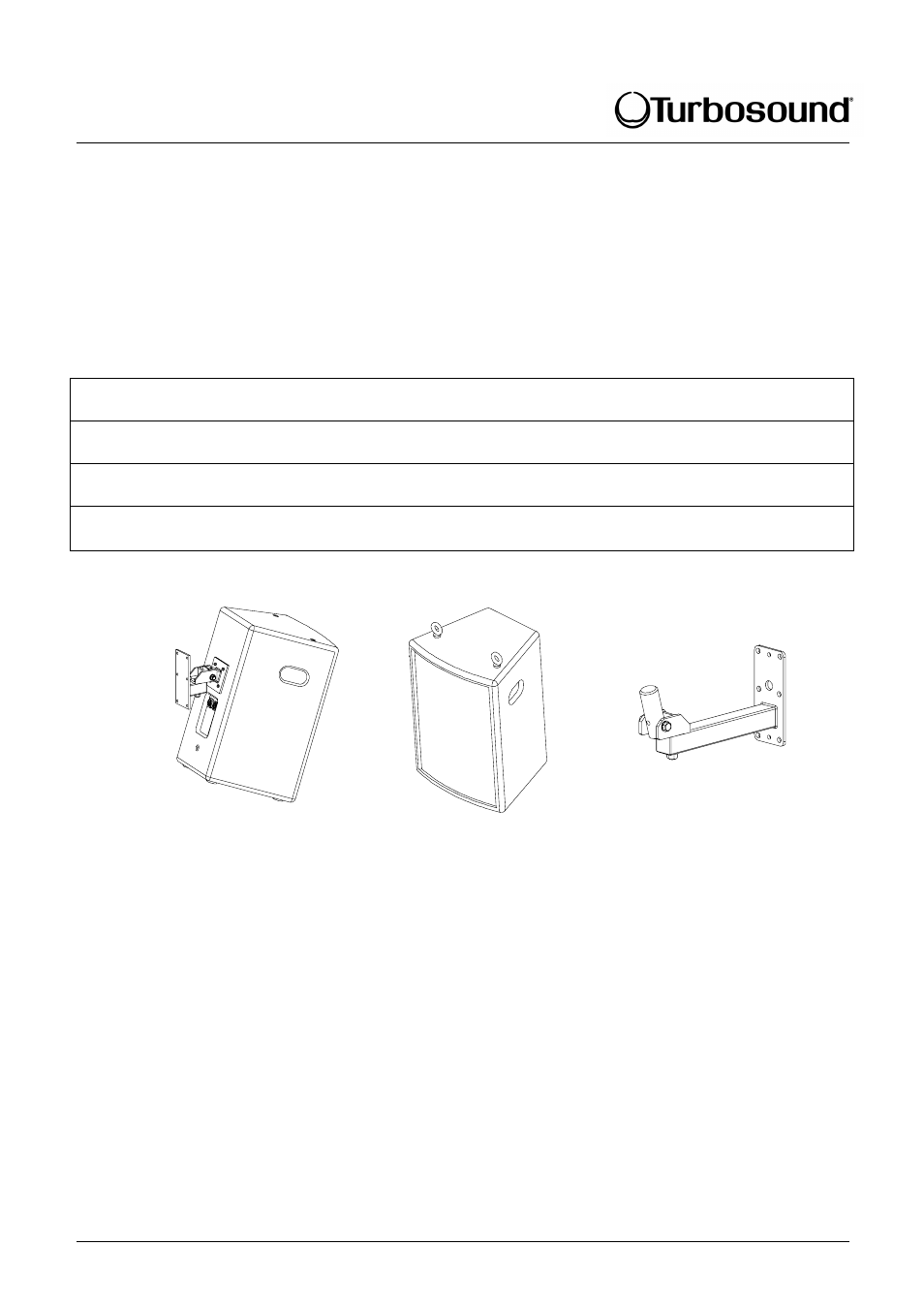

WB-20
wall bracket
PB-55 pole bracket
M10 eyebolts
