Quick Start Guide
TXD series
TXD Quick Start Guide - Page - 2
System Controllers
The Turbosound LMS-D24 is a high quality 2-in, 4-out digital crossover designed and pre-configured for use with TXD
loudspeakers. This enables you to assemble sound reinforcement systems ranging from a simple two-channel live
performance rig or monitor system up to a multi-zone nightclub or entertainment venue.

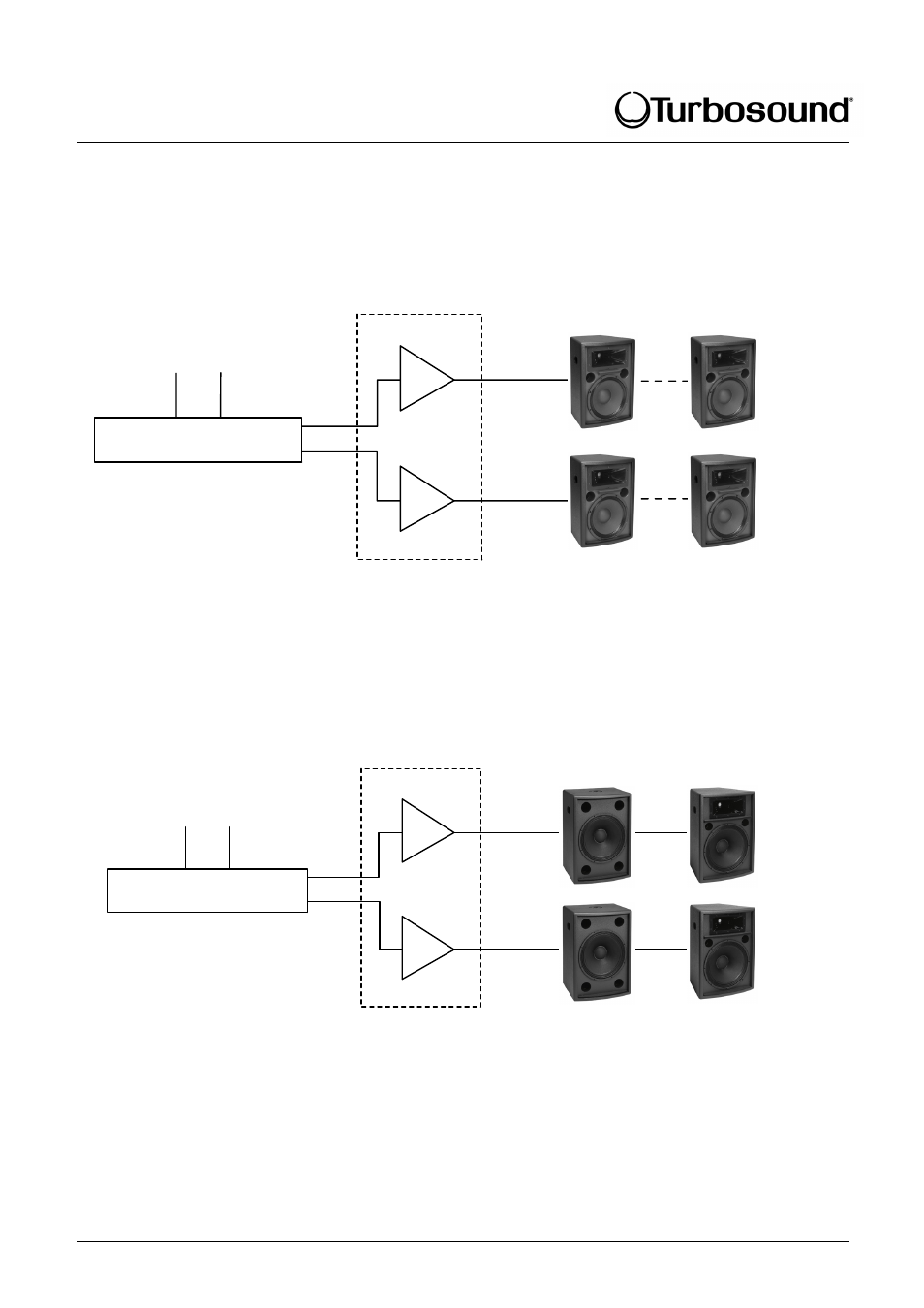

Passive systems without sub-bass
Connect the left and right mixer outputs, via a graphic equaliser if required, to one channel each of a stereo power
amplifier. Connect a TXD speaker to each amplifier channel with suitable speaker cable terminated with a Speakon NL4
connector. A second TXD speaker (shown with a dotted line) can be connected to each amplifier channel via the
loudspeaker’s parallel link connector up to a maximum of two per channel.
Passive systems with sub-bass
Low frequency enclosures can be used to extend system low frequency response, without the need for additional amplifier
channels or external electronic crossovers. A full range system consisting of, for example, TXD-151 and TXD-115
enclosures can be powered from a single stereo power amplifier as shown. Connect first to the bass cabinets and then link
out to the top cabinets via the parallel link connector.
TXD-115
L
R
EQ
TXD-151 POWER AMPLIFIER
FROM MIXER
L R
EQ
L
R
TXD-121 POWER AMPLIFIER
FROM MIXER
L R
