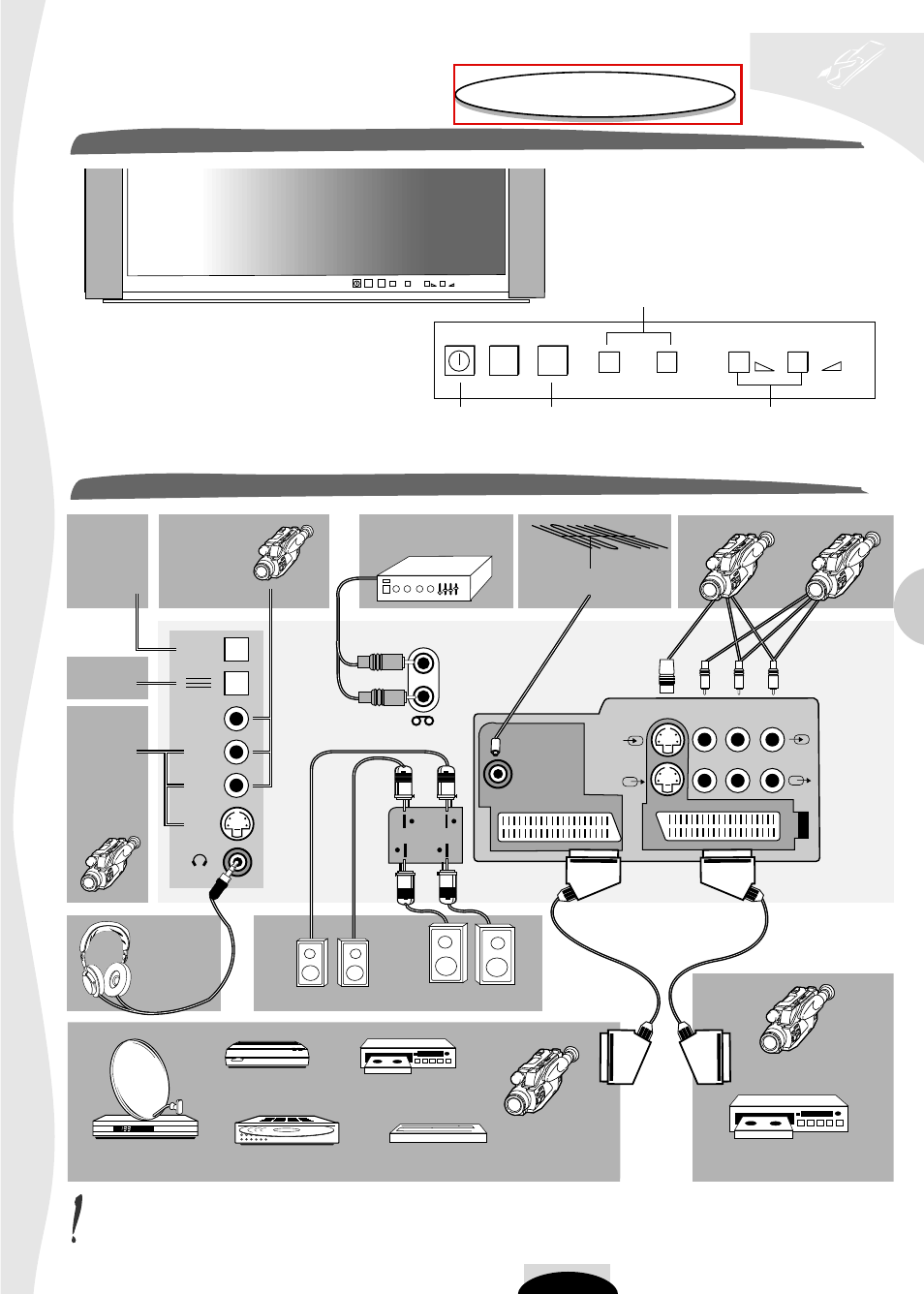

television set
connections
and commands
6
PR + PR -
+ -
On/Standby light :
Green : on
Red : Stand-By
Volume adjustments
Programme
Selection
On / Off
switch
PR + PR - + -
Video and
audio sockets
Installation-
menu
Display
S-Video
and
audio
sockets
AV3
AV3
AV 2 AV 1
Ψ 75
Camcorder
S-Video Video Audio
(IN)
(OUT)
Aerial
*
Main loudspeakers
Video recorder
Video recorder
Decoder
Video games console
CDV player
Camcorder
Camcorder
Surround loudspeakers
S-VHS
Hi-8 mm
VHS
8 mm
or
Satellite receiver
VIDEO
INSTAL
L
AUDIO
R
S
Headphone
spcket
Ø 6,35 mm
HiFi Amplifier
(OUT L)
(OUT R)
ON THE FRONT
AT THE BACK
GB
* We recommend that you use an aerial cable with double isolation.
AV1
AV2
For further details,
see page 23.
