television set
connections
and commands
5
Volume adjustments
Installation-menu
access button
On/Off Switch
Display
PR +
PR -
+
-
-
-
-
INSTAL
Programme Selection
PR +
PR -
+
-
- - -
INSTAL
On/Standby light :
Green : On
Red : Standby

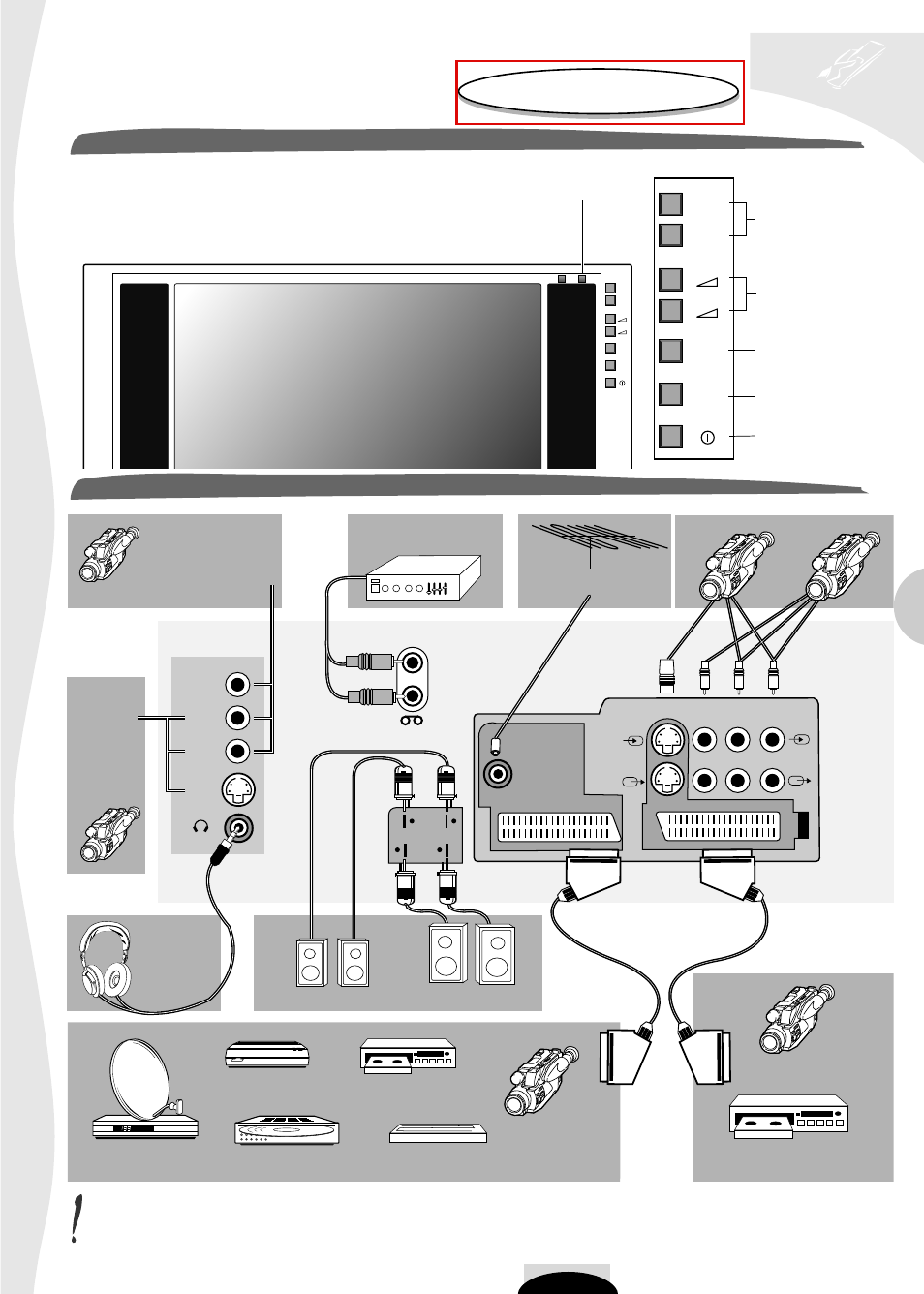

HiFi Amplifier
Video and
audio sockets
S-Video
and
audio
sockets
AV3
AV3
AV 2 AV 1
Ψ 75
(OUT L)
(OUT R)
Camcorder
S-Video Video Audio
(IN)
(OUT)
Aerial
*
Main loudspeakers
Video recorder
Video recorder
Decoder
Video games console
CDV player
Camcorder
Camcorder
Surround loudspeakers
or
Satellite receiver
VIDEO
L
AUDIO
R
S
Headphone
spcket
Ø 6,35 mm
S-VHS
Hi-8 mm
VHS
8 mm
ON THE FRONT
AT THE BACK
For further details,
see page 23.
GB
* We recommend that you use an aerial cable with double isolation.
AV1
AV2
SPACE SYSTEM SL 70 D
