FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: If you do not follow these instructions exactly, a
fire or explosion may result causing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must be
lighted by a push button sparker. When
lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the
appliance area for gas. Be sure to smell next
to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will
not push in or turn by hand, don't try to
repair it. Call a qualified service technician.
Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified
service technician to inspect the appliance
and to replace any part of the control system
and any gas control which has been under
water.
OPERATING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting and turn
appliance ON/OFF switch to "OFF".
1. STOP! Read the safety information above.
2. Set the thermostat to lowest setting and turn
appliance ON/OFF switch to "OFF".
3. Turn gas control knob clockwise until it
stops at "OFF" position.
4. Wait five (5) minutes to clear out any gas. If
you then smell gas, STOP! Follow "B" in the
safety information above. If you don't smell
gas go to the next step.
5. To find pilot—follow gas line
from gas valve to pilot
location.
6. Turn knob on gas valve
counterclockwise
to
"PILOT" then push control
knob all the way and hold down.
7. Push the button of the sparker, repeating until
confirming that pilot lights, by observing
reflection on burner tray mirror.
8. Continue to hold the control knob down for
about one (1) minute after the pilot is lit. If it
goes out, repeat steps 3 through 8.
• If knob does not pop out when released, stop
and immediately call your service technician
or gas supplier.
• If the pilot will not stay lit after several tries,
turn the gas control knob to "OFF" and call
your service technician or gas supplier.
9. Turn gas control knob counterclockwise
to "ON".
10. After replacing control compartment access
panel, set thermostat to desired setting and
turn appliance ON/OFF switch to "ON". Valve
has built-in delay before coming on.
11. If the appliance will not operate, check that the
filter pump is on, that the filter is clean and
water is flowing to the pool. Otherwise, follow
the instructions "To Turn Off Gas To
Appliance" and call your service technician or
gas supplier.
2. Turn gas control knob clockwise until it
stops at "PILOT". Then press down slightly on
knob while turning clockwise
to "OFF". Do
not force.

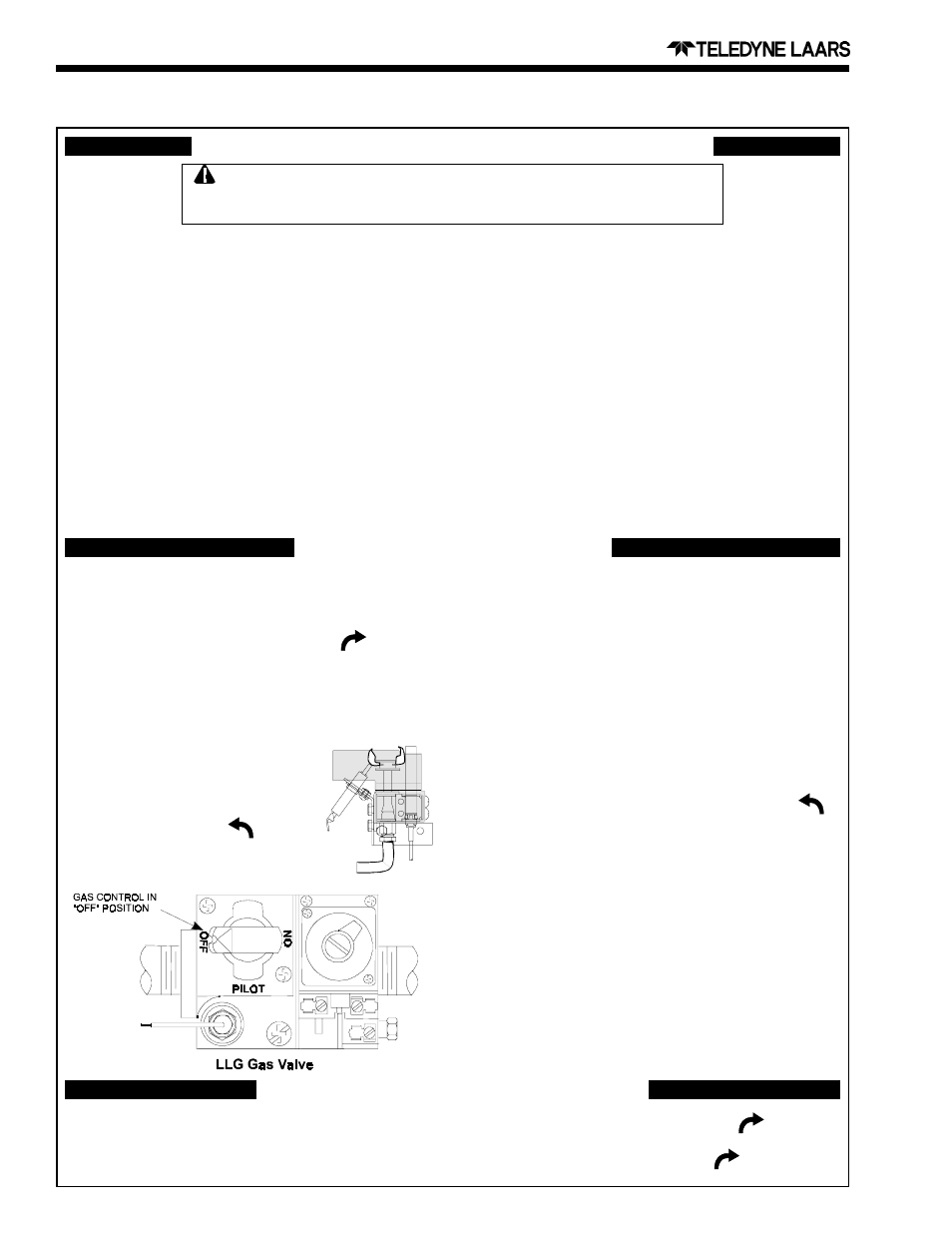

3B-2. Model LLG (Standing Pilot)
PILOT
BURNER
TO VALVE
