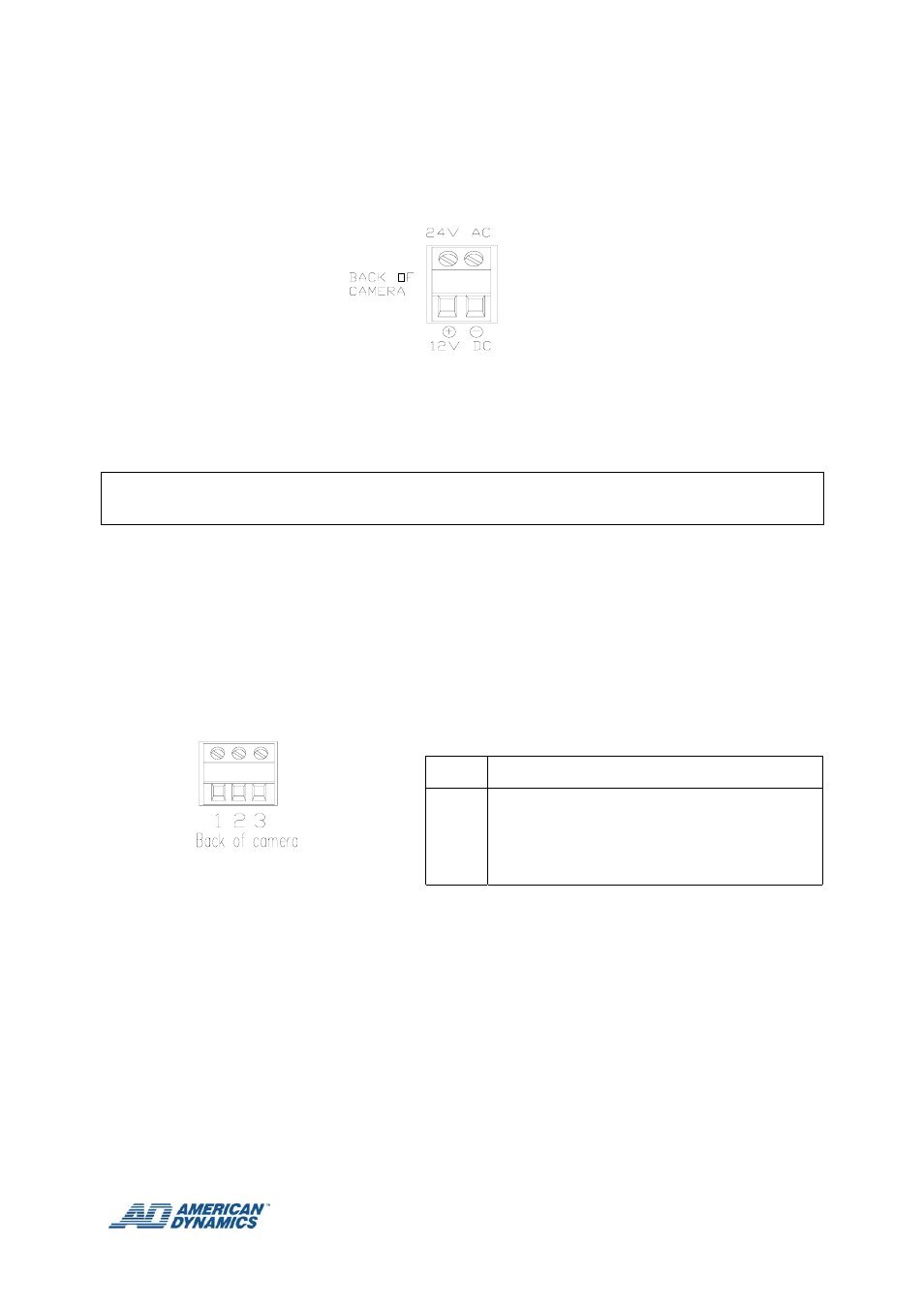

This terminal accepts 12 VDC or 24 VAC.
Power Requirement: Maximum 200 mA (12 VDC), Maximum 100 mA (24 VAC).
Recommended Power Supply: Minimum 500 mA (12 VDC); Minimum 300 mA (24 VAC).
Caution:
Use a 24V AC / 12V DC class 2 LPS supply only.
3. Auto Iris Lens Connector for VIDEO Drive Lens
This connector supplies 9 VDC power and video signal, without sync, for video-drive
type Auto Iris lens.
When using a VIDEO drive lens, the ALC/ELC DIP #1 must be set to the ALC (OFF)
position.
4. Auto Iris Lens Connector for DC Drive Lens
This connector supplies the control signals to the DC drive Auto Iris lens.
PIN Signal
1
2
3
GROUND
POWER SUPPLY (9 VDC, 40mA)
VIDEO OUTPUT (0.7Vp-p without sync)
