XL-12000B

HIGH-SPEED NETWORK MODEM

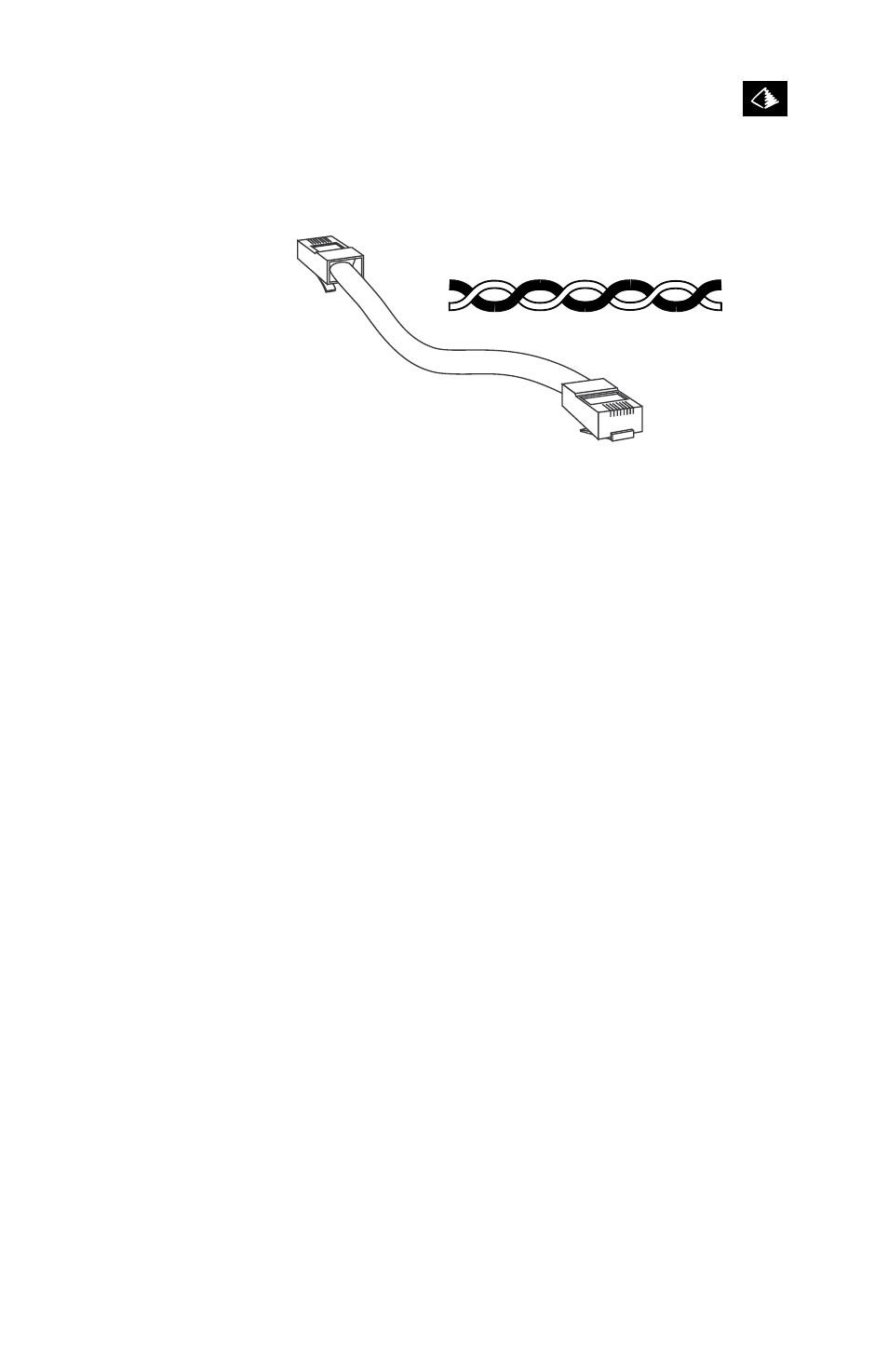

Figure 4.2 RJ-11 DSL Line Cable

3.

Select a convenient location near the Ethernet device to which
the modem will be connected. The modem should be kept away
from excessive heat or cold. Operating temperature range is
-5˚C to 55˚C.

4.

Connect an RJ-45 straight-through cable from the 10Base-T
Ethernet connector of the XL-12000B to an Ethernet device (PC,
server, workstation or hub) as shown in Figure 4.3. If connecting
to a PC, server, or workstation, set the Ethernet connection
switch on the back of the modem to the “Crossed” position.
If connecting to a 10Base-T hub, set the switch to “Normal”.

5.

Connect the RJ-11 DSL Line cable from the DSL connector on
the modem to the telephone jack.

6.

Verify that you have a telephone line linking the two XL-12000B
modems. Verify that this line has no bridge taps and is generally
free of noise.

7.

Connect the wall transformer as shown in Figure 4.3.
