The TPA311 Audio Power Amplifier Evaluation Module

3-3

Details

3.2

The TPA311 Audio Power Amplifier Evaluation Module

The TPA311 audio power amplifier evaluation module is powered by a TPA311
350-mW low-power audio amplifier IC and includes on-board gain adjustment,
a shutdown control signal input with on-board switch, and can be operated in
either the BTL or single-ended output mode.

The module can be used with the TI plug-n-play audio amplifier evaluation
platform (Figure 3 –1) or wired directly into circuits or equipment. The module
has single in-line header connector pins mounted to the under side of the
board. These pins allow the module to be plugged into the TI platform, which
automatically makes all the signal input and output, power, and control
connections to the module.

The module connection pins are on 0.1-inch centers to allow easy use with
standard perf board and plug board-based prototyping systems, or to be wired
directly into existing circuits and equipment when used stand-alone.

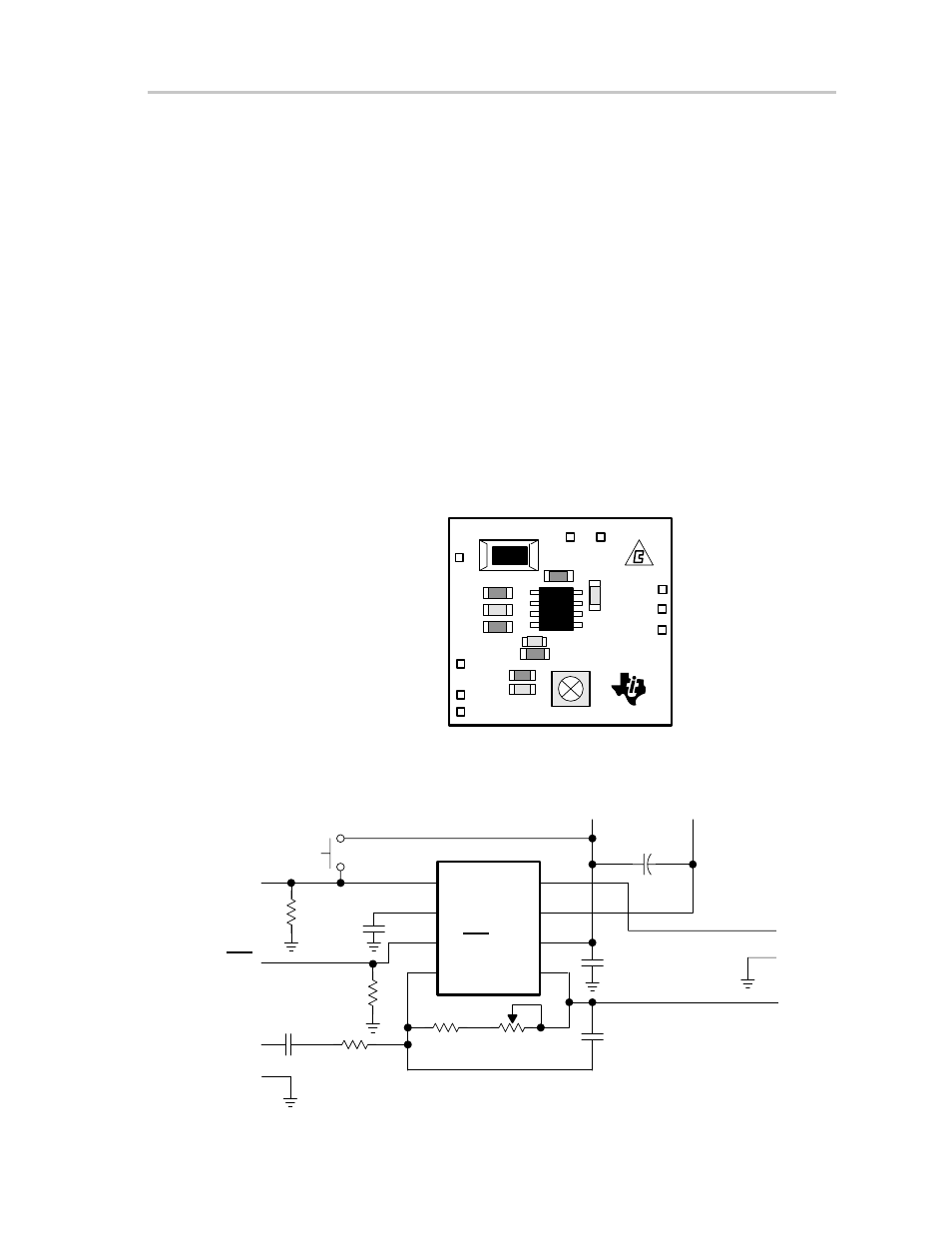

The module appears in Figure 3–2 and its schematic is shown in Figure 3 – 3.

Figure 3–2. TPA311 EVM

C4

R3

IN+

C2

Shutdown

R1

R2
C1

C5

C3

OUT–

GND

OUT+

GND

S1

GND

VDD

R4

EVM

Literature #
SLOP116

U1

TPA311

SE\BTL*

R5

009227

–3

Figure 3–3. TPA311 EVM Schematic Diagram

C2

2.2

µ

F

C1

1

µ

F

R1

20 k

Audio Input+

GND

Shutdown

S1

C4
5 pF

OUT–

GND

OUT+

R3

20 k

R4

200 k

R2

20 k

No

C5

10

µ

F

C3
2.2

µ

F

Shutdown

Bypass

SE/BTL

In

V

O –

GND

V

DD

V

O +

8

7

6

5

1

2

3

4

GND

VDD

2.5 V to 5.5 V

+

SE/BTL

R5

100 k
