II. INSTALLATION
IMPORTANT
IT IS THE CUSTOMER’S RESPONSIBILITY TO REPORT ANY
CONCEALED OR NON-CONCEALED DAMAGE TO THE FREIGHT
COMPANY.
A. Assembly
1.
Thread the 4” (102mm) legs into the four holes on the bottom of the
toaster. See Figure 2. Then, place the toaster in the desired location.
2. Install the entry rack and crumb tray into the front of the toaster, as
shown in Figure 2.

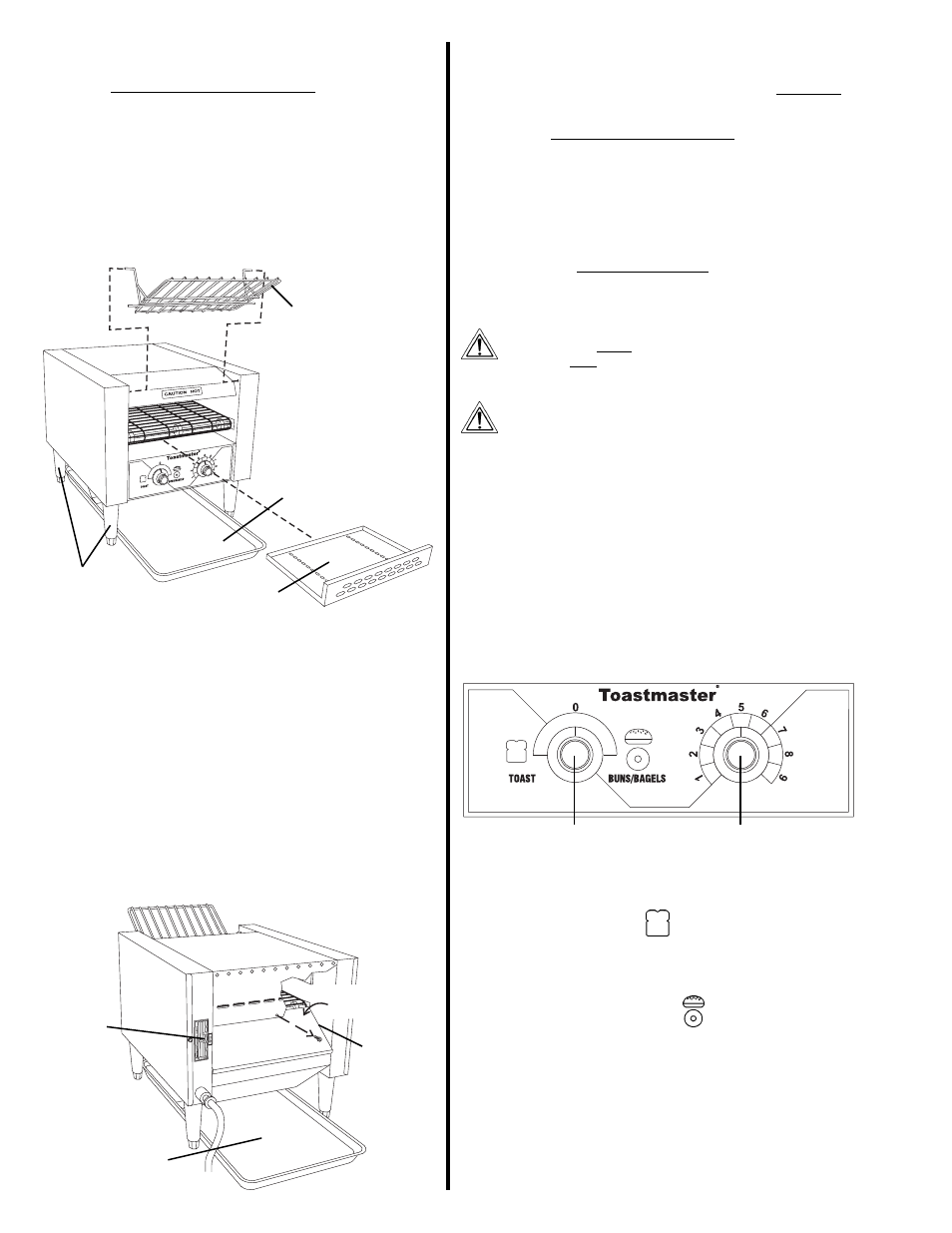

Figure 2 - Basic assembly and front-exit configuration
Legs (4)
thread into holes
in bottom of
toaster
Entry rack
hanger rods fit
into holes on
toaster body
Crumb tray
slides into opening
in front of toaster
Return tray
slides underneath
toaster
Figure 3 - Electrical connection and rear-exit configuration
3. TOASTERS INTENDED FOR FRONT-EXIT OPERATION ONLY:
Position the return tray underneath the toaster, as shown in Figure
2. Note that the return tray extends past the FRONT of the toaster
during front-exit operation.
4. TOASTERS INTENDED FOR “STRAIGHT-THROUGH,” REAR-
EXIT OPERATION ONLY:
•
Remove the CENTER screw from the rear panel of the toaster,
as shown in Figure 3.
• Push the rear panel forward into the toaster.
• Position the return tray underneath the toaster as shown in
Figure 3. Note that the return tray extends past the REAR of
the toaster during rear-exit operation.
2. Adjust
panel
1. Remove
screw
Return tray
slides underneath
toaster
B. Electrical Utility Connection
IMPORTANT
THE ELECTRICAL CONNECTION TO THE TOASTER REQUIRES A
CIRCUIT BREAKER/FUSED DISCONNECT. ELECTRICAL SPECIFI-
CATIONS ARE LISTED ON THE SERIAL PLATE (SHOWN IN FIGURE
3), AND IN THE ELECTRICAL SPECIFICATIONS ON PAGE 1 OF THIS
MANUAL.
CONSULT ALL APPLICABLE NATIONAL AND LOCAL CODES FOR
FURTHER ELECTRICAL CONNECTION REQUIREMENTS.
1. Before proceeding with the electrical connection, check the following:
a.
Check that the electrical supply matches the toaster’s
requirements. Refer to the toaster’s serial plate (Figure 3)
and to the Electrical Specifications on Page 1.
b. Check that the appropriate receptacle is available for the power
cord plug.
WARNING
ENSURE THAT BOTH THE CIRCUIT BREAKER/FUSED DIS-
CONNECT AND THE PRODUCT SELECTION KNOB ARE IN
THE OFF (“0”) POSITION BEFORE PROCEEDING.
WARNING
ENSURE THAT ANY PACKING MATERIAL RESIDUE HAS
BEEN REMOVED FROM INSIDE THE TOASTING CHAMBER.
3. Insert the power cord plug into its receptacle.
Serial plate
III. OPERATION
A. Location and Function of Controls
This section provides a basic description of the toaster controls, their
location, and the functions they perform. The operator MUST be familiar
with the controls. Refer to Figure 4.
Figure 4
1. Product
selection knob
2. Conveyor
speed control
knob
1. Product Selection knob
• When set to TOAST ( ), switches on the conveyor, the
upper heating element, and one lower heating element.
• When set to OFF (“O”), switches off the conveyor and all heating
elements.
• When set to BUNS/BAGELS ( ), switches on the conveyor
and both of the lower heating elements.
2. Conveyor Speed Control knob
Adjusts the speed of the conveyor. This controls the amount of
toasting that the bakery product receives.
• “1” is the minimum speed setting, which produces a darker
toasting of the bakery product.
• “9” is the maximum speed setting, which produces a lighter
toasting of the bakery product.
