INSTALL WEATHERSTRIP

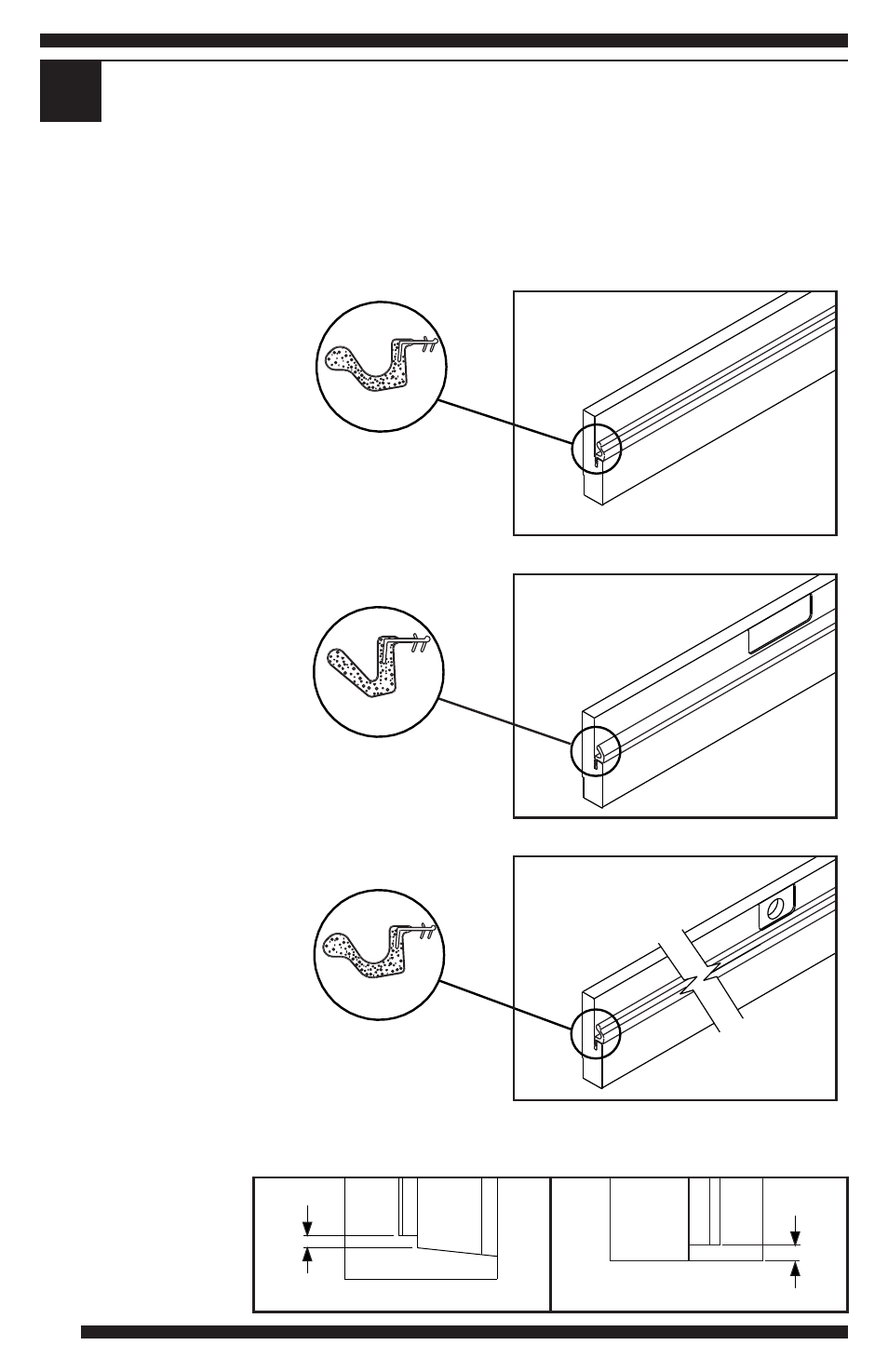

Apply Weatherstrip to Active Frame Parts
Press in kerf with hand.
Trim Bottom End
Trim weatherstrip
as shown.
Lock Jambs
Hinge Jambs
Head Jambs
Align starting end with
Align starting end with
Align starting end with
head gain.
head gain.
head gain.
Fit and secure in place
Fit and secure in place
Fit and secure in place
along full length.
along full length.
along full length.
Trim finish end flush with
end of jamb.
4
Long Reach
Short Reach
Long Reach
11/32”
Outswing
3/8"
Inswing
Lock Jamb
Hinge Jamb
Head Jamb
5
