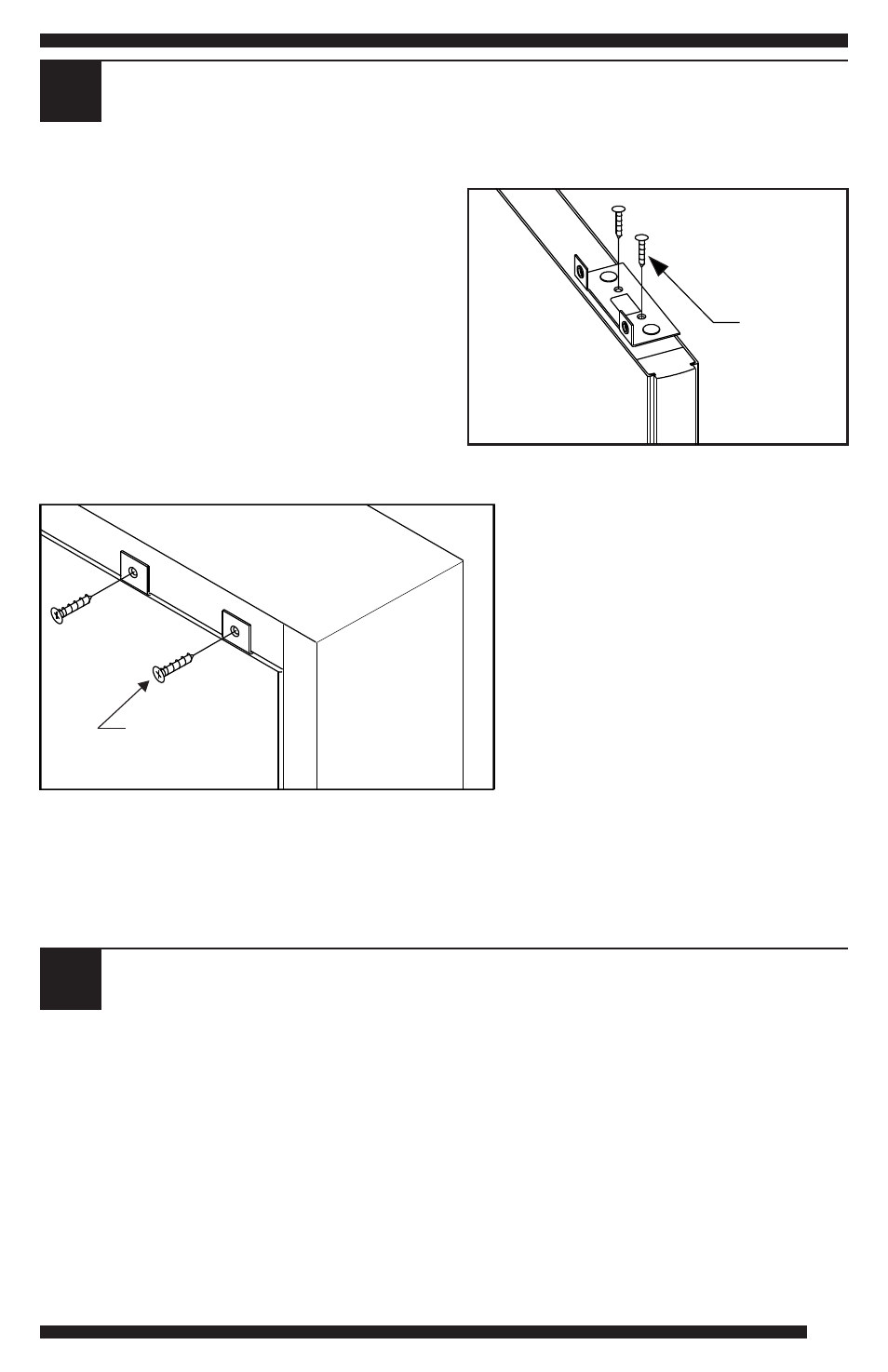

ATTACH TRANSPORT CLIP - continued

UNIT READY FOR INSTALLATION

Attach Transport Clip to
Frame

Close door into frame ensuring
margins are even at head jamb.

Fasten transport clip to frame
with (2) #6 x 3/4” flat head
screws.

Unit can now be transferred for installation. Gather any remaining
components and hardware as they may be used for installation.

See

“Unit Installation” instructions.

#6 x 3/4"
flat head
screws

Attach Transport Clip to Door

Place flattened transport clip on top of
door approximately 1 to 2 inches from
lock side edge.

Fasten with (2) #6 x 3/4” flat head screws.

#6 x 3/4"
flat head screws
