8. Connection and Installation
VIDEO DDC DC 5V
CAT5 OUTPUT
HDMI OUTPUT
HDMI INPUT
DDC VIDEO DC 5V EQUALIZER 1 2 GAIN
ADJUST
CTI 250 150 100 50
MIN MAX
CAT5 INPUT
5

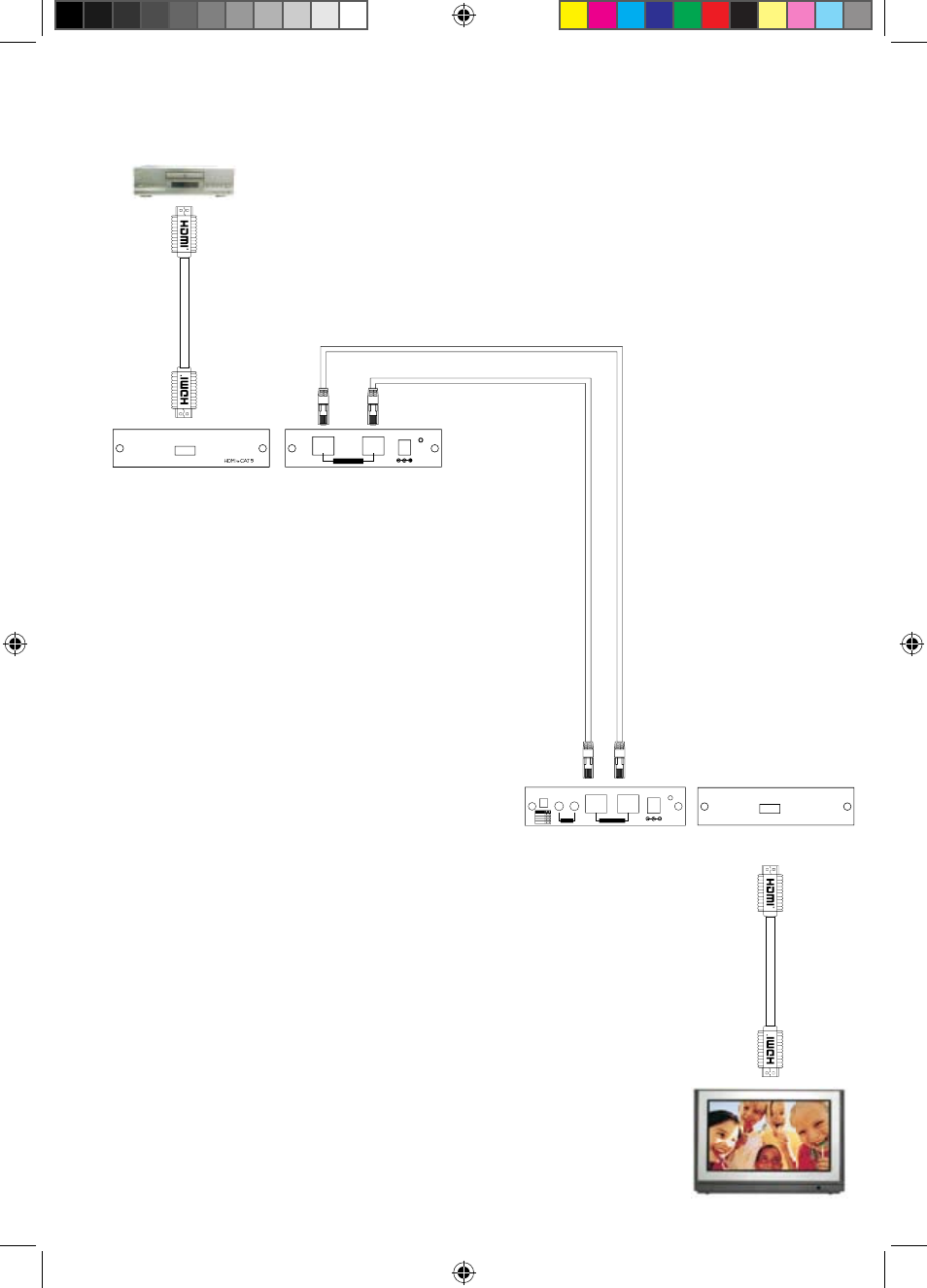

DDC (CAT5/CAT5E/CAT6 Cable)
VIDEO (CAT5/CAT5E/CAT6 Cable)
DVD Player, Satellite Receiver
Cable, STB, or Gaming Console
HDMI ™
Cable
HDMI ™
Cable
Transmitter Unit
Front
Transmitter Unit
Rear
50 Meters
Receiver Unit
Rear
Receiver Unit
Front
