HDMI INPUT

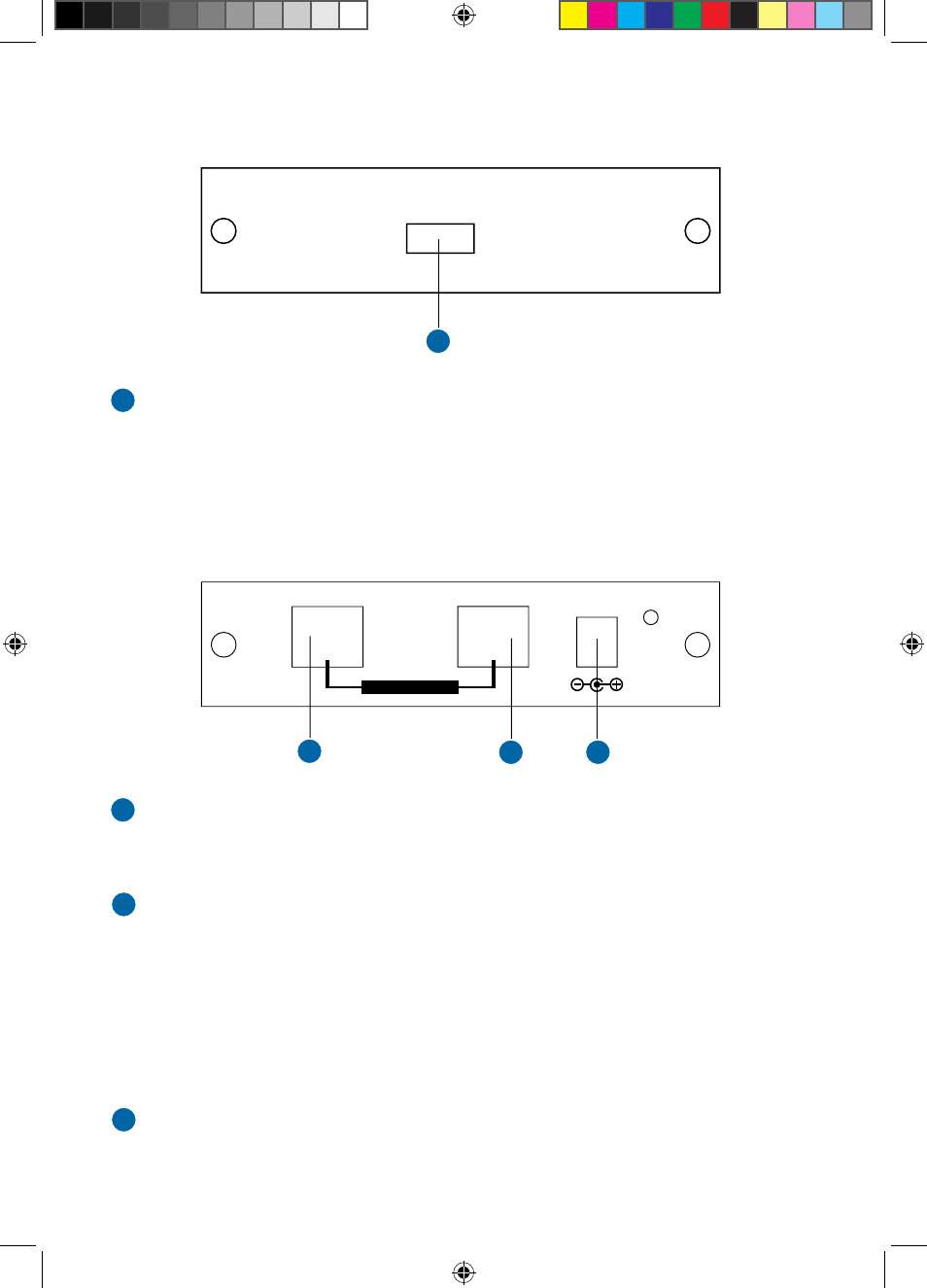

4. Transmitter Operational Controls and Functions
4.1 Front Panel
1. HDMI INPUT:
Connect the HDMI input to the HDMI or DVI output (using a DVI to
HDMI adaptor) of your source equipment such as a DVD player or
set-top-box.
4.2 Rear Panel
VIDEO DDC
DC 5V
CAT5 OUTPUT
1 2 3
1. VIDEO OUTPUT:
Connect the VIDEO output to the VIDEO input of the receiver unit
using CAT5/CAT5E/CAT6
2. DDC OUTPUT:
Connect the DDC output to the DDC input of the receiver unit using
CAT5/CAT5E/CAT6 cable.
Note: If it’s known that the DDC or HDCP data are not required for
the source and the display, you can use a single CAT5/CAT5E/CAT6
cable to connect the VIDEO output of the transmitter and VIDEO
input of the receiver.
3. POWER:
Plug the 5VDC power supply into the unit and connect the adaptor to
AC wall outlet.
1
1
1
2 3
1
2
3
