4

Charging the Battery

No Parts Required

Procedure

Electric-start model only

Refer to Charging the Battery (page 18).

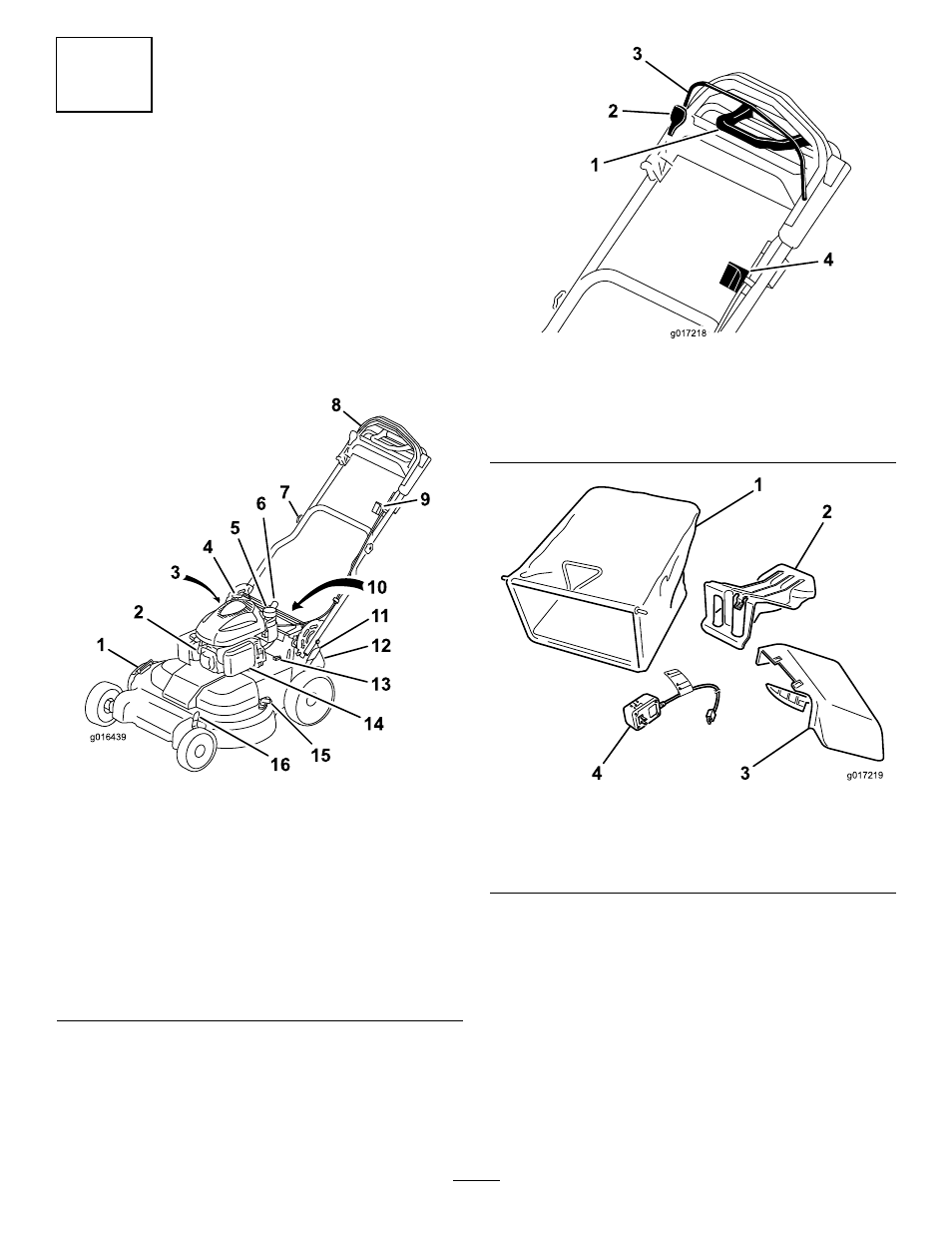

Product Overview

2

14

1

13

3

4

5

6

7

8

9

10

1

1

12

g016439

15

16

Figure 8

1.

Side-discharge deflector

9.

Ignition switch

2.

Spark plug

10.

Battery (not shown;
electric-start model only)

3.

Dipstick/oil-fill tube (not
shown)

11.

Rear cutting-height lever

4.

Recoil-start handle

12.

Rear-discharge deflector

5.

Fuel-tank cap

13.

Fuse

6.

Handle-lock lever

14.

Air filter

7.

Handle knob (2)

15.

Washout port

8.

Upper handle

16.

Front cutting-height lever

2

1

3

4

g017218

Figure 9

Upper handle

1.

Traction-assist handle

3.

Blade-control bar

2.

Blade-control bar lock

4.

Ignition switch

g017219

1

2

3

4

Figure 10

1.

Grass bag

3.

Side-discharge chute

2.

Rear-discharge plug
(installed)

4.

Battery charger
(electric-start model only)

7
