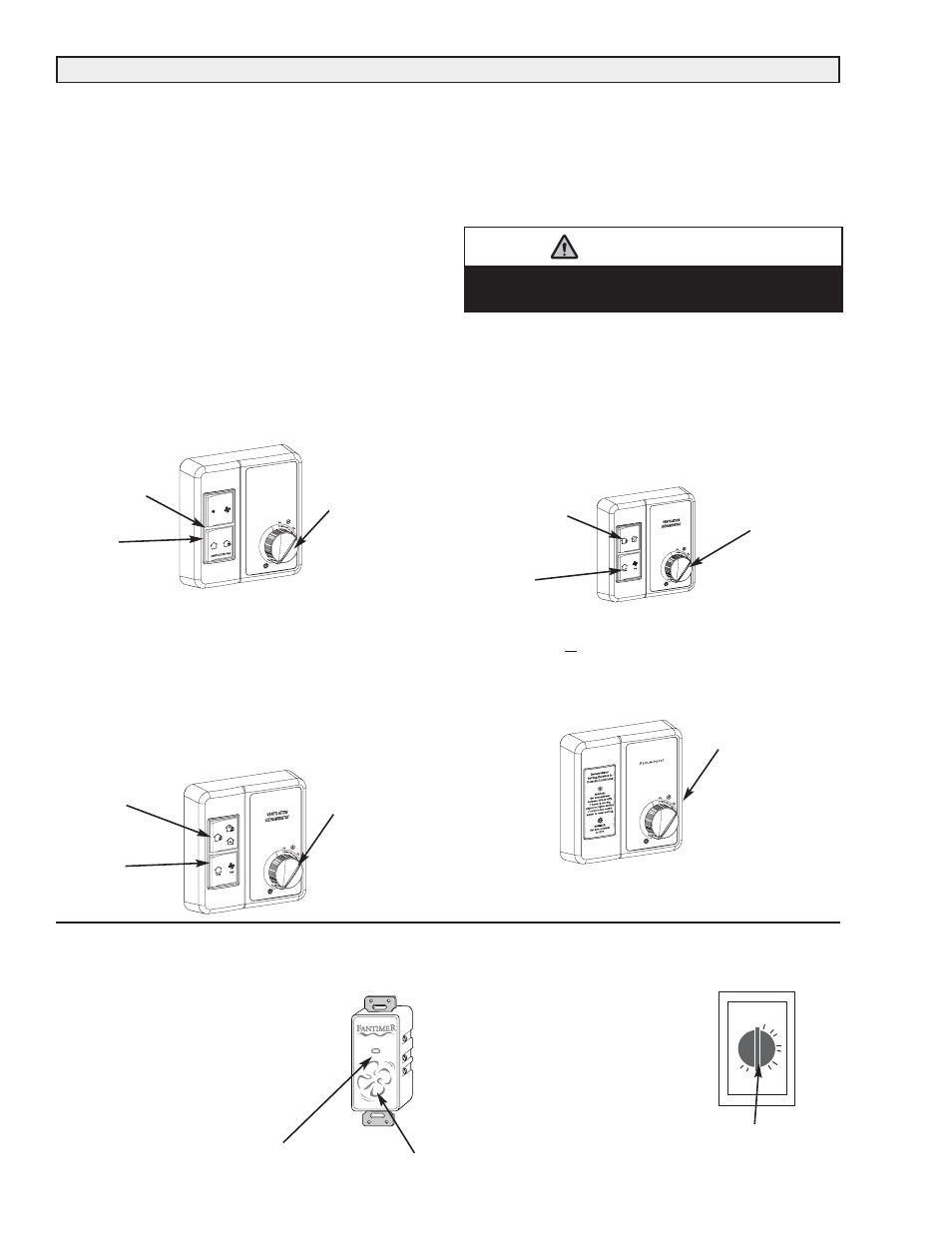

Ventilation Dehumidistat
PART NO. 99-116
The High/Low Speed Switch initiates High or Low speed
ventilation. This control also has an ON/OFF Switch and a
Dehumidistat Dial (refer to "The ON/OFF Switch" and "The
Dehumidistat Dial" descriptions).
Recirculation Control
PART NO. 99-RECIRC Note: For use with RNC5-TPD only
The Recirculation Switch will toggle from continuous low
speed ventilation to recirculation mode (closes the fresh air
damper and circulates the building air). The Dehumidistat
Dial will initiate High Speed ventilation when the indoor
humidity level exceeds the set point (regardless position of
the RECIRC Switch.). This control also has an ON/OFF
Switch and a Dehumidistat Dial (refer to "The ON/OFF
Switch" and "The Dehumidistat Dial" descriptions).
Remote Control Devices
20 Minute Timer
PART NO. 99-132
Connects to RED, BLACK and GREEN
(LED drive) terminals. Use a minimum of
three 20 gauge low voltage wire. Connect
up to 4 on 100 ft (91 m) wire max. Mounts in
a 2 x 4 box.
DEHUMIDIST AT
Off 10
20
30
40 50
60
Optional Main Controls
The amount of ventilation required in your home will fluctu-
ate according to the activity level in the house. Higher activity
levels require more ventilation.
Main controls can be mounted in a central location of the
home (i.e. beside the furnace thermostat) which will provide
the user with complete control over their ventilation system
from a convenient location.
The ON/OFF Switch
The ON/OFF Switch will turn the HRV ON or OFF. Controls
with an ON/OFF switch can be modified to ON/Standby by
adjusting the circuit board DIP Switches (Refer to "Mode DIP
Switch Settings").
The Dehumidstat Dial
Main controls feature a dehumidistat dial. The dehumidistat
is used to reduce high winter humidity levels. The dehumidis-
tat activates high speed ventilation when the indoor humidity
level exceeds selected setting.
Optional Timers
Timers should be present when the HRV is exhausting from
specific locations i.e bathrooms, laundry rooms. The 20
Minute Timer is the best selection, however, the crank timer
will be necessary if only 2 lead low voltage wires are pres-
ent.
Only one main control can be installed on your
system.
ATTENTION
Dehumidistat
Dial
High/Low
Speed Switch
ON/OFF
Switch
Crank Dial
Rotate the dial for up to 60
minutes high speed opera-
tion.
D e h u m i d i s t a t
Dial
Recirculation
Switch
ON/OFF
Switch
20/40 ON/OFF Dehumidistat
PART NO. 99-2040
The 20/40 Switch will toggle from continuous low speed ven-
tilation to an intermittent mode of 20 minutes fan ON (in low
speed) and 40 minutes fan OFF. The Dehumidistat Dial will
initiate High Speed ventilation when the indoor humidity level
exceeds the set point (regardless position of the 20/40
Switch.). This control also has an ON/OFF Switch (refer to
"The ON/OFF Switch" description).
Remote Dehumidistat
PART NO. 99-130 White
The Remote Dehumidistat activates high speed ventilation
when the indoor humidty level exceeds the set point.
Dehumidistat
Dial 20/40
Switch
ON/OFF
Switch
Dehumidistat
Dial
Crank Timer
PART NO. 99-101
Connects to RED and BLACK termi-
nals. Use a two 18 gauge low
voltage wire. Mounts in a 2 x 4 box.
The crank timer provides a solution
to installing a system where only 2
wires are present for the timers.
20 Minute Status Lights
The 20 Minute Status Light indicates
high speed operation is activated. Touch Pad
The Touch Pad initi-
ates
high speed
operation.
