10
Outdoors
*Unit is normally balanced on HIGH speed
with air handler blower ON.
NOTES:
1. Weather hood arrangement is for drawing purposes only. 6' (2m) minimum separation required.
18" (460mm) above grade minimum or above anticipated snow level .
2. The HRV air flow must be confirmed on site, using the balancing procedure found in the installation manual.
Weather hood arrangement - requires a minimum
of 6' (2m) separation and a minimum of 18" (460mm)
clearance above grade or anticipated snow level.
CAUTION
● Stale air drawn from key areas of
home (bathroom, kitchen, laundry)
● Fresh air supplied to main living
areas of house
HRV must be balanced.
WARNING
Stale Air To Outside
Fresh Air From Outside
STALE AIR from various parts of home.
i.e. bathrooms (if required), kitchens (if required).
Fresh Air To Building

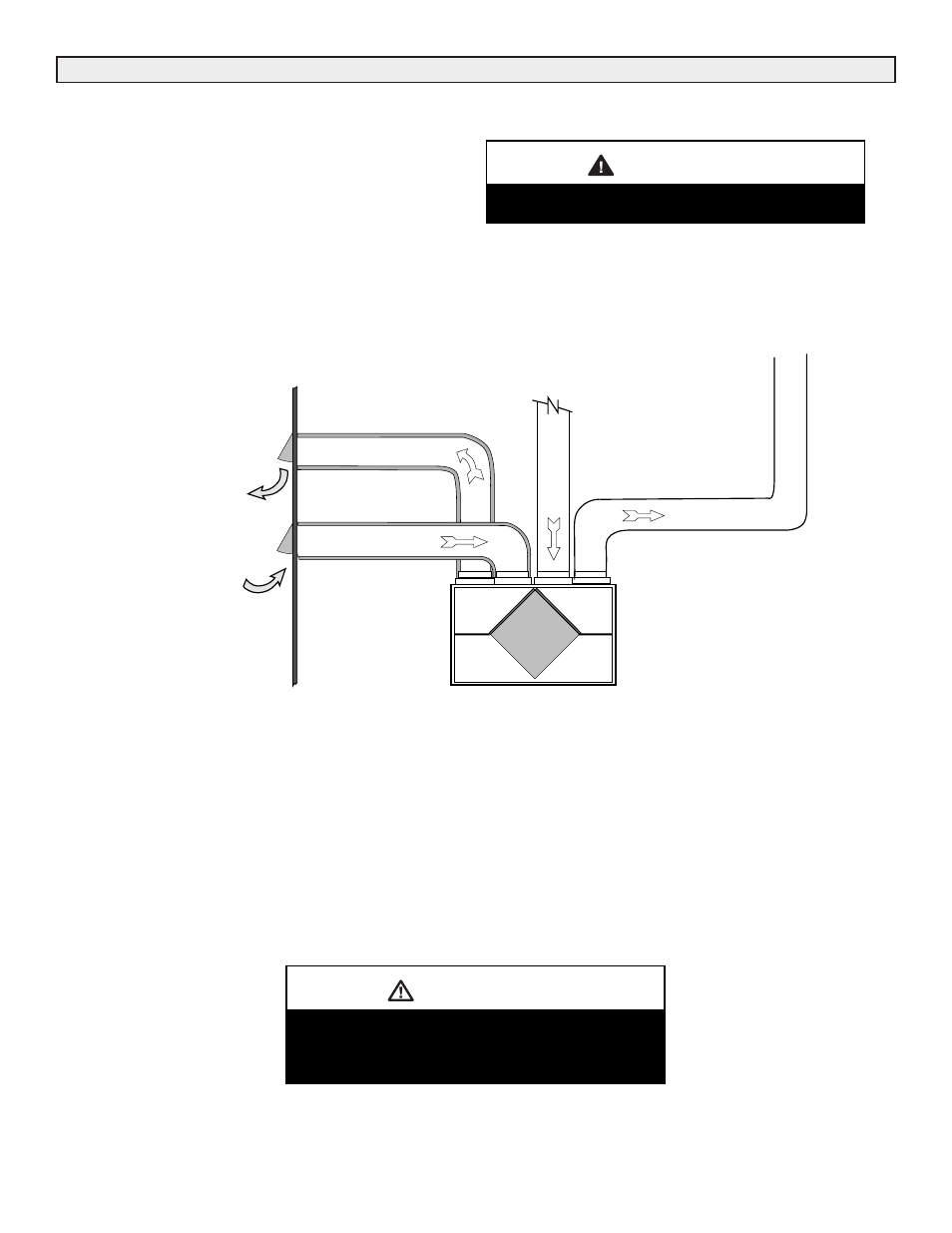

Application Illustrations Fully Dedicated System for HRV
