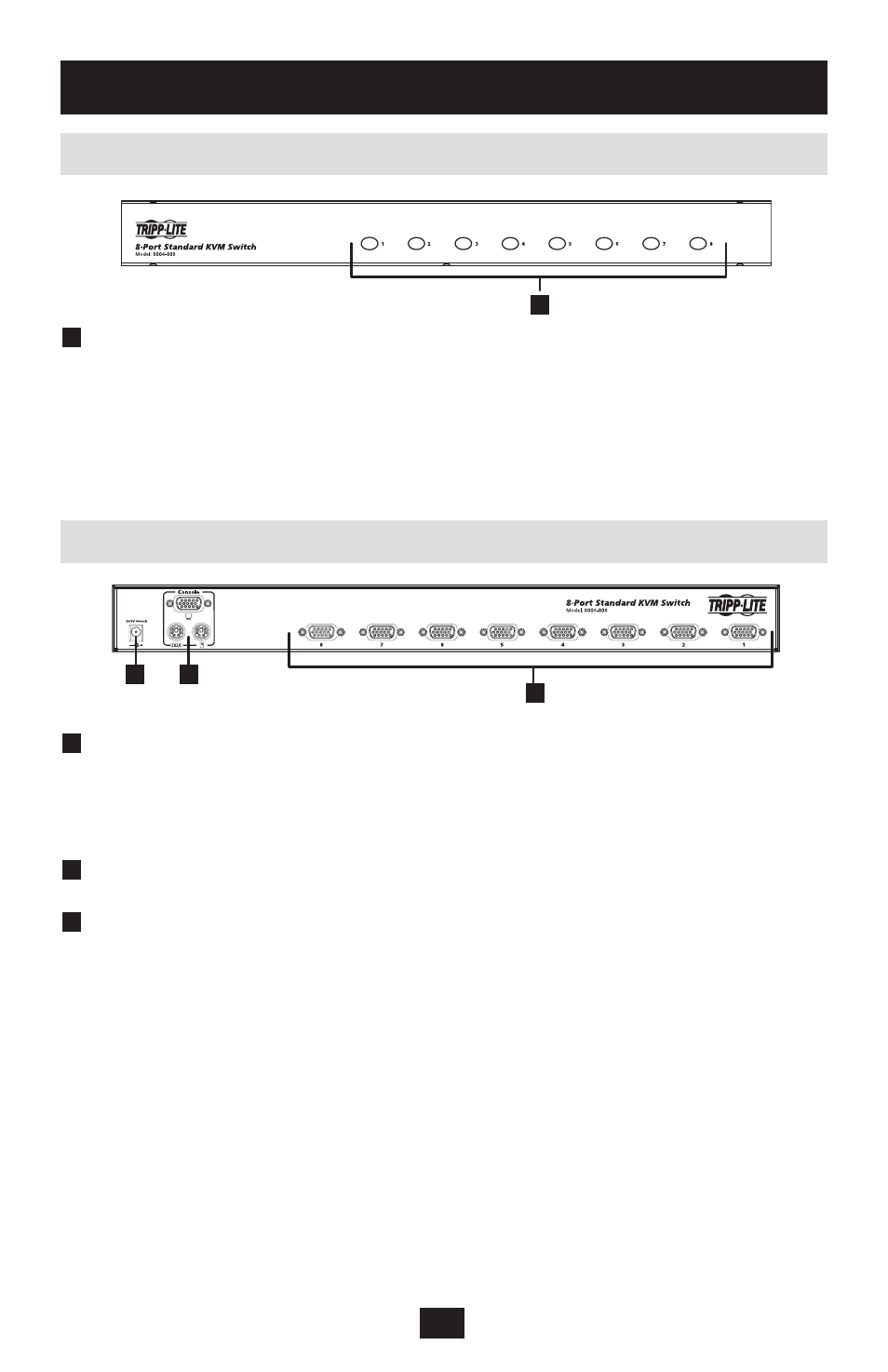

Controls and Connections
1 Lighted Port Selection Button
Lights GREEN to indicate which ports have been selected. •
Lights RED to indicate which ports are connected to a computer and powered on. •
An unlit button indicates that no computer is connected or that the connected computer •
is not powered on.
A flashing button indicates which port is currently selected in the auto-scan mode.
•
1 Power Jack
The optional power adapter plugs in here. The switch is designed to be non-powered
(no external power required). It draws the necessary power from the connected CPUs
through the Keyboard/Mouse connection. External power is required if the CPUs do not
provide sufficient power (operation will be erratic).
2 Console Port Section
Your monitor, keyboard and mouse plug in here.
3 CPU Port Section
The cables from the PCs plug in here.
Front View
Rear View
