Controls & Features
4
11
Cylinder
Log Dislodger
Control Handle
Wedge
Beam Assembly
Log
Tray
Vertical
Beam
Lock
Jack Stand
Tongue
Horizontal
Beam Lock
End Plate

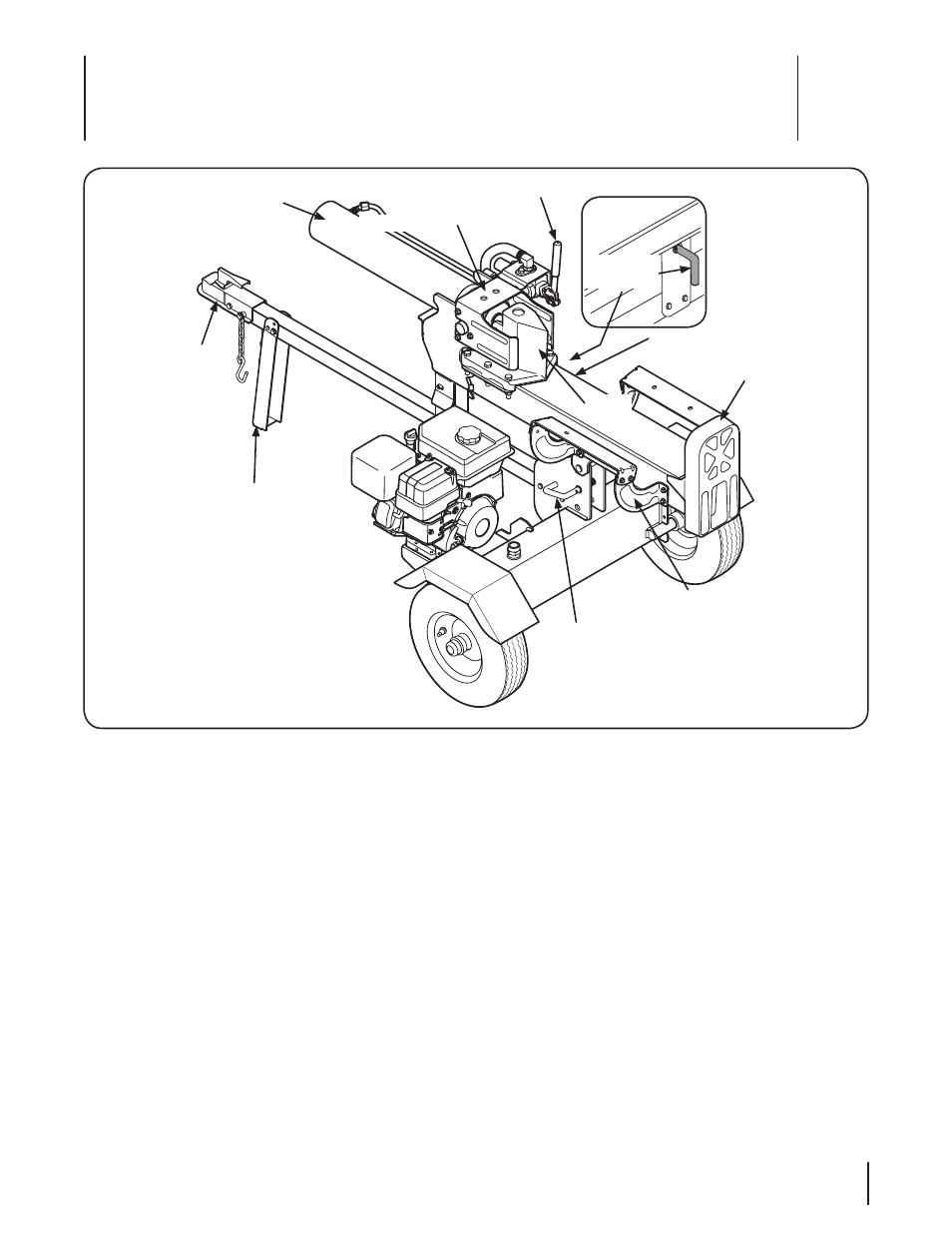

Figure 4-1
Engine Controls
See the Engine Operator’s Manual for the location and function
of the controls on the engine.
Beam Locks
These two locks, as their name suggests, are used to secure the
beam in the horizontal or the vertical position. The vertical beam
lock is located next to the engine. The horizontal beam lock is
located on the beam support latch bracket.
Control Handle
The control handle has three positions; Forward, Neutral and
Reverse. See the Operation section for instructions.
Wedge
The wedge is used to split the wood.
Log Dislodger
The log dislodger is designed to remove any partially split wood
from the wedge. This may occur while splitting large diameter
wood or freshly cut wood.
Log Tray
The log tray is designed to catch the log after it is split.
Tongue
The tongue is used to attach to a towing vehicle for
transportation.
End Plate
The end plate holds the log in place while the wedge splits the
log.
