Check the fluid level using the dipstick. See Fig. 3-9. Do not 3.
overfill.
NOTE: Approved fluids include Shell Tellus® 32 Hydraulic
Fluid, Dexron® III/Mercon® automatic transmission fluid,
Pro-Select™ AW-32 Hydraulic Oil or 10WAW-ISO viscosity
grade 32 hydraulic oil. It is not recommended that fluids be
mixed, to top off the reservoir tank during initial set-up use
Shell Tellus® 32 Hydraulic Fluid only.
Replace the vented dipstick securely, tightening it until the
4.
top of the threads are flush with top of the pipe.
Disconnect the spark plug and prime the pump by pulling the
5.
recoil starter as far as it will go. Repeat approximately 10 times.
Reconnect the spark plug wire and start the engine
6.
following instructions in the Engine Operator’s manual.
Use the control handle to engage the wedge to the farthest
7.
extended position. Then retract the wedge.
Refill the tank as specified on the dipstick if necessary
8.
NOTE: Failure to refill the tank will void the splitter’s
warranty.
Extend and retract the wedge 12 complete cycles to
9.
remove any trapped air in the system (the system is “self-
bleeding”).
Refill the reservoir within the range marked on the dipstick
10.
if necessary.
NOTE: Some fluid may overflow from the vent plug as
the system builds heat and the fluid expands and seeks a
balanced level.
Set-Up
Gas and Oil Fill-Up
Service the engine with gasoline and oil as instructed in
the engine manual packed with your log splitter. Read the
instructions carefully.
WARNING! Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
NOTE: Your log splitter may be shipped with motor oil in the
engine. You MUST check the oil level before operating. Be careful
not to overfill. Gasoline can be added to the engine when the log
splitter is in either the horizontal or vertical position. However, it
may be easier when the splitter is in the vertical position.
Tire Pressure
The max recommended operating pressure is 30 psi. Under any
circumstances do not exceed the manufacturer’s recommended
psi. Maintain equal pressure on all tires.
WARNING! Excessive pressure when seating beads
may cause tire/rim assembly to burst with force
sufficient to cause serious injury.
Preparing the Log Splitter
Lubricate the beam area (where the splitting wedge will 1.
slide) with engine oil. Do not use grease.
Remove the vented reservoir dipstick, which is located in
2.
front of the engine on top of the reservoir tank. See Fig. 3-9.
NOTE: The log splitter is filled to the proper operating level
from the manufacturer with Shell Tellus® 32 Hydraulic Fluid.
However, you MUST check the fluid level before operating.
If not filled, proceed with the following steps:
WARNING! Much of the original fluid has been
drawn into the cylinder and hoses. Make certain to
refill the reservoir to prevent damage to the
hydraulic pump.

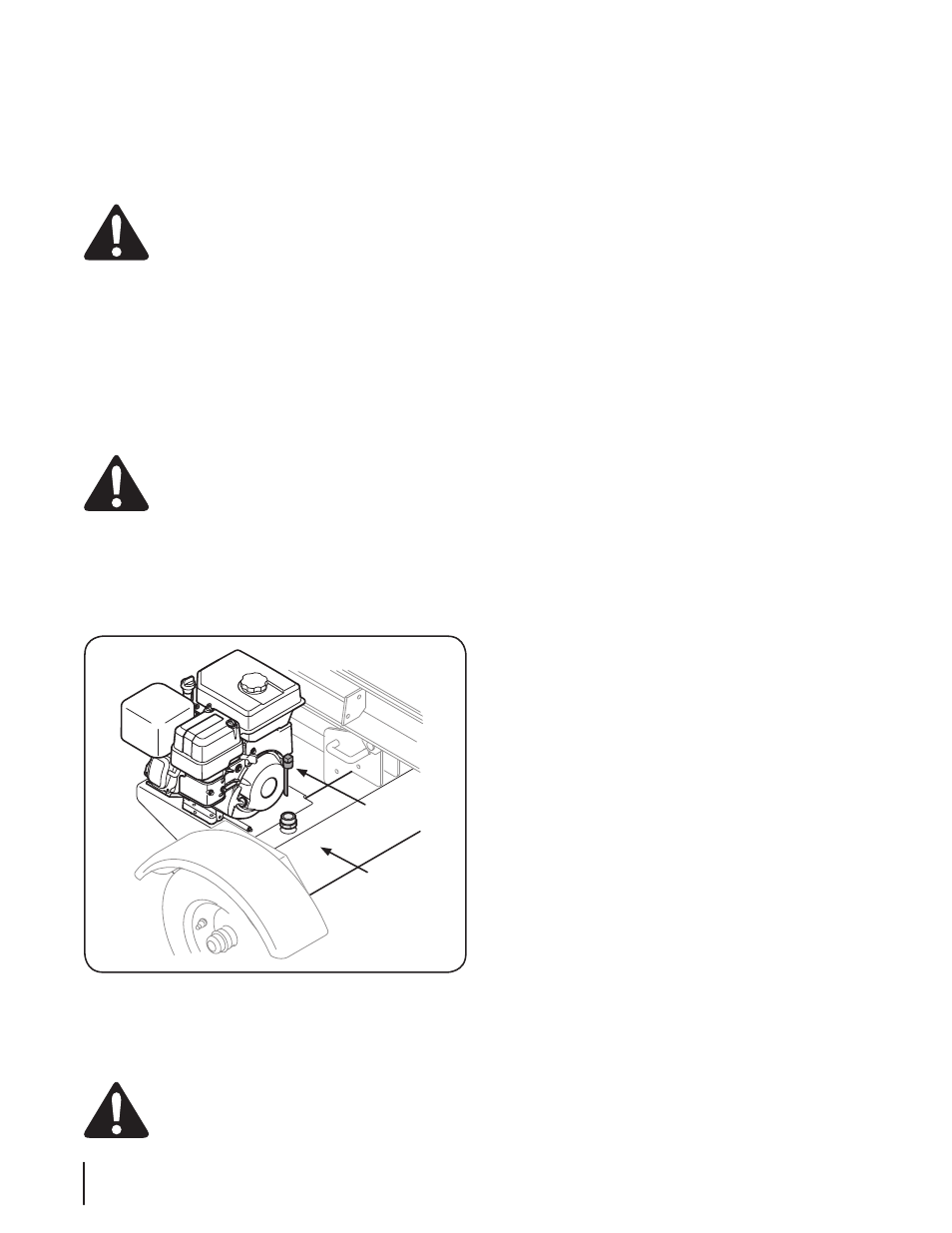

Dipstick
Reservoir
Tank
Figure 3-9
