TRENDnet TEG-S4000 User Manual
Page 10

Port 1
Port 3
Port 4
Port 2
DIP Sw itch Location
Fu
ll
D
u
p
le
x
Hal
f Du
p
lex
4
3
2
1
ON
OF
F

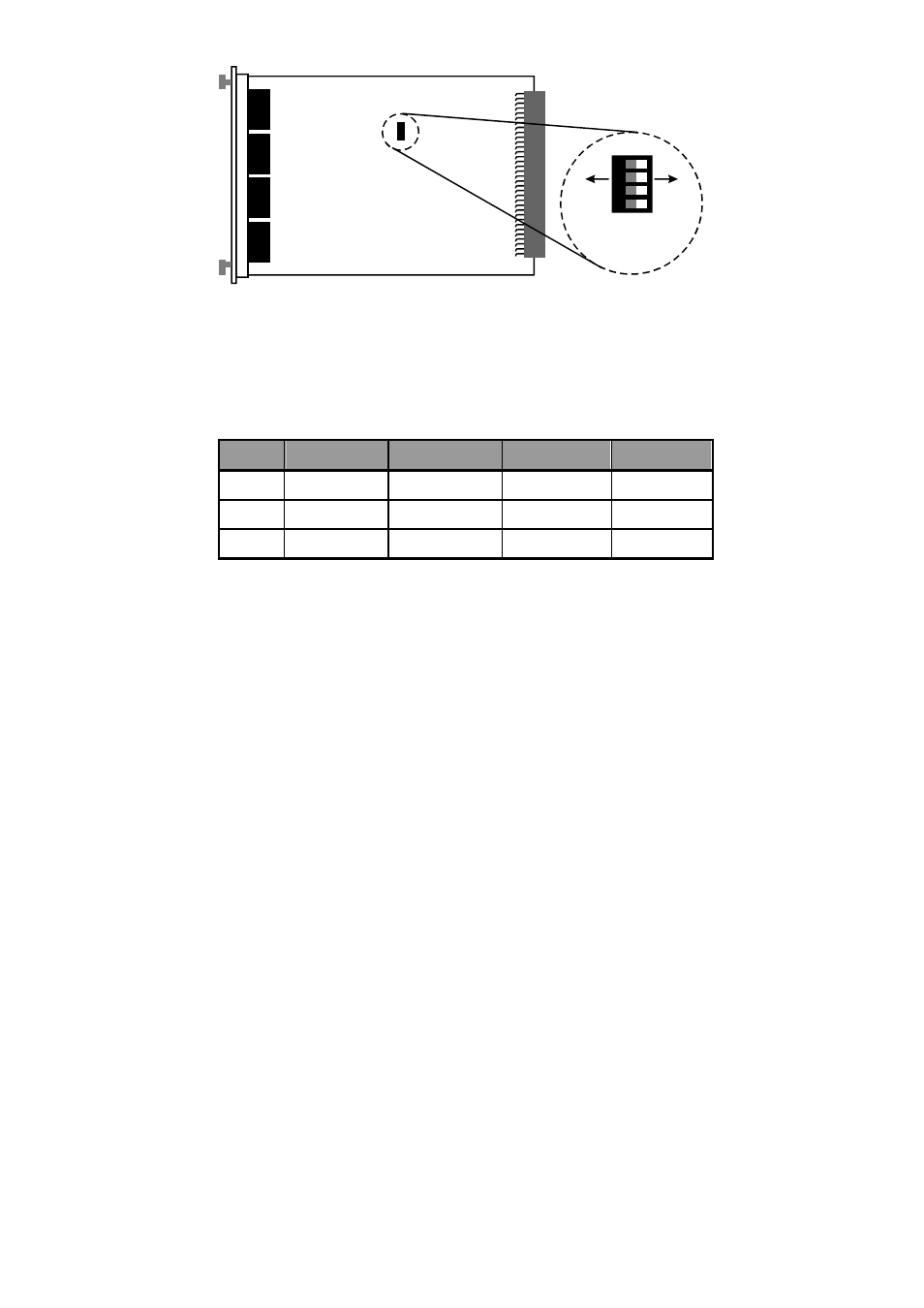

Figure 1-9. Location and setting duplex mode
The following Table1-3. lists the ports operating modes
based on the DIP switch position.
PORT 1
PORT 2
PORT3
PORT4
SW 1
2
3
4
ON Half-Duplex
Half-Duplex Half-Duplex Half-Duplex
OFF Full-Duplex
Full-Duplex Full-Duplex Full-Duplex
Table 1-3. 4 ports 100Base-FX Fiber Module DIP switch
functions
4 ports 100Base-FX Fiber Module Feature
Conforms to IEEE 802.3u Fast Ethernet standard
Support SC or ST fiber connector (optional)
Support half and full duplex via DIP switches
Store-and-forward switch architecture for abnormal
packets filtering
Back-plane up to 2.4Gbps
5 M bytes Packet Buffer
Automatic address learning with 12K address entry
storage
Filtering and forwarding rate 148,800 packets per
second for 100Mbps
100Base-FX uses 62.5/125um multi-mode fiber or
8/125 um single mode fiber for single mode type
