14
Change Detect DC Input Module (CD332)
3. Mode Setting
3.1 Input delay setting
The input delay time of the CD332 can be selected either normal or high speed mode.
Refer to section 2.2 for the delay time of each mode.
The input delay setting is made by the jumper plugs provided on the CD332’s printed
circuit board. This setting is applied for all 8 input points as a block.

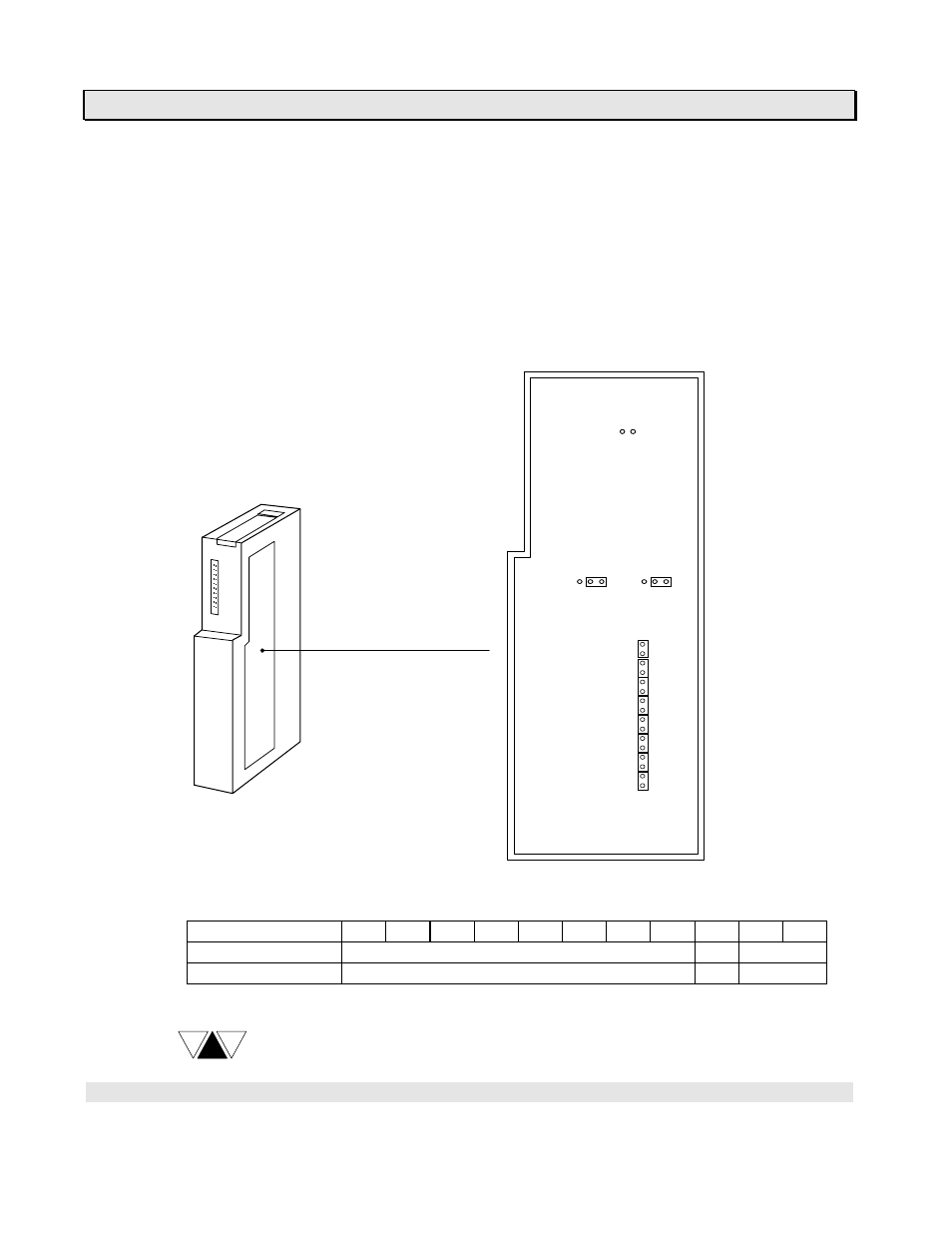

CD332 left side
Set these jumper plugs as follows.
Mode J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11
Normal mode ON (short) OFF B side
High speed mode OFF (open) OFF A side
B A
J9
J11 J10
J6
J4
J3
J2
J1
J5
J7
J8
B A
NOTE
(1) The factory setting is the normal mode.
(2) Use a pair of tweezers to set the jumper plugs.
(3) J9 must be always OFF (open).
