Assembly Section 2-17
ASSEMBLY

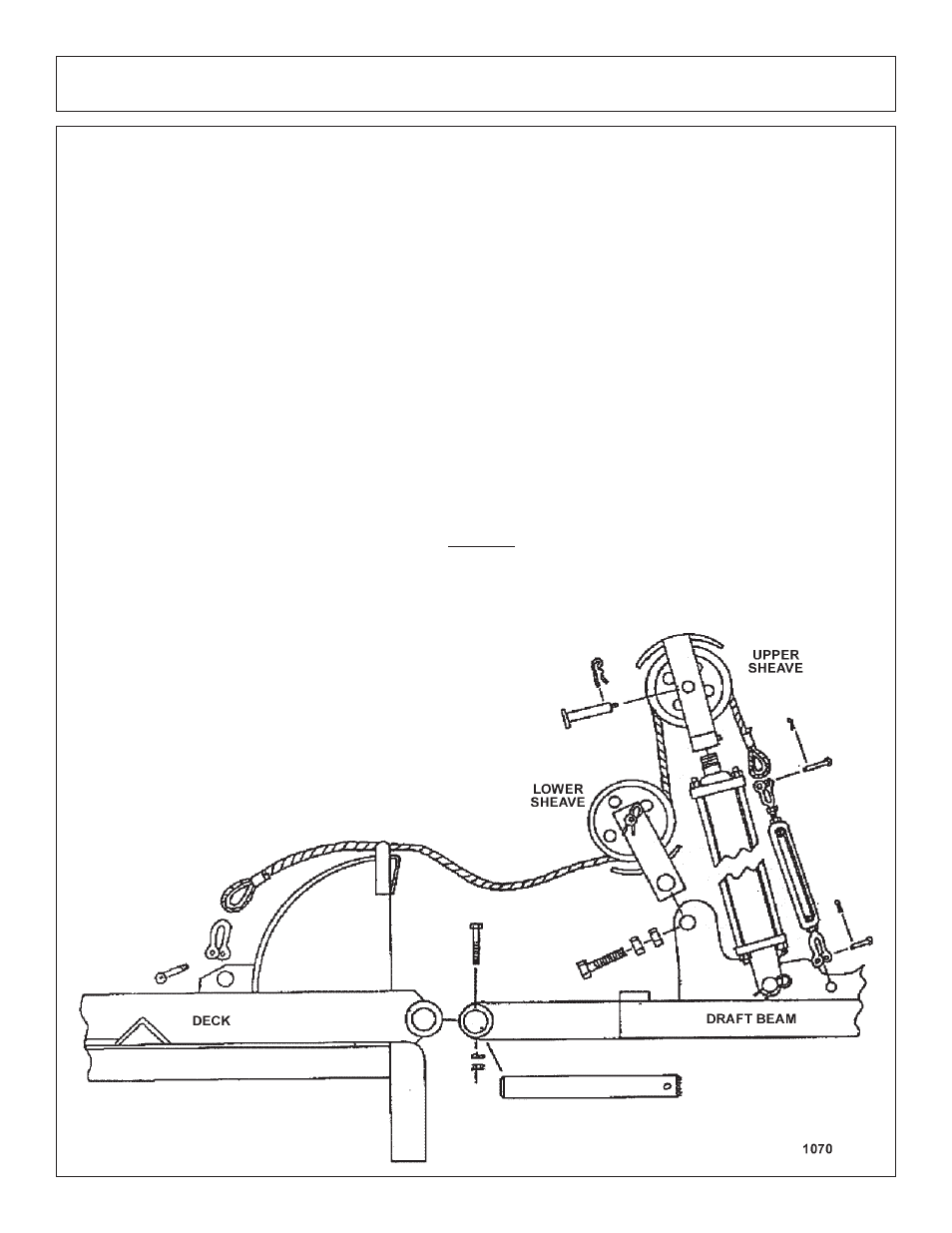

DECK MOUNTING AND LIFT ASSEMBLY
Install the upper sheave bracket on the outboard cylinder and tighten securely
against piston rod shoulder. Tighten the set screw, and align the draft beam.
Install the lower sheave bracket on the draft beam with a ¾” cap-screw and two
hex nuts as shown in the diagram on the next page.
Align the deck with the draft beam mounting hole and install the outer draft beam
pin. Align the holes in the draft beam pin with the holes in the boss and secure with
cap-screw, lock-washer and hex nut.
Pass the lift cable through upper sheave bracket and attach to turn buckle with
turn buckle pin and cotter key. Attach turn buckle to draft beam with turn buckle pin
and cotter key.
Place the cable in the upper sheave bracket with the cable on top of the wheel.
Secure wheel with sheave pin (with grease zerk) and R-clip. Place lift cable in lower
sheave below the wheel and install sheave with pin (with grease zerk) and R-clip.
Then install the
The cable can now be attached to the deck mounting bracket with the shackle.
Tighten shackle pin securely. NOTE: DO NOT tighten the turn buckle at this
time!
