– 27 –
Concealed Duct High Static Pressure
Installation Manual

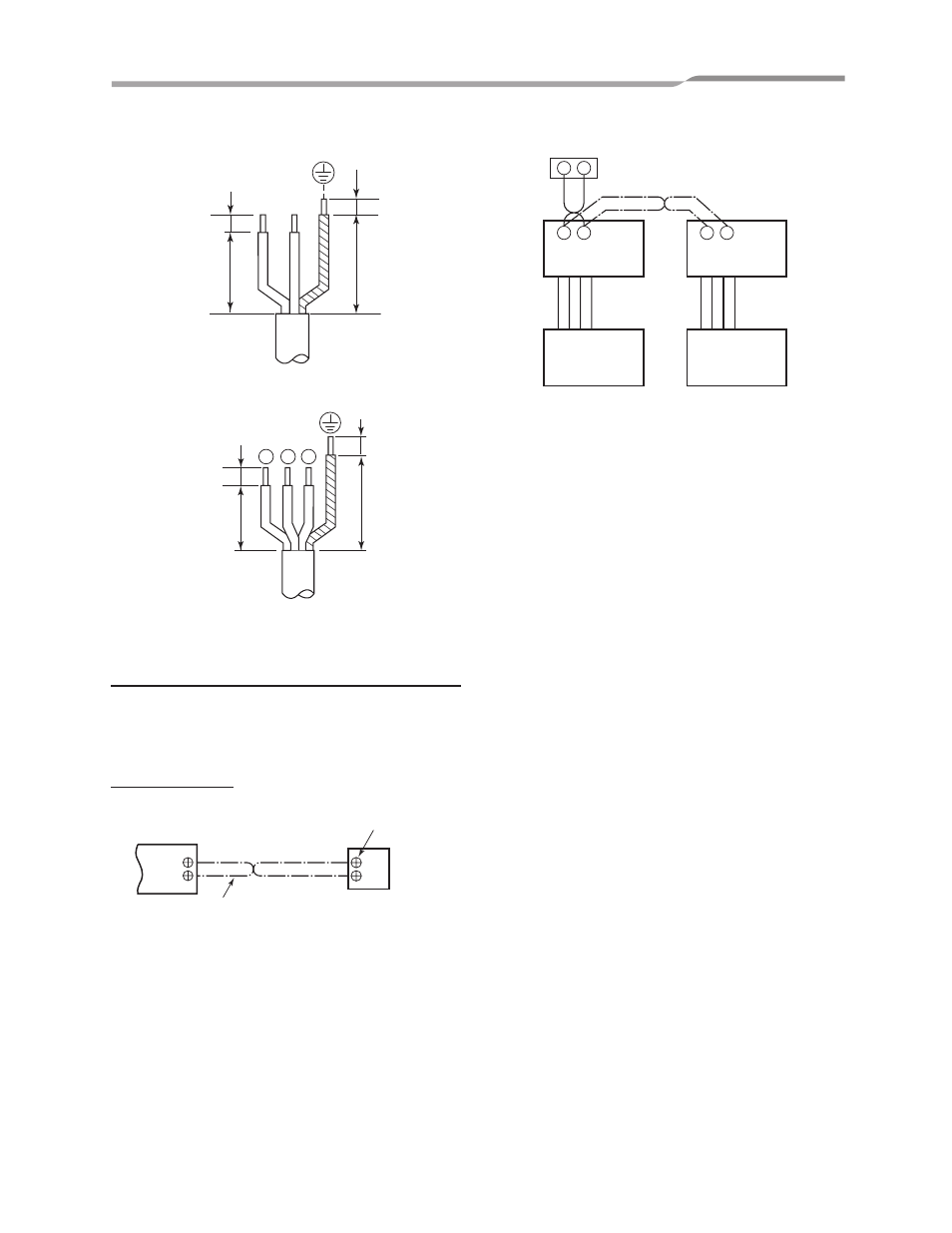

„ Remote Controller Wiring
• Strip off approx. 9mm the wire to be connected.
• Non polarity, 2 core wire is used for wiring of the remote
controller. (0.5mm² to 2.0mm² wires)
Wiring diagram
Group control
R (L)
10
40
10
30
S (N)
Indoor fan power supply wire
(Unit: mm)
10
30
10
40
3 2 1
System interconnecting wire
A
B A
B
Terminal block
Remote
controller
unit
Terminal block for
remote controller
wiring of indoor unit
Remote controller wire
(Locally procured)
A B A B
Outdoor Unit
Wired remote
controller
Outdoor Unit
Indoor Unit Indoor Unit
27-EN
