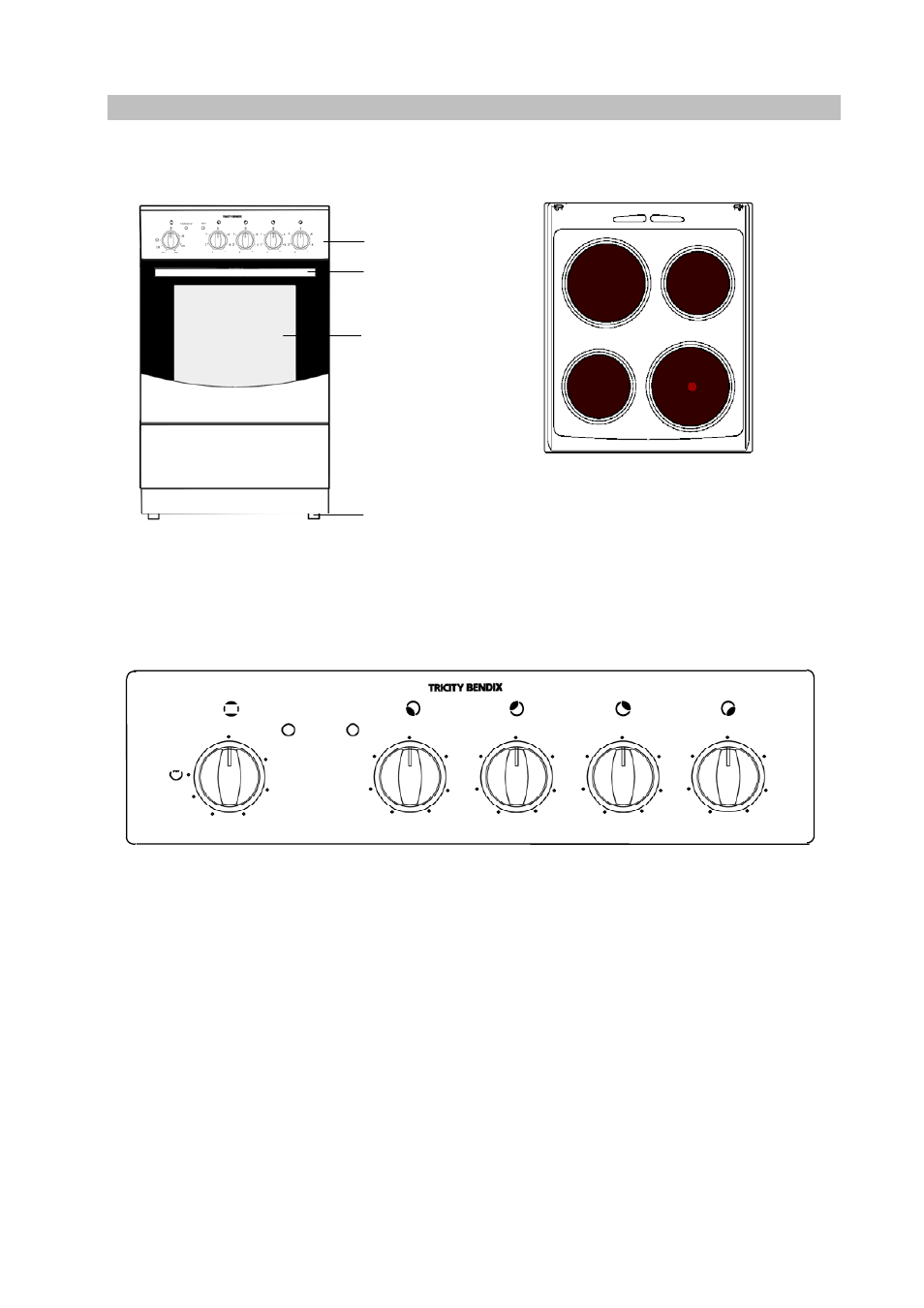

DESCRIPTION OF THE APPLIANCE
Control panel
Oven door
Door handle
Adjustable
small feet
Hob
1
2 3
4
1. Hotplate
∅ 145 – 1000W
2. Hotplate
∅ 180 – 1500W
3. Hotplate
∅ 145
– 1000W
4. Hotplate
∅ 180
– 2000W
Control panel
3 2 4 5 1 6 7
0
6
4 3
2
1
5
0
6
4 3
2
1
5
0
6
4 3
2
1
5
0
6
4 3
2
1
5
MAIN THERMOSTAT
250
200 150
100
50
0
SE210W
1. Oven function control knob
2. Oven thermostat pilot light
3. Main pilot light
4. Front left hotplate control knob
5. Back left hotplate control knob
6. Back right hotplate control knob
7. Front right hotplate control knob
