IMPORTANT SAFETY REQUIREMENTS
Important
This cooker must be installed in
accordance with the IEE Wiring Regulations
(Current Edition). Detailed recommendations
are contained in the following British
Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891
Current Editions.
LOCATION
The appliance must not be installed in a bed-sitting
room of volume less than 20m
3
or in a bathroom or
shower room. It is essential that the appliance is

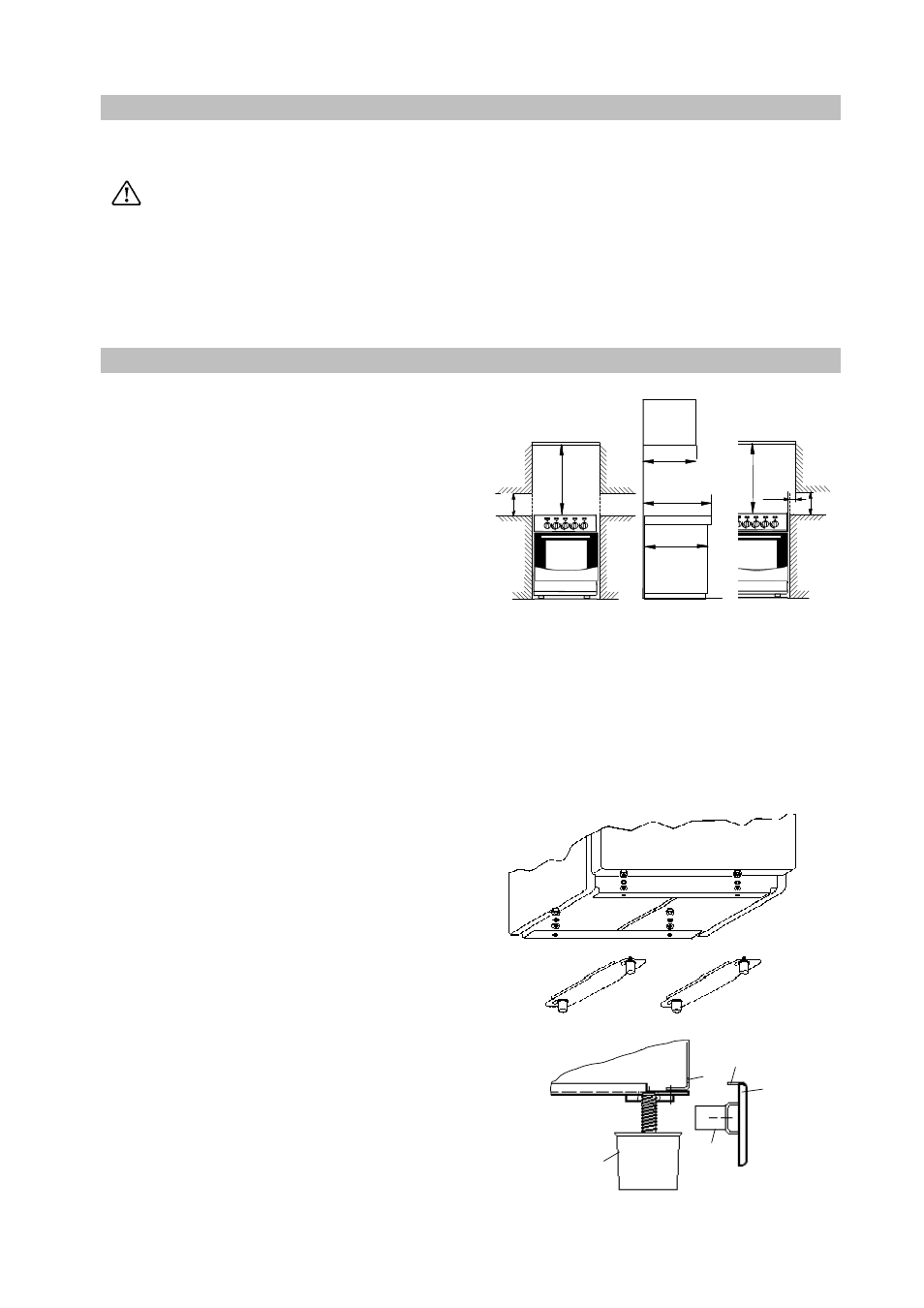

positioned as in the enclosed figure i.e. shelves,
wall cabinets and cooker hoods must be fitted a
minimum of 690mm directly above the top of
hotplate and 400mm above the hotplate when fitted
in line with the outside of the appliance. If the units
are intended to be fitted adjacent to the appliance
but less than 400mm above the hotplate, then a
minimum space of 100mm must be maintained
between the sides of the unit and the appliance
(see fig).
If fitted next to or between two base units a
minimum space of 1mm must be left between
each unit and the sides of the appliance. The
levelling feet fitted to the appliance will achieve a
nominal height to hotplate of 900mm+10mm.
The appliance must be installed in accordance
with EN 1116-1995, regarding the depth of the
superior furniture.
Levelling
Fix the support with two legs with the washer and
nuts, delivered with the cooker, see the figure.
• Unscrew the legs as far as possible (approx.
16mm from fully screwed in).
• Place the plinth (pos.3) so that the springs
(pos.2) reach the threaded area of the legs
and the clamp of the plinth (pos.4) is in front
of the holes (pos.5) on the under side of the
structure.
• Push the plinth towards the appliance with
both hands until the springs fasten on the legs
and the clamps go into the corresponding
holes.
• Adjust the legs as necessary.
690
400
min 600
max 400
min 570
6
90
less
40
100
C
21 3 45678
G
C
21 3 45678
G
1
3
2
5
4
